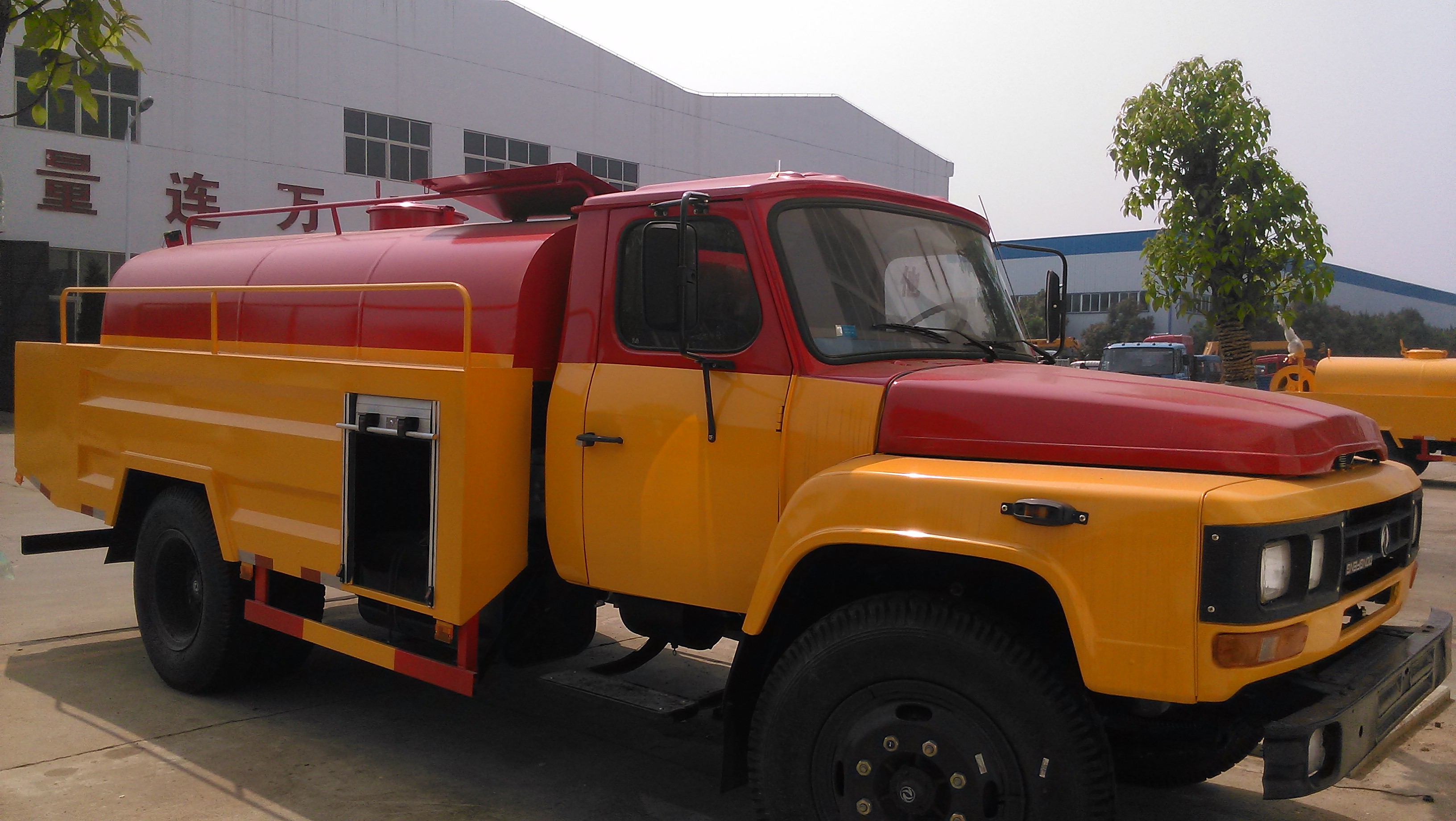

Dongfeng long head high pressure cleaning truck (1000 gallon to 1500 gallon)
|
|
Total mass(kg)
|
10450
|
Curb mass(kg)
|
5655
|
|
Rated mass(kg)
|
4600
|
Chassis model
|
EQ1100FKJ
|
|
Driver cab person
|
3
|
Max speed(km/h)
|
85
|
|
Approach/departure angle(°)
|
34/15
|
Front/rear suspension
|
1065/1935
|
|
Overall dimension(mm)
|
6950X2460X2650
|
Cargo body dimension(mm)
|
XX
|
|
Axles
|
2
|
Axle load(kg)
|
4360/6090
|
|
Tyre
|
9.00-20,9.00R20
|
Tyre nos.
|
6
|
|
Front tread(mm)
|
1810
|
Rear tread(mm)
|
1800
|
|
Wheelbase(mm)
|
3950,4200
|
Springs
|
9/11+8
|
|
Emission standard
|
GB17691-2005Euro Ⅲ,GB3847-2005
|
Fuel type
|
Diesel
|
|
Engine model
|
Manufacturer
|
Displacement
|
Power
|
|
YC4E140-31
YC6J160-33
YC4E140-33
|
Yuchai
|
4260
6500
4260
|
103
118
105
|
The dongfeng long head water truck, adopts dongfeng long head original chassis, there are three kinds engines can choose.
-
choosing YC6J160-33 ERG engine, long head 140 driver cab, 5 speed transmission, 2.8ton front bridge/8ton rear bridge, 9.00-20-12 nylon tyre, truck frame of 232 mm.
-
choosing YC4E140-31 SINGLE PUMP engine, long head 140 driver cab, 5 speed transmission, 2.8ton front bridge/8ton rear bridge, 9.00-20-12 nylon tyre, truck frame of 232 mm.
-
choosing YC4E140-33 EGR engine, long head 140 driver cab, 5 speed transmission, 2.8ton front bridge/8ton rear bridge, 9.00-20-12 nylon tyre, truck frame of 232 mm.
The volume of Dongfeng long head high pressure cleaning truck is 1000 gallon, adopts 3DS08/16 GYB-8/16high pressure pump, 3DS-8/16, GYB-8/16, the pressure: 16-19Mpa, the water flow: 8cbm/hour, hose length: 60m, etc.
