|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||in bulk package, waxed|
|Delivery Time:||35 days|
|Payment Terms:||T/T, L/C|
|Supply Ability:||20 units/month|
|Color:||Company/color Customized||Price:||Best Price With Competitive Price|
|Tank Volume:||40500L To 60,000L||Axles:||FUWA/BPW 2 Alxes/3 Axles|
hot sale FUWA 2 axles 40500L propane gas trailer, best price FUWA/BPW double axles 17tons road transproted lpg gas tank for sale
Manufacturer’s name: Chengli Special Automobile Co., Ltd.
Manufacturer’s aerial number: 781441823
Country of manufacture: China
Country of approval: China
Approval number(a): 4200800231
Year of Manufacture: 2016s
Water test Pressure: 2.22Mpa
External design pressure: 2.22Mpa
Water capacity of the tank at 20 ℃: 40.5m3
Equivalent thickness in mild steel: 12mm
Material of protective lining: Q345R
Maximum(allowable) working pressure: 1.61Mpa
Maximum permissible gross mass: 32665kg
Tare mass: 13415kgs
Metallurioal design temperature range if below, -50℃ or above +50℃: -50℃ to +50℃.
If you're interested in our lpg gas tank trailer, please send email to email@example.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
The main technical parameters of 2 axles 17tons lpg gas trailer as below
|Loading medium||LPG gas||Medium characteristic||flammable and combustible||Safety valve||1*DN100|
|Curb mass (kg)||13415||Tanker||Designed pressure(Mpa)||1.61MPa||
|Loading mass(kg)||17010||Filling ratio(kg/cbm)||420|
|Max total mass (kg)||30425||Tanker material||Q345R|
|Wheelbase(mm)||6720+1320||Tanker designed thickness(mm)||10.62|
|Front/rear suspension(mm)||-/1500||Head designed thickness(mm)||10.59|
|Overall dimension(L*W*H)(mm)||11324*2500*3730||Tanker body dimension(L*W*H)(mm)||2200*12*11054||Chengli Special Automobile Co., Ltd.|
40.5cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA double axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
More pictures of hot sale 17tons lpg gas trailer as below

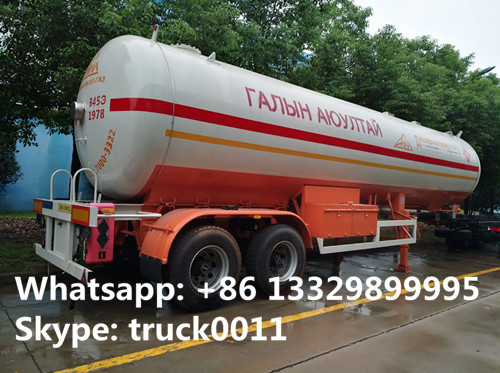

hot sale 17tons lpg gas trailer
best price 40.5m3 lpg gas trailer for sale
hot sale FUWA 2 axles 40500L propane gas trailer
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd. could offer bulk surface lpg gas storage tank, underground lpg gas storage tank,. Lpg gas trailer, lpg gas truck, skid lpg gas plant, etc. We can customize lpg gas pressure vessels. Recently, we have passed US ASME standard certificates. And our CLW brand lpg gas pressure vessels can be exported to USA, etc. More information, please feel free to contact with Ms. Anita.
More informaiton, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
