Factory selling Euro Ⅴ 12.5m3 farm-oriented and livestock poultry feed transported truck, China manufacturer of poultry feed truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer of bulk feed delivery truck, animal feed tanker truck in China since 2004s. With many years’ development, the animal feed tanker trucks manufactured by Chengli Special Automobile Co., Ltd. are with simple structure, reliable performance, large delivery amount, easy operation, etc. suitable for feed transporting of different sizes farms.
bulk feed tank delivery truck manufactured by our company is a kind of special transportation vehicle refitted on the second type chassis or the cargo trucks clients offered, then choosing the high quality and high strength carbon steel, welded the tank; equipped with electronic auger discharging system. Bulk feed tank is made up of chassis, loading feed pellet tank, discharging auger system and electro hydraulic operation system, etc.
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories.
If you're interested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/MOb.: +86 13329899995.
More pictures of hot sale FOTON AUMARK 12.5M3 animal poultry feed transported truck as below

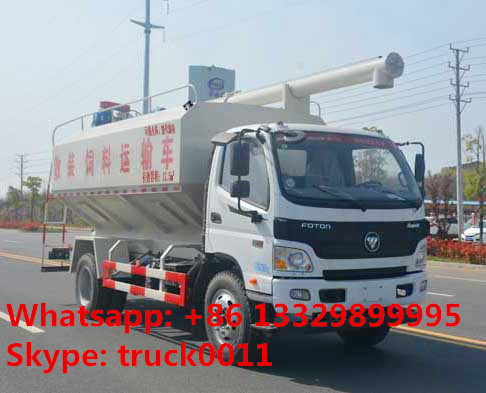

FOTON AUMARK 12.5m3 poultry feed transported truck for sale
electronic discharging way poultry feed truck
hydraulic discharging way animal feed transported truck for sale
main technical parameters of hot sale Euro Ⅴ 12.5m3 farm-oriented and livestock poultry feed transported truck for sale
| Product name |
FOTON AUMARK 12.5M3 farm-oriented poultry feed transported truck for sale |
| Overall dimension(L*W*H) |
7100X2210X3540 (mm) |
| Curb mass(kgs) |
5845kgs |
| Rated mass(kgs) |
5955kgs |
| Total mass(kgs) |
11495kgs |
| Truck chassis |
Truck model |
BJ5129XXY-F6 |
| Driving type |
4*2 LHD |
| Tires |
8.25R20 |
| Tread(front/rear) |
1710/1630 |
| Overhang(front/rear) |
1185/2115 |
| Approach/departure angle(°) |
28/15 |
| Max speed(km/h) |
95 |
| Mini ground clearance |
510mm |
| Axle load(kgs) |
4200/7795 |
| Driver seated person |
3 |
| Engine |
Engine model |
ISF3.8s5154 Euro Ⅴ |
| Manufacturer |
Cummins diesel engine |
| Engine type |
4 cylinders in line, water-cooling, intercooling, Electronically controlled high pressure common rail |
| Displacement |
3760ml |
| Fuel type |
Diesel |
| Rated power(KW)/revolving speed(r/min |
115/2600 |
| Max torque(N.m))/revolving speed(r/min) |
491/1200-1900 |
| Gearbox |
Manufacturer |
FOTON Automobiles |
| Type |
Manual mechanical |
| Model |
6 speed |
| Operation way |
Soft shaft operation |
| Forward gears Nos. |
6 |
| Suspension |
Steel spring leaf(front/rear) |
9/11+7 |
| Feed tank |
Manufacturer |
Chengli Special Automobile Co., Ltd. |
| Volume |
12.5m3 |
| Tank dimension(L*W*H) |
4600×2200×1950 |
| Thickness(mm) |
4mm |
| Discharging way |
Hydraulic discharging or electronic discharging |
| Full Discharging time |
≦15 min |
| Average discharging time |
≥500 |
| Surplus ratio |
0.25 |
| Working noise |
90DB(A) |
