    Product Details:

    Place of Origin: China
    Brand Name: ISUZU
    Certification: CCC, ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package, waxed
    Delivery Time: 209days
    Payment Terms: T/T, L/C
    Supply Ability: 20units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality Factory Direct Sale Price
    Truck Chassis: High Quality ISUZU Brand 4*2 LHD Diesel Truck Chassis

    The high altitude operation truck manufactured by Chengli Special Automobile Co., Ltd. can be designed and produced as 12m, 14m, 16m, 18m, 20m, 22m, 24m, etc. However, for the electronic power industry, the 14m bucket truck is enough. Dongfeng 14m high altitude operation truck is with 4 sets of H shape hydraulic outriggers, which can be elevating at the same time or independently. The outriggers and the working arms are interlocked, avoiding over operation, assuring the safety and reliability when operation. The high altitude operation trucks manufactured by Chengli Special Automobile Co., Ltd. can be operated up-down, choosing to install crane with the max loading capacity of 1,000kg. The working arms of CLW overhead working truck is with 3 sections knuckle boom, 360 degree full rotation, etc.



    1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.

    2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.

    3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.

    4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.



    5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.

    6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.

    7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.

    8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.



    If you're interested in our ISUZU brand aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.



    main technical parameters of ISUZU Brand 4*2 12-16m3 aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below

    Item Unit Specification
    Product name   high-altitude truck
    Chassis model   QL10703HWRY
      Gross weight kg 5660
    Curb weight 5335
    Overall dimension mm 7400×2000×3100
    wheelbase 3360
    Approach/departure angle ° 24/10
    Engine model   4JB1CN
    Engine manufacturer   Isuzu isuzu (chongqing) engine co., LTD
    Transmission   MSB 5 gears
    Cabin

    Double cab, luxurious interior trim and seat, with

    power steering,air conditioning, USB interface radio.

    Emission standard   Euro IV
    Displacement / Power ml/kw 2771/ 72
    Tire specification / Number pcs 7.00-16/6
    Max speed km/h 105
    Max working height m 16
    Rated platform load kg 200
    Rated manned platform man 2
    Slewing angle(Left,Right) ° 360
    Outrigger type / Q'ty pcs H-type, 4 pcs
    Remark The whole truck is operated through upper and lower hydraulic operation, equipped with hook.

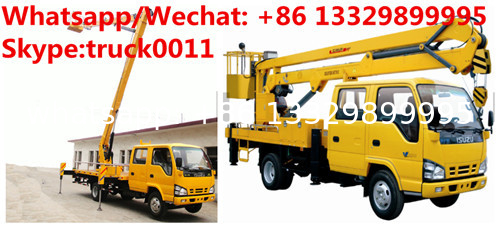

     More pictures of hot sale ISUZU 12-16m aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.

    Japan brand ISUZU 12M,14M,16M aerial working platform truck for sale, HOT SALE! best price ISUZU overhead working truck

    high quality and competitive price CLW brand aerial working platform truck for sale

    Japan brand ISUZU 12M,14M,16M aerial working platform truck for sale, HOT SALE! best price ISUZU overhead working truck

    HOT SALE!ISUZU 4*2 12M-16M high altitude operation truck

    Japan brand ISUZU 12M,14M,16M aerial working platform truck for sale, HOT SALE! best price ISUZU overhead working truck

    Factory customized ISUZU overhead working truck for sale

    Japan brand ISUZU 12M,14M,16M aerial working platform truck for sale, HOT SALE! best price ISUZU overhead working truck

    Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
