4*4 Mini Dump Truck is also called 4*4 Tipper truck, All Wheel Drive dump truck, etc, this type of truck adopt DONGFENG 4*4 chassis, can load 3ton sand, soil, rock, etc. It is one type of high quality and low price tipper truck.
Customized CLW mini 4*4 RHD dump truck, adopts single row reserved driver cab, 4*2 RHD driving type, 3300mm wheelbase, 5 speed transmission, 1058 front/rear bridge, CY4N2-A chaochai 58KW diesel Euro Ⅱ engine, 7.00 nylon tyre, air-conditioner, power steering with air cut braking, etc.
And the overall dimension of the CLW mini dump truck is 5650×2000×2380(mm), cargo body dimension is 3760×1880×600, adopting high quality GB carbon steel, 3mm thickness for side sheet and 4mm thickness for the bottom sheet, rear door opening and tipping, etc.

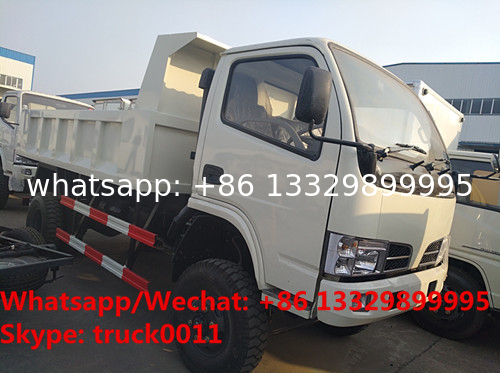

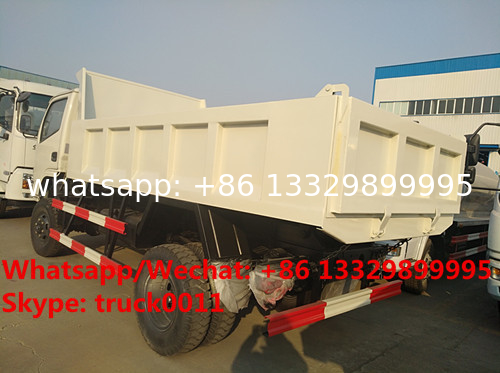

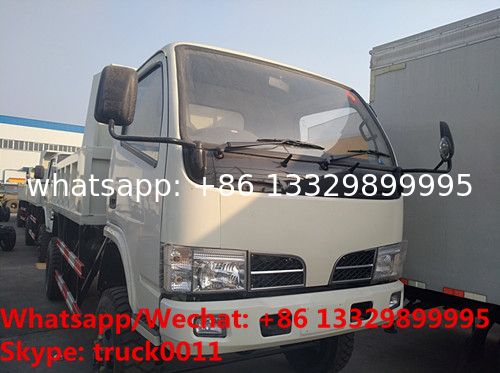

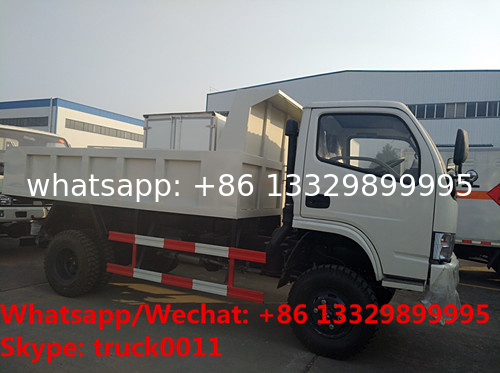

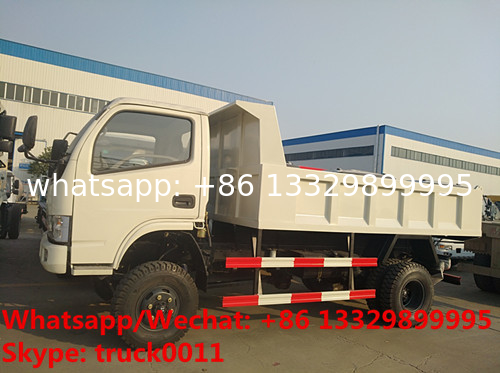

More pictures of customized CLW brand 4*4 RHD mini 3tons dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below
HOT SALE! CLW brand mini dump tipper truck for sale
high quality and competitive price CLW brand 4*4 RHD tipper truck for sale
cheaper price CLW brand diesel mini dump tipper truck for sale
main technical parameters of HOT SALE CLW brand mini 3tons 4*4 RHD dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below
| Main parameters |
| CLW brand 4*4 RHD mini dump tipper truck for sale |
| Total massKg) |
4495 |
Overall dimension(mm) |
5850×2100×2500 |
| Rated mass(Kg) |
1650 |
Cargo body dimension(mm) |
3700×1800×600 |
| Curb mass(Kg) |
2715 |
Dump box body cubage(m3) |
4m3 |
| Driver cab person |
2 |
Max speed(km/h) |
67.6 |
| Approach/departure angle(°) |
27/20 |
Front/rear suspension(mm) |
1318 |
| Steel spring |
9/11+7 |
wheelbase(mm) |
3300 |
| Tire specification |
7.00-16 |
Tires nos. |
6 |
| Front tread(mm) |
1485 |
Rear tread(mm) |
1530 |
| Driver cab |
Dongfeng 4*4 RHD reversible single row driver cab |
Power steering |
Yes |
| Air cut brake |
Yes |
Air conditioner |
No, choose to install |
| Engine |
| Engine model |
Manufacturer |
Displacement(ml) |
Power(KW) |
| CY4N2-A |
Chaochai diesel engine |
3707 |
58 |
| Emission standard |
Euro Ⅱ |
Fuel type |
Diesel |
| Dump box body |
| Dump tipper box body dimension(L*W*H)(mm) |
3760×1880×600 |
Material |
High quality GB carbon steel material |
| Bottom steel thickness |
4mm thickness |
Side steel sheet |
3mm thickness |
| Opening way |
Rear door opening and tipping |
Tipping |
Middle installed double hydraulic cylinders lifting and tipping |
