At present, Chengli Special Automobile Co., Ltd. can design and produce whole bulk feed truck and also bulk feed tank (mounted on cargo truck). And according to the driving model, the bulk feed pellet trucks can be divided into electronic discharging bulk feeds truck, hydraulic discharging feed pellet truck and Gas discharge bulk feed transportation truck. We can design and produce various tonnage bulk feeds trucks upon request.
The bulk feed tank volume is 20cbm(can be loaded 10on feeds according to the density of the bulk feeds), adopting electronic auger type transferring feeds, putting on 380 Volt three mutually alternate current, then working. Discharging is by electronic motor driven the screw mechanism with high speed, continuous working, highly improving the working productiveness.
The feed tank is usually with 3 compartments, loading and discharging with three different kinds feeds. Simple unit-structures and electric cabinet unity is at the rear part of the tank. The bulk feed truck is easy and flexible to operate and maintenance.
main technical parameters of CLW brand 20m3 bulk feed tank container mounted on cargo truck manufactured by Chengli Special Automobile Co., Ltd. as below.
|Volume||20 cubic meters|
|Loading capacity (kgs)||About 10tons(according to the density of the feed)|
|Feed tank dimension(L*W*H) (mm)||6010×2300×1900mm(can be designed to load into 40’ container)|
|Discharging way||Electronic system discharging(3 phase 380Volts)|
|Compartments||3 compartments for 3 different feeds|
|Discharging auger length||6.85m|
|Average discharging speed(kg/min)||510-560|
|Full discharging time (minutes)||16 to 20|
|Rotation angle of auger when discharging||±180 degree|
|max elevation angle of auger when discharging||60 degree|
|Delivery distance||Horizontal max range(m)||6.5|
|Vertical max range(m)||8.2|
|Residual rate||No more than 0.10|

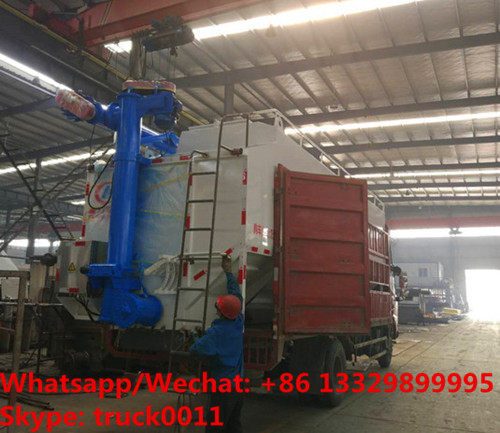

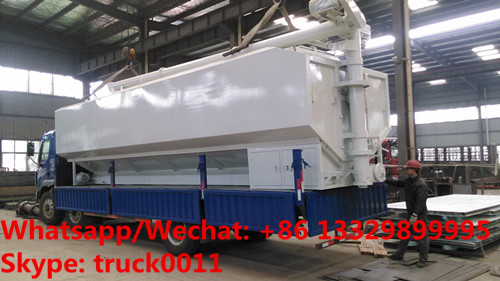

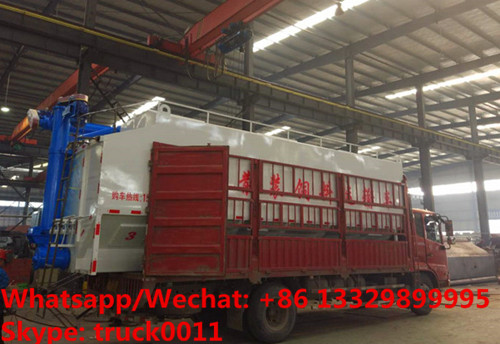

More pictures of CLW brand 4*2 LHD 20m3 bulk feed tank container mounted on cargo truck as below.
HOT SALE! CLW brand bulk feed pellet tank container mounted on cargo truck for sale
High quality and competitive price CLW brand animal feed delivery truck for sale
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories. More information, please feel free to contact with Ms. Anita Deng.
