cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

    • cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane
    • cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane
    • cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane
    • cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane
  • cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

    Product Details:

    Place of Origin: China
    Brand Name: SINO TRUK
    Certification: CCC, ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package, waxed
    Delivery Time: 20 days
    Payment Terms: T/T, L/C, L/C
    Supply Ability: 20units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality And Competitive Price
    Truck Chassis: Chinamade SINO TRUK WANGPAI Diesel Truck Chassis

    cheapest price SINO TRUK WANGPAI brand 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, hot sale cargo truck mounted with crane



    Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,folding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane,new forland lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom truck cranes sale,etc.



    A crane mounted on a truck carrier provides the mobility for this type of crane. This crane gas twp parts: the carrierm which offer to be offered as the lower; while the lifting component which includes the boom refered as the upper. These are mated together through a turnable, allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single-engine machines, with the same engine powering the undercarriage and the crane boom. THe upper is usually powered via hydraulics run through the turnable from the pump mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down to the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own. Many older operators favor the two-engine system due to leaking seals in the turnable of aging newer design cranes.



    If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995



    Customized SINO TRUK WANGPAI BRAND 5T truck with crane adopts SINO TRUK Wangpai 2100mm driver cab, 3900mm wheelbase, yunnei YNF40E2 160hp diesel Euro 5 engine, 9 speed manual gearbox, 9tons rear axle, 825R20 rail tires, etc.



    The cargo body dimension of SINO TRUK WANGPAI 160hp 5tons truck with crane is 4300,4500×2100,2200×600(mm); while the overall dimension of the truck mounted on crane is 7330×2260,2360×3500,3600(mm). Client chooses to install CLW brand 5tons telescopic crane boom.

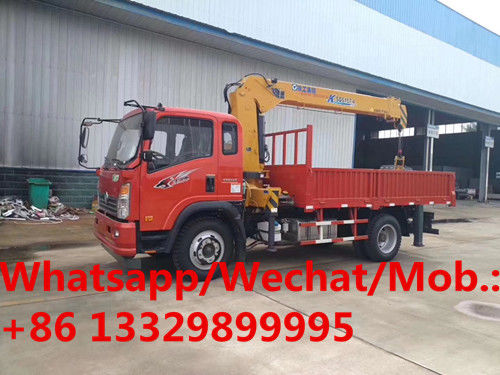

    cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

    cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

    cheapest SINO TRUK WANGPAI 4*2 LHD 5tons telescopic crane boom mounted on truck for sale, truck mounted with crane

    The specification of SINO TRUK WANGPAI 5tons truck with crane as below

    Product name SINO TRUK WANGPAI 4*2 LHD 5tons telescopic boom mounted on truck for sale
    Chassis type CDW1090HA1R5
    Parameters O1verall dimension length/width/height (mm) 7330×2260,2360×3500,3600(mm)
    Cargo body dimension (L*W*H)(mm) 4300,4500×2100,2200×600
    GVW(kg) 9495 (Kg)
    Kerb Mass(kg) 7450 (Kg)
    Rated mass(kg) 1850 (Kg)
    Approach angle/ Departure angle(mm) 24/15 (°)
    Front suspension/rear suspension(mm) 1285/2145
    Fuel Type diesel
    Max Speed 90
    Engine Type YNF40E2
    Displacement/Power(kw) 3920ml/115KW/160hp
    Manufacturer YUNNEI
    Chassis Drive Type 4×2
    Wheelbase(mm) 3900
    Tread(front/rear) 1750/1650 (mm)
    Transmission 9 speed gearbox, manual
    Braking system Air braking
    Cab SINO TURK WANGPAI Light duty 2100mm single row driver cab
    Number of spring axle(front/rear) 11/11+99/12+9
    Tire Type 8.25R16
    Front axle/rear axle 9tons rear axle
    Air-condition Choose to install
    Upper part(cargo van and crane boom) main parameters

    Cargo body dimension

    Material

    Side sheet thickness

    Bottom sheet thickness

    Painting

    Crane boom main parameters

    Crane boom

    Rotation

    The color of the whole truck is upon request.

    4300,4500×2100,2200×600
    Carbon steel
    2mm thickness
    2mm thickness
    Upon request

    Choose to install CLW brand 5tons crane boom
    Full hydraulic, full rotation
