HOT SALE! ISUZU 10-14m hydraulic overhead working platform truck for sale, Best price high altitude operation truck for sale
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.
If you're interested in our aerial working platform truck, please send email to truck0011@163.com; or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.

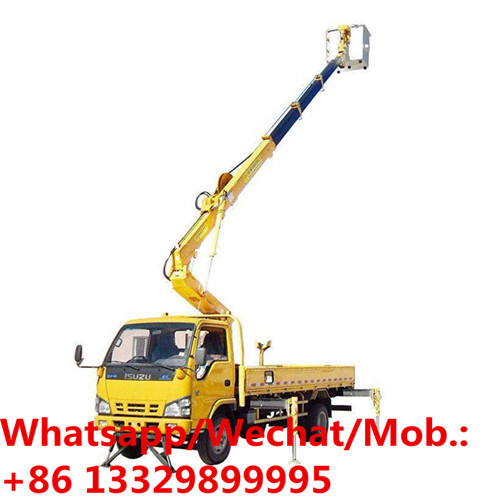

More pictures of ISUZU brand aerial working platform truck as below.
main technical parameters of ISUZU brand aerial working platform truck as below.
|
Vehicle parameters
|
|
|
Vehicle Model
|
CLW5065JGKQ51
|
Vehicle Brand
|
CLW
|
|
|
Overall dimensions
|
7260×1990×3140mm
|
Curb weight
|
4365kg
|
|
|
Chassis parameters
|
|
Chassis model
|
QL10703HWRY
|
Chassis brand
|
ISUZU
|
|
Overall dimensions
|
5900×1880×2220mm
|
Wheel base
|
3360mm
|
|
Front/rear wheel track
|
1504/1425mm
|
Front/rear suspension
|
1015/1525mm
|
|
Approach/departure angle
|
24/16°
|
Maximum speed
|
105km/h
|
|
Chassis Manufacturer
|
QingLing Motors (Group) Co., Ltd.
|
|
Cab
|
Configuration
|
100P, single row cab, allowable 2 passengers,car interior, air conditioner, USB radio interface, with oil brake vacuum booster
pump
|
|
Color
|
Yellow, other color is optional
|
|
Engine
|
Model
|
4JB1CN
|
|
Emission
|
Euro 4
|
|
Type
|
4 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,4-valve ,diesel engine
|
|
Rated power
|
98hp,rated power speed 3400rpm
|
|
Displacement
|
2771ml
|
|
Manufacturer
|
Isuzu Engine (Chongqing) Co., Ltd.
|
|
Tire
|
Size
|
7.00-16 10PR nylon tire
|
|
Number
|
6+1 nos
|
|
Front axle
|
2.5 tons
|
|
Rear axle
|
4.8 tons
|
|
Drive form
|
4X2
|
|
Suspension
|
Multi leaf springs
|
|
Rated voltage
|
24V,DC
|
|
Transmissions
|
Isuzu MSB five speed transmission,5 speed forward 1 reverse.
|
|
Steering device
|
Power assisted steering
|
|
Steering wheel
|
Left hand drive
|
|
If there is a slight change in the chassis parameters above,please take the actual product as the standard
|
|
Aerial work truck structure parameters
|
|
Max operation height
|
12.0m
|
Max working platform height
|
10.0m
|
|
Max rotation angle
|
360°
|
Working platform rated loading
|
200kg
|
|
|
|
Color and Logo
|
Optional
|
|
Standard configuration
|
Chassis,sub frame,working bucket, hook, four legs, van body, up and down operation, hydraulic control, three knuckle arms,
360°rotation angle, with ABS.
|
