customized Dongfeng D9 5tons cargo truck with crane for Phillipines, Good price mobile telescopic crane boom mounted on cargo truck for sale
DONGFENG D9 5T cargo truck with crane, adopts dongfeng D9 one row and a half D9 luxurious driver cab, 3950mm wheelbase, 9.00R20 rail tires, fastgear 8 speed gearbox, 5T front axle/10T rear axle, 250mm double layers boom, etc.
And the cargo body box dimension (L*W*H): 4500×2350×550,600(mm); and the overall dimension(L*W*H) of dongfeng D9 cargo truck with crane is 7500×2500×3600(mm).
Clients choose to install high quality CLW/XCMG brand 5tons telescopic crane boom mounted on dongfeng D9 cargo truck.
Main technical parameters of Dongfeng D9 170hp diesel 5tons cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name |
Dongfeng D9 190hp diesel 5tons telescopic crane mounted on truck for sale |
| Chassis type |
EQ1185 |
| Parameters |
Overall dimension length/width/height (mm) |
7500×2500×3600 |
| Cargo body dimension (L*W*H)(mm) |
4500×2350×550,600 |
| GVW(kg) |
15800 (Kg) |
| Kerb Mass(kg) |
10500 (Kg) |
| Rated mass(kg) |
7305(Kg) |
| Approach angle/ Departure angle(mm) |
19/11 (°) |
| Front suspension/rear suspension(mm) |
1260/2640 (mm) |
| Fuel Type |
diesel |
| Max Speed |
105 |
| Engine |
Type |
B170 33 |
| Displacement/Power(kw) |
5900ml/125KW/170hp |
| Manufacturer |
Dongfeng Cummins Engine Co.,Ltd |
| Type |
6-in-line inter-cooling; intercooling |
| Chassis |
Drive Type |
4×2 |
| Wheelbase(mm) |
3950 |
| Tread(front/rear) |
1862/1806 (mm) |
| Transmission |
Fastgear 8 speed transmission |
| Braking system |
Air braking |
| Cab |
Dongfeng D9 one row and a half driver cab |
| Number of spring axle(front/rear) |
8/10+7 |
| Tire Type |
9.00R20 tires |
| Air-condition |
Choose to fix |
| Upper part(cargo van and crane boom) main parameters |
| Upper body |
Cargo body dimension |
4500×2350×550,600 |
| Material |
Carbon steel |
| Side sheet thickness |
2mm thickness |
| Bottom sheet thickness |
3mm thickness |
| Painting |
Upon request |
| Crane boom main parameters |
| Crane boom |
Choose to install XCMG brand 5tons 3/4 sections telescopic crane boom |
| Lifting height |
10.5m/12.5m |
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

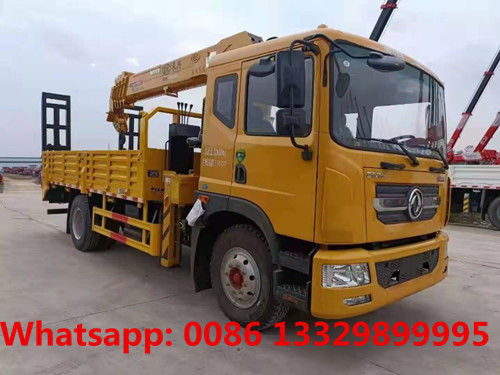

More pictures of dongfeng D9 5T telescopic crane boom mounted on cargo truck is as below.
