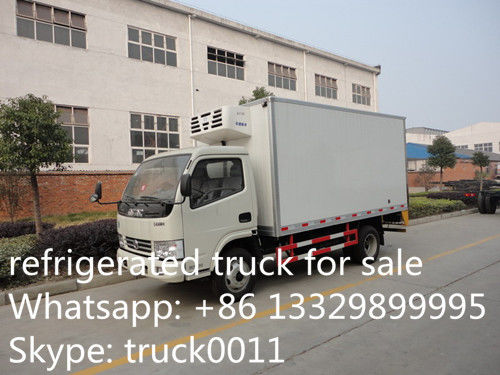

dongfeng 5 ton van truck with cooling unit for sale, high quality CLW brand 3tons-5tons refrigerator truck for sale
1 Mainly used for transport offresh meat,vegetables,seafood ,medicinesand so on .
2Van Material:Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel,
Q235 steel sheet or aluminum are all optional.
3Refrigerators chosen brand from:South koreanHanya,HuaSu;AmericanThermoking,Carrier;Chinese HANXUE, Kingbo, etc
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If you're interested in our refrigerated truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
More pictures of refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Product Description of dongfeng 3-5tons cold room truck for slae
|
REFRIGERATORTRUCK
|
|
#
|
Descriptions
|
Specifications and types
|
|
General
|
Truck Brand
|
Chengliwei(our brand)
|
|
Chassis Brand
|
DONGFENG
|
|
Approx. Dimension
|
5600*1920*2800mm
|
|
GVW./Kerb Wt.
|
5495/2565kg
|
|
Cab
|
Cab Capacity
|
2persons' seat
|
|
Air Conditioner
|
Air Conditioner is optional
|
|
Chassis
|
Drive Type
|
4X2,left hand drive
|
|
Fuel Type
|
Diesel
|
|
Engine Make & Model
|
YUCHAI ENGINE
|
|
Power
|
90Ps /66KW
|
|
Displacement
|
2659ml
|
|
Emission Standard
|
EURO II orEURO IIIor EURO IV
|
|
Wheelbase/No.of axle
|
3000mm / 2
|
|
Tyre Specfication
|
7.00-16,6.50-16,7.00R16,6.50R16
|
|
Tyre Number
|
6 tyres and 1 spare tyre
|
|
Max Speed
|
95km/h
|
|
Paint
|
Automative metallic paint
|
|
Cooling box dimensions
|
3650*1800*1750 mm
|
|
|
Cooling box material
|
FRP inside & outside of the van, polyurethane as
the insulation
|
|
|
Back Door
|
Hinged door
|
|
|
Side door
|
Optional
|
|
Temperature Range
|
refrigeration temperature reached -18°C to 0°C
Optional -10°C to 0°C,-18°C to 5°C ,-20 to 30°C,etc
Other spares like hooks, bottom slot, shelves,extra doors, etc.optional.
|
The above information is for reference only. We can produce according to your needs so, If you have any
questions you can contact me at any time.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator truck, insulation body truck, reefer van truck, freezer van truck, etc. in China. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could produce and supply high quality and competitive ISUZU refrigerated truck, dongfeng refrigerator truck, FAW freezer van truck, Foton reefer van truck, JAC insulation body truck, JMC refrigerated truck, refrigerated van semitrailer, etc. And the cooling units of the refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. can choose China faous brand or exported ones, and the temperature in the insulation body can be adjusted from -5 degree to -18 degree.
