hot sale dongfeng dalishen sand and coal transported vehicle, dongfeng 6*4 heavy duty dump tipper truck for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
main parameters of hot sale Dongfeng Engineering Dump Truck
|
Truck
|
Dimension
|
Overall dimension L*W*H(mm)
|
8020×2480×3220
|
|
|
Inner Dimension of cargo body(mm)
|
5500×2300×1500
|
|
|
Wheel Base (mm)
|
3800+1350
|
|
|
F/R tread (mm)
|
1986/1860
|
|
|
Appr./Depa. angel (°)
|
32/36
|
|
|
weight
|
Curb (kg)
|
11305
|
|
|
Rated Payload(kg)
|
21000-30000
|
|
|
|
|
|
|
|
|
|
G.V.W (kg)
|
26500
|
|
|
Max. speed (km/h)
|
78
|
|
|
Max. gradeability (%)
|
25
|
|
|
Ground clearance (mm)
|
237
|
|
|
Engine
|
Type
|
inline six cylinders,air-cooled,turbocharged
|
|
|
Model
|
L375 30
|
|
|
Manufacturer
|
Dongfeng commins engine Co.,Ltd
|
|
|
(ml
Displacement (ml)
|
8300
|
|
|
Fuel sort
|
Diesel
|
|
|
(KW/r/min)
Max. Power/Speed
|
275(KW) /2200(rpm)
|
|
|
(Nm/r/min)
Max. torque/ engine speed
|
1125(N.m) /1200~1400(rpm)
|
|
|
(mm*mm)
Bore/ stroke (mm)
|
114×135
|
|
|
Compression ratio
|
18:01
|
|
|
Emission Level
|
Euro III
|
|
|
Cab
|
Model
|
TJG160
|
|
|
Type
|
Flat Head ,one and half Row
|
|
|
Cab Allowed Capacity
|
3 persons
|
|
|
Number of Seat
|
3
|
|
|
Air condition
|
With airconditioner
|
|
|
Number of Door
|
2
|
|
|
Chassis
|
Model
|
N/A
|
|
|
Driving from
|
6×4
|
|
|
Number of axles
|
4
|
|
|
Rim/Tire Type
|
11.00R20
|
|
|
Number of Tires
|
10
|
|
|
Clutch
|
Friction Plates Outer Diameter
|
Φ420mm
|
|
|
Gearbox
|
Model
|
9 speed
|
|
|
Type
|
Manual
|
|
|
Forward Gear
|
9
|
|
|
Steering
|
Steering Mode
|
Steering Wheel(Left-hand driving)
|
|
|
Front Axle
|
Model
|
7T
|
|
|
Rear Axle
|
Model
|
13T*2
|
|
|
Suspension
|
Front Axle
|
Type
|
Multi-spring leaf
|
|
|
No of Spring leaf
|
8
|
|
|
Rear Axle
|
Type
|
Multi-spring leaf
|
|
|
No of Spring leaf
|
8/10
|
|
|
Chassis Frame
|
cross-section
|
300×90×[8+8] mm
|
|
|
A/C
|
Air conditioner option
|

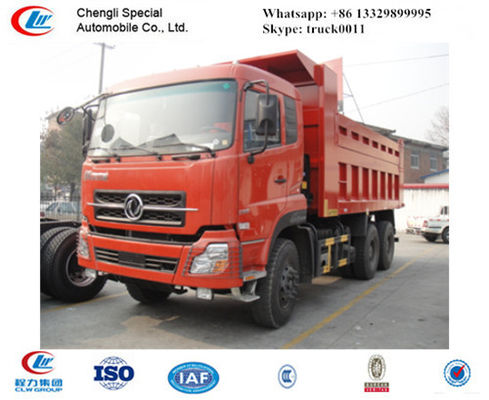

More pictures of dongfeng dalishen heavy duty dump truck as below.
