Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO 9001, CCC |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package |
Delivery Time: | 35 days |
Payment Terms: | T/T, L/C |
Drive Wheel: | 6x4 | Capacity (Load): | 21 - 30t |
---|---|---|---|
Horsepower: | 251 - 350hp | Transmission Type: | Manual |
Emission Standard: | Euro 2 | Fuel Type: | Diesel |
Engine Capacity: | 4 - 6L | Color: | Differnet Color Upon Request |
Price: | High Quality Factory Direct Sale Price | Truck Chassis: | SINO TRUK HOWO Brand 6*4 LHD Truck Chassis |
SINO TRUK HOWO brand LHD 6*4 30tons dump tipper truck fpr sale, hot sale best price HOWO brand 25tons-3tons tipper truck
More pictures of hot sale SINO TRUK HOWO brand 6*4 30tons dump tipper truck manufactured by Chengli Special Automobile Co., Ltd. as below.

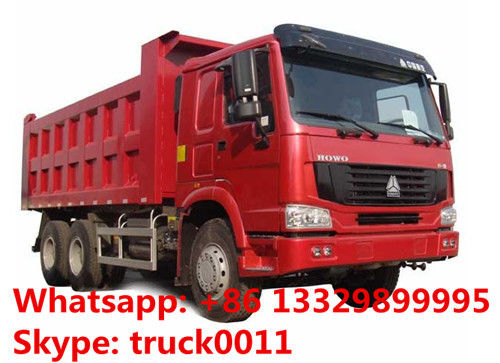

HOWO 6*4 dump truck for sale
If you're interested in our dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Main parameters of HOWO 6*4 30ton sand and stones dump tipper truck as below.
Model |
HOWO 76 Standard Cab with one sleeper, A/C is fitted; |
|
Vehicle Main Dimensions |
(L x W x H)mm |
7934x2496x3400 |
Wheel base (mm) |
3225+1350 |
|
Wheel track (front/rear) (mm) |
1500/1859 |
|
Approach/Departure angle(°) |
19/24 |
|
Weight in KGS |
Tare Weight |
12680 |
Loading Capacity |
28320 |
|
Front axles loading capacity |
HF9 1x9000 |
|
Rear axles loading capacity |
HC16 2x16000 |
|
Max. driving speed(km/h) |
75 |
|
Engine |
Brand |
Sinotruk |
Model |
WD615.69 |
|
Type |
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Horse Power(HP) |
336HP |
|
Emission standard |
Euro Ⅱ |
|
Gearbox |
HW19710, 10 forwards & 2 reverse |
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
Steering Gear |
ZF 8098,power steering, hydraulic steering with power assistance |
|
Fuel tank (L) |
350 |
|
Tire |
12.00R20 All steel radial tire , 11 pieces including one spare tire |
|
Brakes |
Service brake: dual circuit compressed air brake |
|
Dump Box |
||
Hydraulic System |
T-type middle lift or Front tipping |
|
Length |
4.8-5.6m or 5.2-6.4m |
|
Material |
Q235/Q345/610L/Q700 |
|
Thickness |
Side/Bottom 6/8 mm |
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
More information, please feel free to contact with Ms. Anita Deng.
