dongfeng tianjin 170hp 12cbm bulk feed delivery truck for sale, electronic system poultry feed pellet transportd truck for sale
CLW brand livestock and poultry feed truck for sale
1, Electronic motor doesn’t work
Removals: Check three-phrase connected, and reach to 380Volts electronic pressure;
Check Whether the electronic motor ok;
Check whether the control buttons and AC (alternating current) contactor ok or bad contact;
2, Electronic motor get stuck
Removals: auger inner blocked, open the accessing opening, clean out the feeds blocked the auger;
there is object inside the auger, open the accessing opening to clean out objects.
Auger bearing burn, change burn bearing and assure in normal lubrication.
3, Auger blocked
Discharging not in turn or large opening of discharging port, adjust the opening degree of discharging port appropriately to discharge the feed of different compartments in turn;
Wrong auger rotation direction, adjust exchange-phase knob or the connecting line order of the electronic motor to make sure the auger rotation direction is the outlet direction;
The loading feed is unsuitable for auger outlet
Lower voltage;
Voltage lack of phase
AC contactor bad contact
Electronic damage
4, Outlet auger cannot lif
Removal: Hydraulic motor without start;
The direction of the hydraulic motor is opposed;
The output pressure of the hydraulic pump not enough, then adjust pressure knob at the hydraulic valve to enlarge the output pressure;
Electronic units bad contact or damaged,
Hydraulic valve stuck, clean the hydraulic valve and change the hydraulic oil.
If you're interested in our poultry feed truck, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.

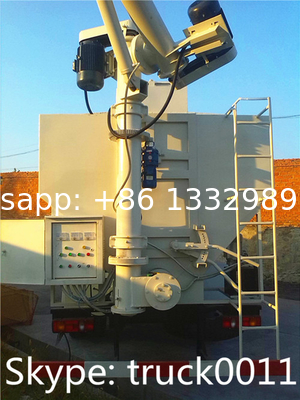

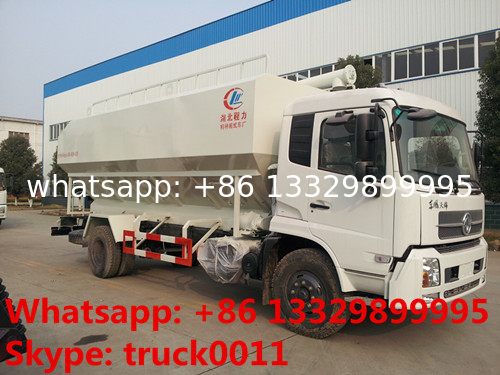

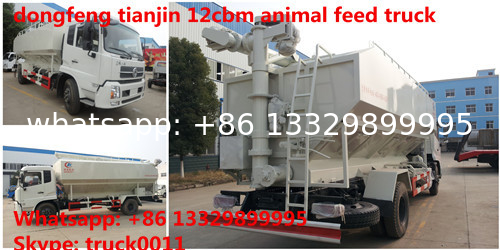

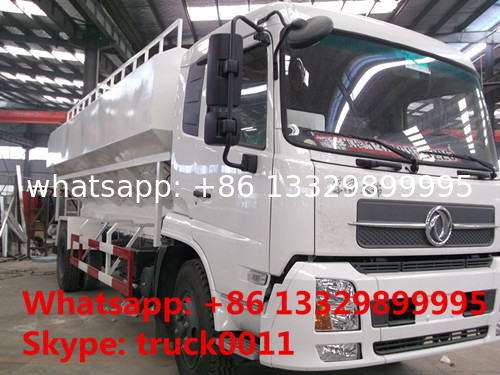

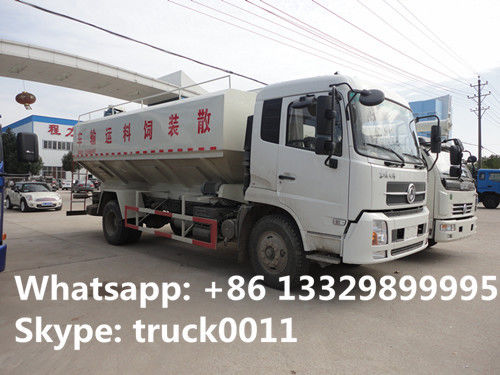

More pictures of hot sale dongfeng tianjin small 12m3 feed truck for sale as below
dongfeng tianjin feed delivery truck for sale
The main parameters of hot sale Euro 3 dongfeng tianjin 12m3 animal feed delivery truck as below
|
Euro 3 dongfeng Tianjin 12cbm bulk feed truck
|
|
Product name
|
Bulk feed transportation truck
|
Overall dimension(L*W*H)
|
7700×2500×3550(mm)
|
|
Tank volume
|
12m
|
Compartments
|
2 compartments with 2 different feeds
|
|
Discharging speed
|
400-500KG/min
|
Tank dimension
|
|
|
discharging rotation angle
|
±180 degree
|
Total mass
|
12490 (kg)
|
|
dischargingmaxangle of elevation:
|
60 degree
|
Rated mass
|
5990 (kg)
|
|
horizontal distance of supplying
|
6.1m
|
Curb mass
|
6305 (kg)
|
|
Vertical distance of supplying
|
7.6m
|
Max speed
|
85 (km/h)
|
|
Remark
|
1, the tank material adopts high quality carbon steel, equips with high quality electronic auger, 12m discharging all.
2,The feed tank is with 2compartments to load 2 kinds of feeds with separate discharging operation system.
3, Sealed transportation and reducing wastage, saving manpower and bag price, easy operation and maintenance.
5, Low centre of gravity, reliable loading and discharging, good appearance with high quality
|
|
CLW5161ZSLD3 bulk feed truck chassis
|
|
|
Chassis model
|
DFL1120B1
|
Fuel type
|
Diesel
|
|
|
Axle nos.
|
2
|
Emission standard
|
Euro 3
|
|
|
Tyre nos.
|
6
|
Tyre specification
|
9.00-20
|
|
|
Engine
|
Cummins 170hp
|
Wheelbase
|
3800
|
|
|
Chassis remark
|
Tianjin flathead luxurious driver can with sleeper, Cummins 170hp diesel engine, dongfeng 6 speed transmission, 9.00-20 tyre
|
|
|
Average discharging speed(kg/min)
|
510-560
|
|
|
Rotation angle of auger when discharging
|
±180 degree
|
|
|
max elevation angle of auger when discharging
|
70 degree
|
|
|
Delivery distance
|
Horizontal max range(m)
|
7.5
|
|
Vertical max range(m)
|
8.2
|
|
Residual rate
|
No more than 0.10
|
