BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
    • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer
  • BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    Product Details:

    Place of Origin: China
    Brand Name: CLW
    Certification: ASME standard, ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package
    Delivery Time: 35 days
    Payment Terms: T/T
    Supply Ability: 20 units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Material: High Quality Q345R Material For Lpg Gas Pressure Vessels
    Tank Volume: Lpg Gas Trailer From 17tons To 25tons. Manufacturing Standard: US ASME Standard Or Chinese Standard
    Axles: 2/3 BPW/FUWA Axles

    BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer



    56cbm LPG tanker semitrailer for LPG GAS adopts 13ton BPW air suspension triple axles with first axle lifting , 12+1 sets 12.00-20 vacuum tyre, , JOST 28ton outrigger, JOST 50# traction pin, fire extinguisher bottles, anti-static tape., steel flippers, ABS etc.



    The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, steel flippers, ABS etc.



    The LPG tanker semi-trailer is line with ASME standard and GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.


    “CLW” brand LPG storage tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc.


    All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998<steel pressure vessel>, <Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car>.



    Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas tank, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc.



    More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995





    Main Parameter of best quality for export to South America 3 axle 56000L LPG transport semi trailer:

    Main Technical Parameter
    Product Model CLW brand LPG gas semi trailer Overall Dimension(L*W*H)(mm) 12700×2500×3975
    Tank Volume(m3) 56 Tank Dimension(mm) 12340×2473
    Payload(kg) 23520 Curb weight(kg) 15480
    Axle number 3 Front/Rear axle load(Kg) -/39000(three-axis combined)
    Wheelbase(mm) 6865+1310+1310 Tank thickness(mm) 14mm
    Leaf spring -/7/7/7 Suspension type 2 axle steel plate spring , 1 axle air suspension with lifting device
    Storage medium Propane filling capacity 0.42ton/m3
    Tire size 12R22.5 12PR Tire No: 12 with a spare tire
    Superstructure parameter 1. Tank material: Q345R ,thickness 14mm, two Ellipsoidal head cover, thickness 14mm ,design pressure: 1.72Mpa ,design Temperature:-20 °C-
    50°C
    2. Equipped with 13ton BPW axle, 28ton JOST outrigger, 3-1/2'' JOST King pin,
    3 Equipped with two valve boxes, two tool boxes, safety valve, thermometer, pressure gauge, emergency shut-off valve, fire extinguisher, anti-static ground tape, two side loading & unloading , independent liquid outlet, etc
    4. All accessories from China high qulity brand

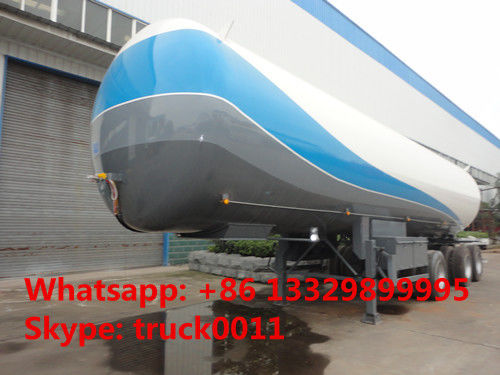

    More pictures of hot sale air suspension lpg gas trailer as below.

    BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    air suspension 56m3 lpg gas trailer for sale

    BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    high quality lpg gas tank trailer for sale

    BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    BPW 3 axles air suspension lpg propane tank trailer for sale, hot sale air-suspension 3 axles BPW lpg gas tank trailer

    best price lpg gas trailer for sale
