hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale

hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale

    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
    • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale
  • hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale

    Product Details:

    Place of Origin: China
    Brand Name: CLW
    Certification: ASME standard

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 units
    Price: negotiable
    Packaging Details: in bulk package
    Delivery Time: 35 days
    Payment Terms: T/T
    Supply Ability: 20 units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality Factory Direct Sale Price
    Material: High Quality Q345R Material For Lpg Gas Pressure Vessels

    hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale



    Skid lpg gas station is also called lpg skid-mounted filling station LPG GAS dispenser, Mobile Skid LPG Gas Station,]lpg mounted skid refilling station, LPG FILLING SKID STATION, lpg filling station skid-mounted moving, lpg propane skid station, LPG skid station gas station, lpg skid-mounted filling station, LPG Skid-Mounted station with LPG tank, dispensers, valves, pumps and skid, etc.



    If you're itnerested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995



    Main parameters of hot sale 40m3 skid lpg gas plant as below

    Item Unit Specification
    Loading object   CLW40-2300
    Material   Propane Gas
    Designed loading Parameter Option Q345R, 16MnIII, Q370R
    Kg/m3 420~ 500
    Dimension mm 10040*2324*2914
    Net Weight Kg 15960
    Designed Pressure Mpa 1.77
    Max Working Pressure Mpa <=1.6
    Designed Temperature C -20~50
    Volume m3 40
    Body thick mm 12
    End head mm 14
    Man Hole mm 450
    Top Safety Valve Port mm 80
    Life Year Year 10
    Input and output
    Liquid input Port mm DN50 ( 2 Inch) 2.5Mpa
    Liquid Output Port mm DN50 (2 Inch) 2.5Mpa
    Bottom Air gas input Port mm DN50 (2 Inch) 2.5Mpa
    Waste Liquid Output Port mm DN50 (3 Inch) 2.5Mpa
    Top Gas Let Out Port mm DN50 (3 Inch) 2.5Mpa
    Liquid Level Indicator Port mm DN20 2.5Mpa
    Essential Device for option
    Safety Valve, Temperature Gague, Pressure Gauge
    Option~ flange
    Production Standard
    China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard
    Designed Valid Year, at least 10 year


    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of pressure vessels in China. With many years’ experience in developing, Chengli Special Automobile Co., Ltd. could supply lpg gas tank, lpg gas trailer, bulk lpg gas delivery truck, skid lpg gas station, lpg gas dispenser truck, etc. More information, please feel free to contact with Ms. Anita Deng.

    More pictures of 40cbm skid lpg gas station as below.

     hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale

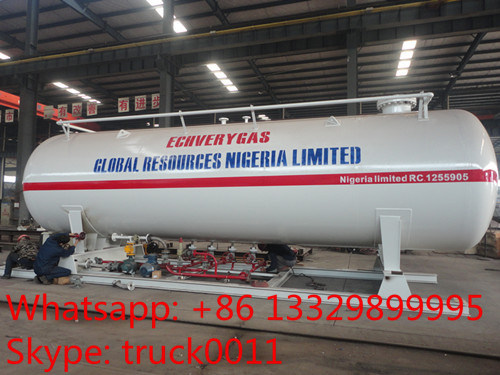

    40m3 skid lpg gas plant for Nigeria clients

    hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale

    best price mobile skid lpg gas refilling plant for sale

    hot sale 40,000L mobile skid lpg gas station for refilling gas bottles, skid lpg gas tank with refilling system for sale



    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of bulk lpg gas storage tanks, lpg gas trailer, lpg gas delivery trucks, etc. in China since 2004s. With many years'development, OUR CLW brand pressure vessels have been exported to so many countries all over the world. Recently our CLW brand pressure vessels products pass the ASME certificate, and then our CLW lpg gas tank and lpg gas trailers could been exported to USA, Europe, Taiwan, etc. More information, please feel free to contact with Ms. Deng.

    Whatsapp/Wechat: +86 13329899995

    Skype: truck0011

    QQ: 504873236
