Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

    • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck
    • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck
    • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck
    • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck
    • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck
  • Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

    Product Details:

    Place of Origin: China
    Brand Name: dongfeng brand

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package, waxed
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: Cheapest Price With High Quality
    Engine: Dongfeng Cummins Large Power 210hp Diesel Engine Vacuum Tank Volume: Upon To 18,000L





    Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, HOT SALE! dongfeng vacuum suction truck for sale



    Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, factory direct sale dongfeng brand sludge tank truck with cheapest price

    Total mass(kg) 24700 Curb mass(kg) 11505
    Rated mass(kg) 13000 Chassis model EQ1258KB3GJ
    Driver cab person 3 Max speed(km/h) 85
    Approach/departure angle(°) 28/15 Front/rear suspension 1245/2705
    Overall dimension(mm) 9600X2490X3250 Cargo body dimension(mm) XX
    Axles 3 Axle load(kg 6700/18000(double axle)
    Tyre 10.00-20, Tyre 10+1
    Front tread(mm) 1940 Rear tread(mm) 1860/1860
    Wheelbase(mm) 4350+1300, Springs 9/10
    Emission standard GB3847-2005,GB17691-2005 euro Ⅲ Fuel type Deisel
    Engine model Manufacturer Displacement Power
    B210 33 Dongfeng cummins 5900 155





    Dongfeng 6*4 double rear 16cbm sludge truck, adopts dongfeng 6*4 original chassis, flathead with sleeper luxurious driver cab, 4350+1350mm wheelbase, cummins 210 Euro 3 engine, fastgear 8 speed 8JS85E transmission, 5ton front bridge/10ton double rear bridge, 10.00-20 nylon tyre, 280mm double layers truck body,



    Dongfeng doule rear bridge 12cbm sludge truck volume: 16cbm, adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, side water tanker with high pressure pump, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.



    If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.



    the main advantages and the product description: the sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid, such as sewer, septic pool, swill, slops, feces and 8mm stones, etc.

    Chassis (diesel )
    Engine mode B210 33
    POWER 155KW
    Oil comsuption(100L) 13L
    Max speed 85Km/h
    mini turning diameter 12m



    Vacuum pump model XD-63(double pumps)
    Vacuum pump blade Single stage rotary vane oil seal vacuum pump
    Vertical suction distance ≥8(m)
    Absolute working pressure 8500Pa
    Rotationl Speed 500
    Theoretical sucking speed 98L/S
    Axial power 5.5KW

    Inlet/outlet diameter



    50mm
    Full sucking time ﹤10s
    Full discharging time ﹤8s
    Tanker lifting time ≤20s



    the main parameters and the description of the truck



    a. the sewage suction truck belongs to the medium tonnage special purpose vehicle for wide using.

    b. all the tanker materials uses 6mm thickness high quality Wugang sheets. And the capped end adopts 8mm thickness steel sheet one-formed spinning. The tanker is just a cylinder; the capped end is a half ball shape, the protecting part of the end is about 350mm, and which can avoid tanker and the end not flat for sucking.



    c.the tanker volume: 10cbm, adopting Wuagng high quality carbon steel sheets, equipping with big power special vacuum sewage suction pump. And the special parts are made up of vacuum pump, PTO, shaft, water separator, oil separator, multi-way valve, tanker, discharging valve, sewer view window, vacuum pressure gauge, pipelines, hydraulic system, etc. The rear door is operated by the hydraulic switch with self-discharging function. The outlet is shut by pneumatic controlling. The truck also equips with one 5m length hose, with hand cleaning small water tanker.



    d. the main advantages and the product description: the sewage suction truck is just suitable for sucking, transport and discharging all kinds liquid or half liquid, such as sewer, septic pool, swill, slops, feces and 8mm stone).



    e, this sludge trucks has two grade protection devices, one is swing rod eletronic alarm, the second is buoyancy closure, etc. These two can avoid anti-flow because of higher vacuum degree and human factors,etc. Largely improving the long time of the vacuum pump, etc.



    f, the sludge tanker and the metallic assembly are with Phosphating treatment before coating, macromolecular anti-corresive undercoat and then metallic paints.



    More pictures of hot sale dongfeng LHD 16,000L vacuum sewage suction truck as below.

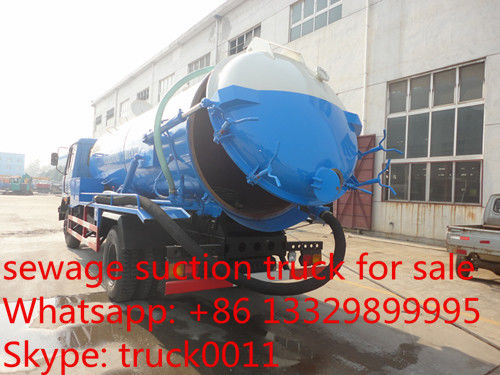

    Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

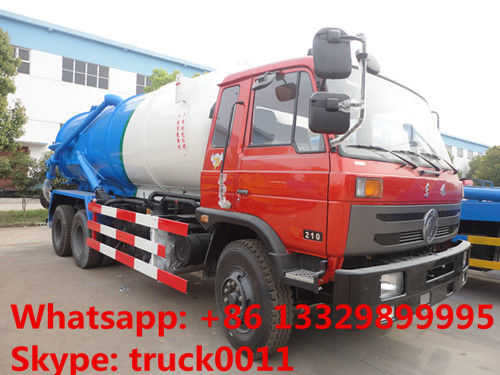

    16m3 vacuum truck

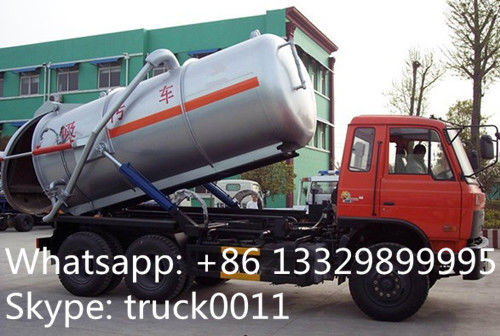

    Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

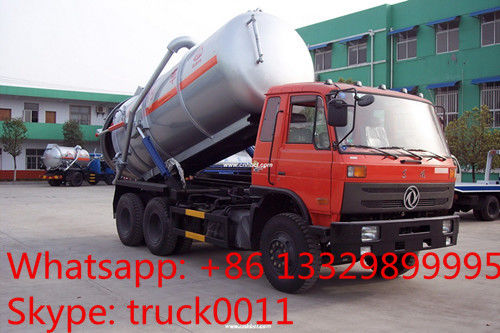

    dongfeng 16m3 sludge tank truck for sale

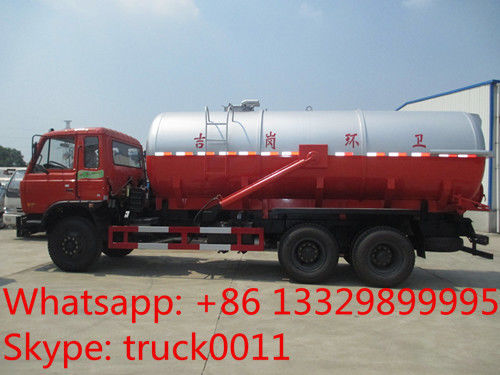

    Dongfeng 6*4 LHD/RHD Cummins 210hp diesel 16m3 vacuum sewage suction truck for sale, dongfeng brand sludge tank truck

    More information, please feel free to contact with Ms. Anita.

    Whatsapp/wechat/Mob.: +86 13329899995

    Skype: truck0011

    QQ: 504873236
