cheapest price 26tons chick feed delivery truck for sale, hot sale dongfeng tianlong 8*4 40m3 chick feed pellet tank truck with high quality and competitive price
Feed truck ,also called bulk feed delivery truck,is a special vehicle mainly used to transportation of bulk feed, powder feed, noncorrosive bulk material, pharmaceutical powder and grain.
The feed bin is set on the chassis of the feed truck, and there is a feed inlet on the top. The helical conveyor on the top can revolute and lift freely, and the lifting angle is upto 60o, In transportation, the unloading pipe lies on the top of feed tank, while uplifts in unloading to make the feed outlet of feed tank connect to the feed inlet of store tank in feedlot. there is an operation device in cab, when unloading, it can automatically complete through power take-off shaft and helical conveyor by driving the reducer.
poultry Feed truck discharging method : electric or hydraulic discharging.
If you're interested in our poultry feed truck, please feel free to send email to truck0011@163.com or talk to Anita driectly by Whatsapp/Wechat/Mob.: +86 13329899995.
More pictures of hot sale dongfeng tianlong 8*4 26tons chick feed delivery truck as below.

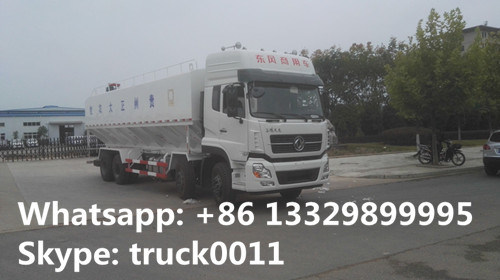

dongfeng tianlong 8*4 feed delivery truck for sale
hot sale 26tons chick feed truck
best price high quality 40m3 bulk feed delivery truck for sale
Feed truck compartments: 4 compartments for 4 different feed pellet
Product Description
| Feed truck |
|
General
|
Descriptions |
Specifications and types |
| Truck Brand |
Chengliwei(our brand) |
| Chassis Brand |
Dongfeng |
| Approx. Dimension |
12000*2500*3995mm |
| GVW./Kerb Wt. |
31000/ 15505kg |
| Cab |
Cab Capacity |
3 persons' seat |
| Air Conditioner |
Air Conditioner is equipped |
| Chassis |
Drive Type |
8X4, left-hand drive or right hand drive |
| Fuel Type |
Diesel |
| Engine Make & Model |
Dongfeng engine |
| Power |
199-236kw |
| Emission Standard |
Euro2,Euro3or Euro4 |
| Brake |
Exhaust Brake |
| No.of axle |
4 |
| Tyre Specfication |
11.00-20 |
| Tyre Number |
12 tyres and 1 spare tyre |
| Max Speed |
90 km/h |
| Paint |
Automative metallic paint |
| Superstructure |
Feed Tank capacity |
32.1 cbm |
| Feed tank dimension |
9000*2500*2310 mm |
| Medium |
Bulking or pellet feed |
| Density |
500kg/cbm |
| Tank compartments |
1-5 |
| Average unloading speed (kg/min) |
510 |
| Discharging system rotation angle |
+/- 180 degree |
| Discharging system max elevation |
60 degree |
| Delivery max horizontal distance (m) |
7.2 |
| Delivery vertical distance (m) |
8.2 |
| Residual rate |
Less than 0.10 |
1, CLW bulk feed truck adopts electronic auger type transferring feeds, putting on 380 Volt three mutually alternate current, then working. Discharging is by electronic motor driven the screw mechanism with high speed, continuous working, highly improving the working productiveness. And also choose hydraulic ssytem discharging way.
2, for the density of the feeds is various, so the loading tonnage is also various. The tank volume is 20cbm. When the feeds density is 0.55ton/cbm, 0.6ton/cbm, 0.7ton/cbm, the loading mass is 11ton, 12ton, 14ton.
3, the bulk feeds truck adopts the special bulk feeds truck chassis, widely for long distance transportation, large size feedstuff factories, etc.
4, Different feeds delivering type decides different speed. Please consider the real areas to choose electronic auger or hydraulic auger, etc.
5, Producing time: 10 working days.
Bulk feed delivery truck is main used for delivering, loading and discharging of feed pellets of different feed factories, large-type poultry farms, and also for transporting some non-corrosive feed pellets, such as pellets from pharmaceutical factory and turnover of grain depots, etc. the feed trucks manufactured by Chengli Special Automobile Co., Ltd. can transporting various feed pellet with the different compartments, the dream transporting vehicles for poultry farms and feed factories. More information, please feel free to contact with Ms. Anita Deng.
