factory direct sale CLW brand 13,000kgs mobile skid lpg gas filling plant for refilling lpg gas cylinders, 13MT skid lpg gas station for sale
The skid system lpg gas refilling station is made up of lpg gas tank, accessories for lpg tank, lpg gas pump and motor, electronic scale with filling nozzles(electronic lpg gas dispenser), safe electronic system, etc.
At present, Chengli Special Automobile Co., Ltd. could design and produce 5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 30m3, 32m3…..120m3 interated mobile skid mounted lpg gas filling plant. etc.
We can design and manufactured the lpg gas pressure vessels accordance with Chinese GB standard and also US ASME standard.
Anyone interested in our CLW brand lpg gas pressure vessels, please feel free to contact with Ms. Anita.
We can customize skid lpg gas plants from 2tons to 50tons with single one electronic scale, double electronic scales, even three electronic scales, etc. More information, please feel free to contact with Ms. Anita. Please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
More pictures of hot sale 8tons mobile skid lpg gas refilling plant as below

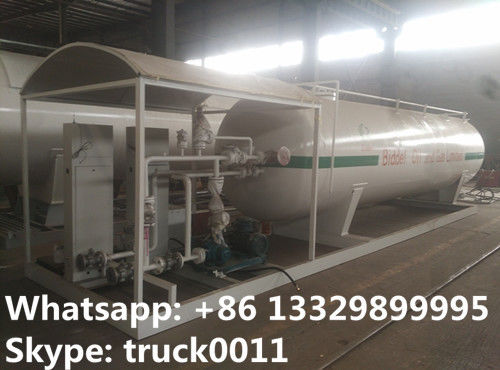

13,000kgs skid lpg gas plant for sale

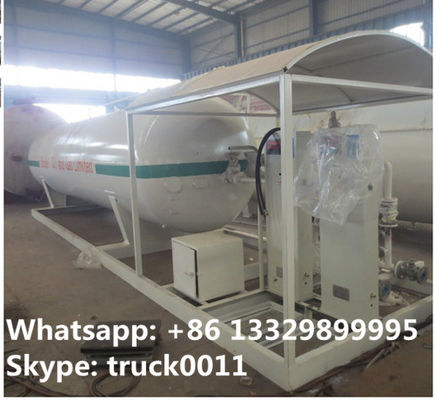

13 metric tons skid lpg gas plant with double electronic scales for sale
32,000L propane skid lpg gas plant with single electronic scales for sale
13tons skid lpg gas plant manufactured by Chengli Special Automobile Co., Ltd. as below
32 CBM LPG TANK DIMENSIONS | |||
Volume of Tank | 20,000L | ||
Filling Weight | 8000kgs | ||
Tank Weight | 5080kgs | ||
Thickness of Shell (mm) | 12mm | ||
Thickness of Endplate (mm) | 14mm | ||
Tank Diameter (mm) | 2100 mm | ||
Tank Dimensions (mm) (length x width x height) | 6154*2124*2714 mm | ||
External Dimensions (mm) (length x width x height) | To be designed to be loaded in a 40’container | ||
Material of Tank | Carbon Steel Q345R | ||
Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
Design Pressure | 1.77 MPa | ||
Corrosion Allowance | 1 mm | ||
Medium Density | 420-590 kg/ cbm | ||
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
Main parts of LPG Tank | |||
Item | Specification/ mm | Quantity | |
Discharge Pipe | DN50 | 1 | |
Inflow Pipe | DN50 | 1 | |
Outlet | DN50 | 1 | |
Gas phase balance pipes | DN50 | 2 | |
Manhole | DN450 | 1 | |
Drain Hole | DN50 | 1 | |
Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
LPG Skid Parts list | ||||
Item | Model Number | Quantity | ||
LPG Tanker | 32,000L | 1 piece | ||
Pump | 2" inlet & 2" outlet | 1 Piece | ||
Explosive-proof Motor | 380V with 220V adapter | 1 Piece | ||
Electronic Weighting Scale with filling nozzles | Can fill 1kg to 150kg LPG cylinders | 3 pieces | ||
Pipes | / | 1 Sets | ||
Cut-off Valve | J41N-40 DN50 | 25 Pieces | ||
J41N-40 DN15 | 10 Pieces | |||
Safety Valve | A42F-25 DN50 | 1 Piece | ||
Pipe Safety Valve | A21F-25 DN15 | 1 Piece | ||
Level Gauge | Float ball type | 1 Unit | ||
Discharging pipe | L=4M DN50/DN25 | 1 Piece | ||
Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | ||
Flange | 2.5MPaDN15 | 20 Pieces | ||
LPG Pump & Motor Specification | ||||
Pump Brand | Chinese brand lpg gas pump | |||
Model | YQB15-5 | |||
Medium | Liquid petroleum gas | |||
Working pressure differential | ≤0.5Mpa | |||
Inlet pressure | ≤1.0Mpa | |||
Flow Speed | 15.5m3/h | |||
Applied Power | 5.5kw | |||
Inlet & Outlet Flange | 2”NPT / 2" NPT | |||
Revolution
|
780r/min | |||
mass | 166kgs | |||
Motor | Chinese brand | |||
Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
|||
LPG Cylinder electronic Filling Machines Specification | ||||
Brand | Chinese Kaiyuan Brand | |||
Model | BCS-150 | |||
Power supply available | 220V 50HZ | |||
Rated power | 30W | |||
Max weighting capacity | 150kg | |||
Mini weighting capacity | 1kg | |||
Measurement Precision | ±0.5% | |||
Accuracy Level | Ⅲ | |||
Certified Division value | 50g | |||
Anti-explosion Rate | Exhibit II BT4 | |||
Weighing station size | 535*425mm | |||
Electronic scales No. | 1-3 sets |
