HIGH QUALITY and BEST PRICE 2 Axle 35cbm 38cbm LPG semi trailer 40cbm LPG Tank trailer for sale, HOT SALE! 17tons bulk lpg gas tank trailer
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas pressure vessels, such as lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, lpg gas tank, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
Send to email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995
Technique parameters of CLW brand 40.5m3 17tons bulk lpg gas trailer as below
| Semi trailer |
Curb weight(kg) |
13415 |
| G.V.W.(kg) |
30425 |
| Wheelbase(mm) |
6720+1320 |
| External Dimensions(mm) |
11324*2500*3730 |
| Design the limited velocity |
Straight road |
80 Km/h |
| Turning |
20 Km/h |
| Tank |
Capacity(m³) |
35cbm 40cbm 45cbm 50cbm 56cbm 58.5cbm |
| Size(mm) |
2200*12*11044 |
| Design pressure(MPa) |
1.61 |
| Filling medium |
LPG |
| Tank material |
Q345R or Q370R |
| Corrosion allowance(mm) |
1.0 |
| Hydraulic test pressure(Mpa) |
1.0 |
| Thickness of Shell (mm) |
12.0 |
| Thickness of Endplate(mm) |
12.0 |
| Main part of Tank |
Item |
Specification |
Quantity(pc) |
| Drain hole |
DN50 |
1 |
| Liquid line |
DN50 |
1 |
| Gas line |
DN25 |
1 |
| Manhole |
DN450 |
1 |
| Air out valve |
DN50 |
1 |
| Safe valve |
DN80 |
1 |
| Standard configuration |
3 axles with BPW bridge (13T),12R22.5 12PR(13 pcs), JOST king pin,JOST leg(25T),mechanic liquid level meters,double pressure meter,double thermometer,double emergency cutting valve ,four ball valve,double safe valve,two tool boxes, single outlet ,double loading and unloading system,aluminum sunshade protection,2 sets 9kg fire extinguishers type ABC,1 set 2kg fire extinguisher type CO2,3 sets danger sign plate,2 sets orange numbered plate,flow meter with printer |
double axles 40.5m3 LPG (propane)tank semi-trailer, adopts 13ton BPW/FUWA double axles, 8 sets 12.00-20 vacuum tyre, and another spare tyre, JOST outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are temperature gauge, safety valve, pressure gauge, emergency cut-off valve, single tool box, double valves box, double side loading and unloading, etc.
The propane design pressure is 0.42Mpa, designed temperature is 50 degree, filling volume is 0.42, corrosion allowance is 1mm, the tanker material is Q345R,etc.
The LPG tanker semi-trailers manufactured by Chengli Special Automobile Co., Ltd. is line with the GB150-1998, Supervision Regulation On Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car.
Chengli Special Automobile Co., Ltd. is one of the leading manufacturer of LPG tanker truck, LPG semitrailers, pressure vessels in China since 2004s. With many years' experience in manufacturing and selling, Chengli Special Automobile Co., could offer LPG propane 3 axles semitrailer, propane 2 axles semitrailer, 3 axles isotane semitrailer, propene 3 axles semitrailer, methoxymethane 3 axles semitrailer, liquid ammonia 3 axles semitrailer, etc.

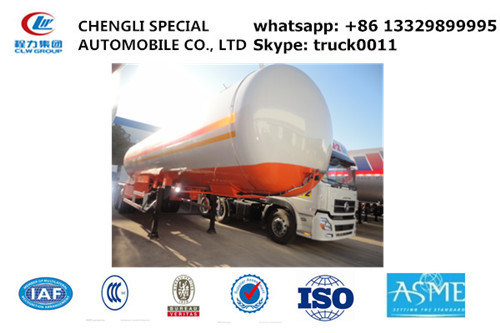

More pictures of hot sale CLW brand 40.5m3 ASME standard lpg gas storage tank trailer with ASME stamped as below.
double BPW axles 40500Liters bulk road transported lpg gas tank for sale
high quality and best price CLW brand 40500L lpg gas tank trailer for sale
China cheapest price Propane gas tank trailer for sale
