best price CLW Brand 13metric tons mobile skid propane gas plant with 2 electronic scales for sale, 32M3 skid-mounted lpg gas refilling station for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in our skid lpg gas station, please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main parameters of 13tons skid-mounted lpg gas refilling plant with double electronic scales manufactured by Chengli Special Automobile Co., Ltd. as below
| 32 CBM skid-mounted lpg gas filling plant DIMENSIONS |
| Volume of Tank |
32CBM |
| Loading capacity |
12768 kg |
| Tank Weight |
7110kg |
| Thickness of Shell (mm) |
12 mm |
| Thickness of Endplate (mm) |
14 mm |
| Tank Diameter (mm) |
2300 mm |
| External Dimensions (mm) (length x width x height) |
8158 x 2324 x 2914 mm |
| Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
| Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| Design Pressure |
1.77 MPa |
| Corrosion Allowance |
1 mm |
| Medium Density |
420 kg/ cbm-550kg/cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item |
Specification |
Quantity |
| Discharge Pipe |
DN50 |
1 |
| Inflow Pipe |
DN50 |
1 |
| Outlet |
DN50 |
1 |
| Gas phase balance pipes |
DN50 |
2 |
| Manhole |
DN450 |
1 |
| Drain Hole |
DN50 |
1 |
| Electronic LPG Filling Machine |
Can fill 1kg to 150kg gas cylinder |
1 |
| Lpg gas compressor |
Surcharging and filling lpg gas truck |
Choose to install, 1 set |
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
Pressure gauge, Temperature Gauge.
Skid Parts List will be show in separated page below.
|
| |
|
|
|
Main parameters of lpg gas pump & motor and electronic scale as below
| LPG Pump & Motor Specification |
| |
Pump Brand |
Chinese brand lpg gas pump |
| Model |
YQB15-5 |
| Medium |
Liquid petroleum gas |
| Working pressure differential |
≤0.5Mpa |
| Inlet pressure |
≤1.0Mpa |
| Flow Speed |
15.5m3/h |
| Applied Power |
5.5kw |
| Inlet & Outlet Flange |
2”NPT / 2" NPT |
|
Revolution
|
780r/min |
| mass |
166kgs |
| Motor |
Chinese brand |
| Specification |
7.5HP(5.5KW), Explosive Proof,
Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable |
| LPG Cylinder electronic Filling Machines Specification |
|
Brand |
Chinese Kaiyuan Brand |
| Model |
BCS-150 |
| Power supply available |
220V 50HZ |
| Rated power |
30W |
| Max weighting capacity |
150kg |
| Mini weighting capacity |
1kg |
| Measurement Precision |
±0.5% |
| Accuracy Level |
Ⅲ |
| Certified Division value |
50g |
| Anti-explosion Rate |
Exhibit II BT4 |
| Weighing station size |
535*425mm |
| Electronic scales No. |
2 sets |
More pictures of hot sale 13tons mobile skid lpg gas refilling station with double electronic scales as below

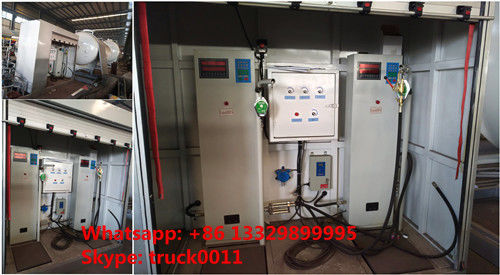

13tons mobile skid lpg gas plant for sale
13tons mobile skid-mounted lpg gas refilling plant with double electronis cales for sale
