skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser

skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser

    • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser
    • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser
    • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser
    • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser
    • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser
  • skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser

    Product Details:

    Place of Origin: China
    Brand Name: CLW
    Certification: ISO 9001, ASME

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package
    Delivery Time: 40 days
    Payment Terms: T/T
    Supply Ability: 20units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality Factory Direct Sale Price
    Material: High Quality Q345R Material For Lpg Gas Pressure Vessels



    skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser for sale

    1. Optional LPG Tanker Size: 5 CBM to 100CBM
    2. All in ONE LPG Skid station, no extra installation need or parts needed.
    3. Can sell LPG directly to consumer, with easy installation and transportation.
    4. LPG Dispenser Machine to charge the cars and truck, optional 1 nozzle or 2 nozzles
    LPG Electronic Salcess to fill 50kg to 150kg gas cylinders
    5. With LPG pumps, 380V motor, compressor and pipes.
    6. Can assisst the installation in customer's country.



    If you're interested in our lpg gas station, please feel free to send email to truck0011@163.com or  talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995

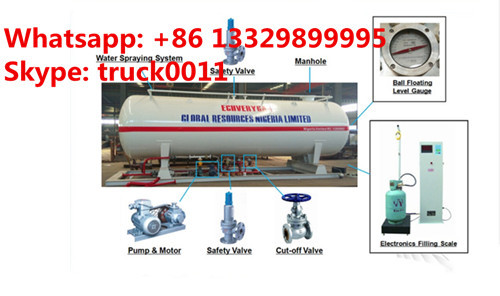

    More pictures of hot sale lpg gas dispenser plant, mobile skid lpg gas filling station for lpg ags construction as below



    skid lpg gas filling station for sale,mobile lpg gas tank with lpg gas dispensing, skid lpg filling plant with dispenser

    hot sale 10,000L skid lpg gas filling station with lpg gas dispenser

    More information, please feel free to contact with Ms. Anita.

    Skype: truck0011

    Whatsapp/wechat: +86 13329899995

    QQ: 504873236
    More Specification of skid LPG Skid filling Station for filling gas cylinders




    10 CBM LPG TANK DIMENSIONS
    Volume of Tank 10 CBM
    Filling Weight 4000 kg
    Tank Weight 2950 kg
    Thickness of Shell (mm) 10 mm
    Thickness of Endplate (mm) 10 mm
    Tank Diameter (mm) 1600 mm
    External Dimensions (mm) (length X width X height) 5260X 1620 X 2210 mm
    Material of Tank and Main Pressure Parts Carbon Steel Q345R
    Filling Medium Liquefied Petroleum Gas ( Propane)
    Design Pressure 1.77 MPa
    Corrosion Allowance 1 mm
    Medium Density 420 kg/ cbm
    Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
    Main parts of LPG Tank
    Item Specification Quantity
    Discharge Pipe DN80 1
    Inflow Pipe DN80 1
    Outlet DN50 1
    Gas phase balance pipes DN50 2
    Manhole DN500 1
    Drain Hole DN50 1
    Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
    Pressure gauge, Temperature Gauge.





    LPG Skid Part list
    Item Model Number Quantity
    LPG Tanker / 1 pieces
    Bottom Base / 1 Pieces
    Filling Machine JQ060L-A-1G 1 pieces
    Filling Gun pipe L=2M 3 Pieces
    Compressor ZW0.8/10-16 1 Pieces
    Filling pump with 380V motor YQB15-5 1 Pieces
    Cut-off Valve J41N-40 DN50 25 Pieces
    Safety Valve A42F-25 DN50 1 Pieces
    Safety Reverse Valve AH42F-25DN25 1 Pieces
    Check Valve H42N-40DN50 2 Pieces
    Pipe Safety Valve A21F-25 DN15 1 Pieces
    Magnetic reversible level gauge UZFAL-2.5RF2640-0.50 1 Pieces
    Discharging pipe L=4M DN50/DN25 1 Pieces
    Shock-absorbing Tube L=500mm DN50 2 Pieces
    Elbow Cap DN65 2 Pieces
    Alarm system QJ-D-99F 2 Pieces
    Flange 2.5MPaDN65 1 Pieces
    Metal gasket DN65 5 Pieces
    Metal gasket DN15 30 Pieces
    8.8 degree Bolt 16*70 300 Pieces
