50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
    • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle
  • 50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

    Product Details:

    Place of Origin: China
    Brand Name: CLW
    Certification: ASME certificate , ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package
    Delivery Time: 35 days
    Payment Terms: T/T
    Supply Ability: 20units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality Factory Direct Sale Price
    Material: High Quality Q345R Material For Lpg Gas Pressure Vessels

    50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottles for sale



    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels, such as bulk lpg tank, lpg gas trailer, lpg gas truck, skid lpg gas filling plant, lpg gas bobtail vehicle, lpg gas dispensing truck, etc. And recently, our company lpg gas pressure vessesl products have passed ASME. That is to say, our lpg pressure vessels can be exported to USA, Europe, etc.

    > LPG storage tank with capacity of 5cbm up to 120cbm
    > Color : as per customer request
    > Dispenser:one gun or two gun dispenser available
    > LPG Filling pump with motor
    > LPG discharging pump with motor
    > LPG hose assembly and quick connector
    > Safety Valve+Liquid Level Indication + Pressure Gauge + Thermometer etc
    > Other valves and necessary accessories for the operation of lpg filling station

    Following is the main technical parameters of 50m3 LPG tank, 50m3 lpg storage tank, 50m3 lpg transport tank ,50000L lpg gas fiiling stations is just for your reference, we aslo do customized products. special requirements, just call me directly Ms. Anita Deng. Please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995



    we supply 5-120m3 lpg tank, lpg storage tank, lpg transport tank, lpg tanker trailers, propane transport trailers for sale, propane tanker trailers for sale, 50m3 lpg skid filling station, 50m3 lpg filling skid station, gas filling station, lpg skid-mounted filling station. Top safety 50cbm LPG gas filling cylinder cooking gas station



    Item

    Unit

    Main parameters

    Product name



    LPG gas storage tank(50000L)

    Product model



    CLG2400-50

    Loading medium



    LPG gas (propane)

    Overall dimension(L*W*H)

    mm

    11508*2428*3018

    Tank dimension(inner diameter*thickness*length)

    mm

    DN2400*14*11508

    Tank volume

    m3

    50

    Tank thickness

    mm

    14

    End heads thickness

    mm

    14

    Curb mass

    kg

    11140

    Rated mass

    Kg

    19950

    Designed pressure

    Mpa

    1.77

    Working pressure

    Mpa

    ≤1.6

    Working temperature

    ≤50

    Hydraulic test pressure

    Mpa

    2.22

    Air tight test pressure

    Mpa

    1.77

    Tank and main Material pressure components

    Q345R,16Mnlll

    Standard

    <<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>



    Chosen assembly

    Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.







    Main parts of LPG Tank

    Item

    Specification

    Quantity

    Discharge Pipe

    DN50

    1

    Inflow Pipe

    DN50

    1

    Outlet

    DN50

    1

    Gas phase balance pipes

    DN50

    2

    Manhole

    DN450

    1

    Drain Hole

    DN50

    1

    Electronic LPG Filling Machine

    Can fill 0.5kg to 150kg gas cylinder

    with receipt printing

    1

    Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

    Pressure gauge, Temperature Gauge.

    Skid Parts List will be show in separated page below.



    The spare parts for the LPG Skid-station





    Model Number

    Quantity

    Tank

    50CBM



    Cut-off Valve

    DN50

    6 Pieces

    Cut-off Valve

    DN25

    2 Pieces

    Cut-off Valve

    DN80

    1 Pieces

    Needle Valve

    J24W, M20×1.5

    1 Pieces

    Safety Valve

    DN80

    1 Pieces

    Magnetic reversible level gauge

    UZFAL-2.5RF2640-0.50

    1 Pieces

    Pressure gauge

    M20×1.5 1.5Level 0~4MPA

    1 Pieces

    Thermometer

    M33×2 2.5Level

    1 Pieces





    Accessory

    Quantity

    Cut-off Valve

    9Pieces

    Compressor

    1.5MPa

    Shock-absorbing Tube

    1 Set

    Filling pump machine

    2 Pieces

    Discharge Pipe

    5 Miters/set, 2sets

    Anti static electric motor

    1 Piece

    Bottom Base

    1 Unit

    Freight

    To Shanghai Port

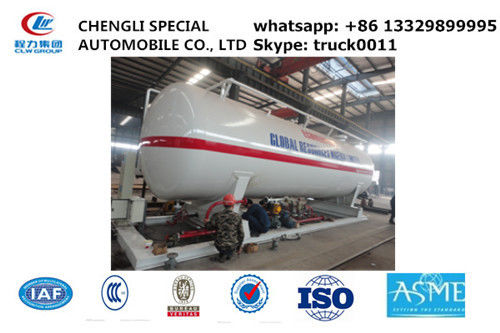

    More pictures of hot sale 50,000L skid mounted lpg gas filling plant as below.

    50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

    50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

    50000L mobile skid mounted lpg gas fiiling stations, 50m3 skid propane cooking gas plant for kitchen gas cylinder bottle

    More information, please feel free to contact with Ms. Anita deng.

    Whatsapp/wechat: +86 13329899995

    Skype: truck0011

    QQ: 504873236
