CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder

CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder

    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
    • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder
  • CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder

    Product Details:

    Place of Origin: China
    Brand Name: CLW brand
    Certification: ASME, ISO 9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package, waxed
    Delivery Time: 20 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: Best Quality With Cheapest Price
    Tank Volume: 25m3 Tank Loading Capacity: 10metric Tons
    Material: High Quality Q345R Material For Lpg Gas Pressure Vessels



    CLW brand 10MT mobile skid lpg gas refilling station, best quality and competitive price  ASME standard 10tons skid mounted lpg gas palnt for sale



    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China, such as surface lpg gas tank, underground lpg gas tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas refilling station, etc.


    Chengli Special Automobile Co., Ltd. received an order of 10m3 skid mounted propane gas filling plant. However, this is not the first time for our company to design and manufacture the skid lpg gas filling plant. Last year, our company had designed and produced a 40,000L skid mounted lpg gas filling plant for Nigeria client. So our company have the full experience to manufacture that kind of lpg gas pressure vessels. And also last year, our CLW brand lpg gas pressure vessels had passed US ASME certificate.

    We can design and manufactured the lpg gas pressure vessels accordance with Chinese GB standard and also US ASME standard.

    Anyone interested in our CLW brand lpg gas pressure vessels, please feel free to contact with Ms. Anita. Please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995



    The main technical parameters of 10MT mobile skid lpg gas plant as below



    25 CBM skid-mounted lpg gas filling plant DIMENSIONS
    Volume of Tank 25 CBM
    Loading capacity 10000 kg
    Tank Weight 5970 kg
    Thickness of Shell (mm) 12 mm
    Thickness of Endplate (mm) 12 mm
    Tank Diameter (mm) 2400 mm
    External Dimensions (mm) (length x width x height) 6700 x 2400 x 3800 mm
    Material of Tank and Main Pressure Parts Carbon Steel Q345R
    Filling Medium Liquefied Petroleum Gas ( Propane)
    Design Pressure 1.77 MPa
    Corrosion Allowance 1 mm
    Medium Density 420 kg/ cbm
    Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
    Main parts of LPG Tank
    Item Specification Quantity
    Discharge Pipe DN50 1
    Inflow Pipe DN50 1
    Outlet DN50 1
    Gas phase balance pipes DN50 2
    Manhole DN450 1
    Drain Hole DN50 1
    Electronic LPG Filling Machine Can fill 3kg to 150kg gas cylinder 1

    Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,

    Pressure gauge, Temperature Gauge.

    Skid Parts List will be show in separated page below.



    The spare parts for the LPG Skid-station

      Model Number Quantity
    Tank 25CBM
    Cut-off Valve DN50 6 Pieces
    Cut-off Valve DN25 2 Pieces
    Cut-off Valve DN80 1 Pieces
    Needle Valve J24W, M20×1.5 1 Pieces
    Safety Valve DN80 1 Pieces
    Magnetic reversible level gauge UZFAL-2.5RF2640-0.50 1 Pieces
    Pressure gauge M20×1.5 1.5Level 0~4MPA 1 Pieces
    Thermometer M33×2 2.5Level 1 Pieces



    Accessory Quantity
    Cut-off Valve 9Pieces
    Shock-absorbing Tube 1 Set
    Filling pump machine 2 Pieces
    Discharge Pipe 5 Miters/set, 2sets
    Anti static electric motor 1 Piece
    Bottom Base 1 Unit
    Freight To Shanghai Port

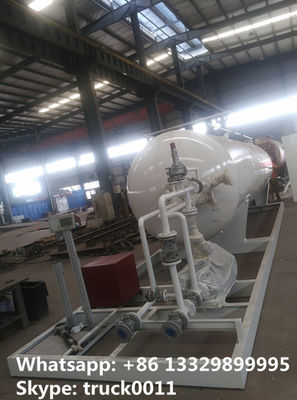

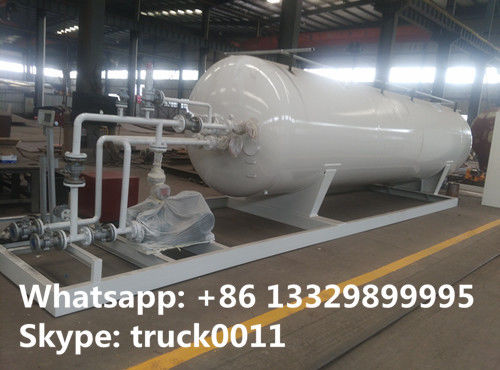

    More pictures of hot  sale 10MT mobile skid lpg gas refilling plant as below.

    CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder

    CLW brand 10MT skid lpg gas plant for sale

    CLW brand 10MT mobile skid lpg gas refilling station, ASME standard 10MT skid mounted propane gas plant for gas cylinder

    ASME standard 10MT mobile skid lpg gas filling station for sale
