Hot sale China supplier of mobile skid propane gas refilling station with digital scales, best price mobile skid lpg tank with scales
skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of hot sale CLW brand skid lpg gas station with digital scales for filling gas cylinders as below
| Volume of Tank |
5m3/8m3/12m3/15m3/20m3/25m/32m3/40m3/45m3/5-m3/60m3/65m3/70m3/80m3/90m3/100m3/120m3 |
| Material of Tank |
Carbon Steel Q345R |
| Filling Medium |
Liquefied Petroleum Gas ( Propane) |
| Design Pressure |
1.77 MPa |
| Corrosion Allowance |
1 mm |
| Medium Density |
420-520 kg/ cbm |
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
| Main parts of LPG Tank |
| Item |
Specification/ mm |
Quantity |
| Discharge Pipe |
1 |
| Inflow Pipe |
1 |
| Outlet |
1 |
| Gas phase balance pipes |
2 |
| Manhole |
1 |
| Drain Hole |
1 |
| Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. |
| LPG Skid Parts list |
| Item |
Model Number |
Quantity |
| LPG Tanker |
5m3/8m3/12m3/15m3/20m3/25m/32m3/40m3/45m3/5-m3/60m3/65m3/70m3/80m3/90m3/100m3/120m3 |
1 |
| Pump |
2" inlet & 2" outlet |
1-2 |
| Explosive-proof Motor |
380V with 220V adapter |
1-2 |
| digital scale |
Filling 1kgs-150kgs domestic gas cylinders |
1-4 |
| Pipes |
/ |
1 |
| Cut-off Valve |
|
25 |
| |
10 |
| Safety Valve |
|
1 |
| Pipe Safety Valve |
A21F-25 DN15 |
1 |
| Level Gauge |
Float ball type |
|
| Discharging pipe |
L=4M DN50/DN25 |
|
| Shock-absorbing Tube |
L=500mm DN50 |
|
| Flange |
2.5MPaDN15 |
|

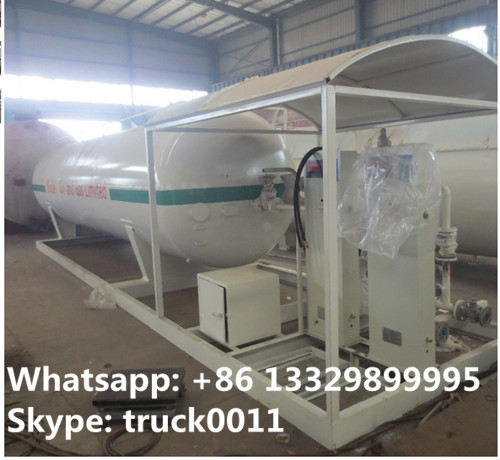

More picutres of hot sale CLW Brand skid lpg gas refilling station with scales as below.
5,000Liters skid lpg gas station with single scale for sale
10m3 skid lpg gas filling station with single digital scale for sale
hot sale 20m3 skid lpg gas station with digital filling scale for Nigerian client
25m3 mobile skid lpg gas plant with double digital scales for sale
CLW brand skid lpg gas refilling station with 4 digital scales for sale
2017s new design skid lpg gas plant with 3 digital scales and lpg gas compressor for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years'development, Chengli Special Automobile Co., Ltd. could manufacture and supply surface/underground lpg gas storage tank, lpg gas tank semitrailer, skid lpg gas refilling plant, lpg gas truck, lpg gas bobtail vehicle, etc. More information, please feel free to contact with Ms. Anita.
