Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

    • Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars
    • Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars
    • Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars
    • Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars
  • Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

    Product Details:

    Place of Origin: China
    Brand Name: CLW
    Certification: CCC, ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: negotiable
    Packaging Details: in bulk package, waxed
    Delivery Time: 40 days
    Payment Terms: T/T, L/C
    Supply Ability: 20units/month
    Contact Now
    Detailed Product Description
    Color: Different Color Upon Request Price: High Quality Factory Direct Sale Price
    Material: High Quality Q345R Material For Lpg Gas Pressure Vessels Scales: 1-5 Digital Scales

    Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with double filling nozzles) for automobiles



    Nowadays, more and more clients choose to purchase mobile skid lpg gas plant for their lpg gas plant business. We Chengli Special Automobile Co., Ltd. can customize skid lpg gas plant with digital scales for filling domestic gas cylinders or automatic lpg gas dispenser for automobiles. And clients can choose 1/2/3/4/5 digital scales install on the skid lpg gas plant upon request, or even. And they can also choose install lpg gas dispenser with 1/2/3/4/5 nozzles for automobiles.



    skid system lpg with automobile lpg gas dispenser is used for refilling of liquified petrol gas (LPG). As a major equipment of the LPG station, it is equipped with high-accuracy positive displacement flowmeter,microcomputer control, large LCD counter and various control valves and protection devices assuring operation safety.With advanced manufacturing technique, the dispenser has reliable quality and excellent performance with characteristics of precise ration, easy maintainance and centralized control. Each gun connects to an independent flow and metering system which prevents interference.



    If you're interested in our skid lpg gas refilling station, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995

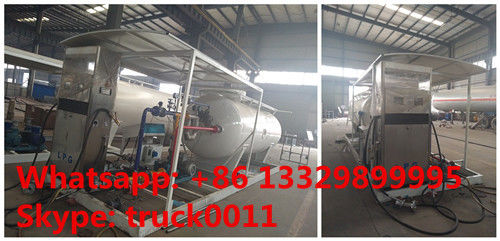

    More pictures of 25,000Liters skid lpg gas station with auto lpg gas dispenser for filling automobiles as below

    Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

    skid lpg gas refilling station with auto lpg gas dispenser for sale

    Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

    Factory sale cheaper price 25m3 skid lpg gas refilling station with auto lpg gas dispenser(with 2 nozzles) for cars

    main technical parameters of hot sale 25,000Liters skid lpg gas tank with lpg gas dispenser as below

    25,000L LPG TANK DIMENSIONS
    Volume of Tank 25m3
    Filling capacity 12.5tons
    Tank Weight 6020kgs
    Thickness of Shell (mm) 12mm
    Thickness of Endplate (mm) 14mm
    Tank Diameter (mm) 2200 mm
    Tank Dimensions (mm) (length x width x height) 7008*2224*2814mm
    Material of Tank Carbon Steel Q345R
    Filling Medium Liquefied Petroleum Gas ( Propane)
    Design Pressure 1.77 MPa
    Corrosion Allowance 1 mm
    Medium Density 420-590 kg/ cbm
    Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
    Main parts of LPG Tank
    Item Specification/ mm Quantity
    Discharge Pipe DN50 1
    Inflow Pipe DN50 1
    Outlet DN50 1
    Gas phase balance pipes DN50 2
    Manhole DN450 1
    Drain Hole DN50 1
    Other accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge.




    LPG Skid Parts list
    Item Model Number Quantity
    LPG Tanker 25,000L 1 piece
    Pump 2" inlet & 2" outlet 1 Piece
    Explosive-proof Motor 380V with 220V adapter 1 Piece
    Digital weighting scales Single or double filling nozzles 2pieces
    Pipes / 1 Sets
    Cut-off Valve J41N-40 DN50 25 Pieces
    J41N-40 DN15 10 Pieces
    Safety Valve A42F-25 DN50 1 Piece
    Pipe Safety Valve A21F-25 DN15 1 Piece
    Level Gauge Float ball type 1 Unit
    Discharging pipe L=4M DN50/DN25 1 Piece
    Shock-absorbing Tube L=500mm DN50 2 Pieces
    Flange 2.5MPaDN15 20 Pieces
    LPG Pump & Motor Specification
      Pump Brand Chinese brand lpg gas pump
    Model YQB15-5
    Medium Liquid petroleum gas
    Working pressure differential ≤0.5Mpa
    Inlet pressure ≤1.0Mpa
    Flow Speed 15.5m3/h
    Applied Power 5.5kw
    Inlet & Outlet Flange 2”NPT / 2" NPT

    Revolution



    780r/min
    mass 166kgs
    Motor Chinese brand
    Specification 7.5HP(5.5KW), Explosive Proof,
    Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable

    Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. Our CLW lpg gas pressure vessels(lpg gas storage tank, lpg gas trailer, lpg gas truck, lpg gas dispensing truck, skid lpg gas filling plant) have been exported to so many countries all over the world. And to meet the needs of the international market, Chengli Special Automoile Co., Ltd. lpg gas pressure vessel factory design and manufacture lpg gas dispensing truck and skid lpg gas filling plant. More information, please feel free to contact Ms. Anita.

    Whatsapp/Wechat/Mob.: +86 13329899995

    Skype: truck0011

    QQ: 504873236
