dongfeng tianlong 6*4 20cbm-25cbm oil tank truck for sale,factory sale dongfeng 20,000Liters military diesel tank truck
Chengli Special Automobile C o., Ltd is a professional FUEL TRUCK manufacturer for more than 10 years in China. With many years' development, we can provide fuel transportation FUEL semi trailer from 30000L to 60000L, etc.
Oil tankers truck for sale is also called fuel tank truck,mobile fueling truck,etc, widely used in storage, transporting and refilling for all kinds of oil (gasoline, diesel, crude oil, lubricating oil and coal tar, etc) .
Product Notes of CLW Brand fuel tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.
1.We can supply fuel truck, refueling truck from 4000L to 40000L.
2. According to your requirements, it has functions of oil-absorbing, oil-pumping, separation variety of oil, separation packing of oil.
3. The tank material can choose carbon steel or 304 stainless steel or aluminum alloy.
4.Optional Chassis Brand: Dongfeng, Fonton, WUSHILIN, JMC,JAC, Chang'an,Sinotruk,Steyr,Shacman,FAW, Iveco, Auman and North BENCHI etc.
5. Factory direct sale, high quality and good price.
| 1. The fuel tanker shape is ellipse, adopts 4mm high quality GB carbon steel, with one compartment and several anti-wave sheets. And the tanker volume is 5000Liters. |
| 2. Dongfeng refueling truck, equips with special carbon steel fuel pump, one manhole, one self-discharging valve at the tanker bottom, one aluminum ally emergency shutoff device, one unit aluminum alloy elevating guardrail, one unit of China-made refueling dispenser and 15m self-return Refueling reel and refueling nozzle, pipeline, ladder, one toolbox, etc. |
| 3, The truck is painted metallic coating. And the fuel dispenser is installed at the front like the pictures. |
If you're interested in our fuel truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of dongfeng tianlong 6*4 fuel tank truck as below
| Product Name |
Dongfeng Tianlong 6x4 fuel tanker truck |
| Product Model |
Dongfeng |
| Tank Volume |
24000Liters |
| Tank Size |
7000*2400*1650mm
(length*long axis*minor axis) |
| Main parameters |
Overall size(L*W*H) |
9700×2500×3350,3690mm |
| Gross weight |
25000kgs |
| Rated capacity |
14000,14065kgs |
| Curb weight |
10805kgs |
| Approaching/Departure Angle |
20/11,20/10(°) |
| Front/Rear suspension |
1460/2540,1460/2590mm |
| Axle loading |
7000/18000 |
| Max.speed |
85km/h |
| Chassis |
Chassis Brand |
Dongfeng |
| Chassis model |
DFL1250A11 |
| Drive type |
6X4, LHD/RHD |
| Fuel Type |
Diesel |
| Tire Specification |
10.00-20,10.00R20
11.00-20,11.00R20 |
| Tire No. |
10 |
| Wheelbase |
4350+1300mm
4350+1350mm |
| Alex No. |
3 |
| Leaf Spring No. |
8/9,8/10 |
| Front trend |
1986,2040mm |
| Rear trend |
1860/1860mm |
| Engine |
Manufacturer |
Dongfeng Cummins Engine |
| Model |
ISDe24540 |
| Horse Power |
245HP |
| Displacement/Power |
6700ml/180kw |
| Emission standard |
Euro 4 |
The advantages and technical standard of chemical truck, fuel truck from Chengli is as below:
First, plastic lined steel chemical truck, suitable for transporting corrosive medium, such as acid and alkali. And the outer layer of the chemical tanker is carton steel, the inside surface is polyethylene plastic liner. And the anti-wave sheets are plastic liner steel structure, not easy to topple down.
Second, tank container, yellow phosphorus tanker, according to the ISO standard design, is made up of structure and tanker, and the length is from 20GP to 40GP, the common tank container to transport liquid material. Loading from the top hole of yellow phosphorus tanker, and discharging sucking from the discharging hole.
Third, stainless steel tanker truck, is widely useful, loading tetrol, edible oil, water, etc. And the tanker material usually uses 201, 304, 316, etc. We can also paint or grind.
Fourth, temperature controlled tanker, suitable for high freezing point medium, such as sulfur, asphalt, and others need to keep a certain temperature. And the insulation layer can use mineral wool, PU foam. And the heating system having heating by steam, heating by fuel, heating by electronic, etc.
Fifth, fuel truck, is suitable for transporting gasoline, diesel, etc. mediums. The tanker adopts water pressure expanding head, all automatic welding. The fuel truck can install charging and discharging bottom device, vapor collection system, anti-relief system, etc.

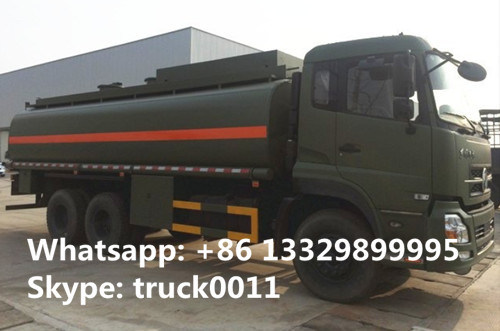

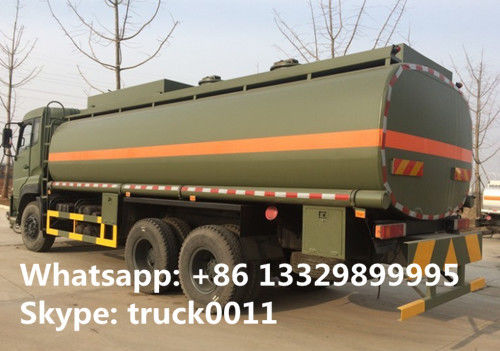

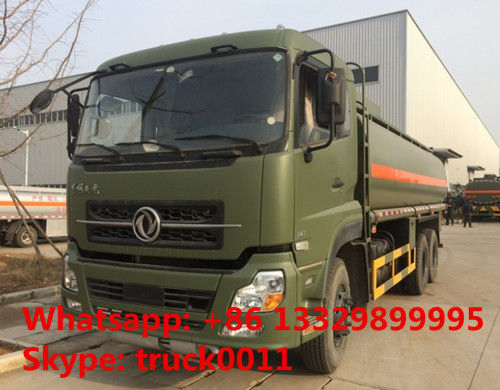

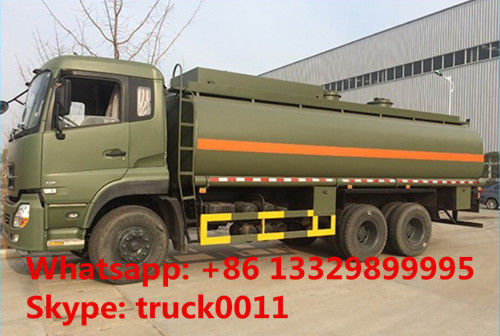

More pictures of dongfeng 6*4 24,000L fuel tank truck as below.
Fuel tank mainly used for oil derivatives’s (gasoline, diesel, crude oil, lubricating oil and coal tar oil) transport and storage. Chengli special automobile co.,ltd. ,which is a famous manufacturer producing all kinds of special trucks.it can offer many kinds of oil tank trucks from 2000 liters to 40000 liters. Such as oil tank truck, fuel tanker truck, heavy oil tank truck, fuel oil tank truck,liquid tanker truck, gallon fuel tank truck,diesel oil tank truck,oil transportation tank truck,fuel tank cap truck, etc. And also support Customized. Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of fuel tank in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply Dongfeng fuel tank, ISUZU refueler truck, HOWO oil truck, Forland fuel dispenser truck, etc. More information, please feel free to contact with Ms. Anita.
