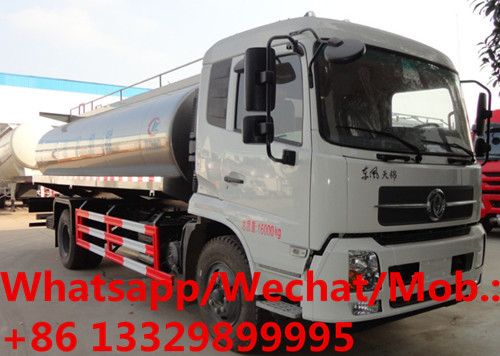

HOT SALE! Customized Dongfeng RHD 10,000Liters stainless steel foodgrade milk tanker truck for sale, good quality Liquid food transported tanker vehicle for sale
Chengli Special Automobile Co., Ltd. promote milk tanker truck at the beginning of 2014 year. Chengli Special Automobile Co., Ltd. milk tanker truck is also called milk tanker, milk delivery truck, milk refresh transportation truck, liquid food transfer truck, mainly used to transport fresh ewe’s milk, milk, fresh fruit juices, edible oil, bulk beer, etc. fresh milk delivery truck has the advantages of perfect insulation and anti-corrosive, assuring the products the temperature range changes between 1 ℃ within 24 hours.
Fresh milk truck transport milk among 3-28ton, fresh milk tanker semi-trailer can transport milk among 30-45ton.
The milk tanker adopts 304 food grade stainless steel , 70mm-80mm polyurethane foam insulation layer, 2mm thickness 304 stainless steel overwrap. Perfect manufacturing techniques, delicate outlook, high price ratio. Now it’s exported to 30 countries, welcome with the people.
If you're interested in our milk tanker truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Today, we will introduct hot sale dongfeng tianjin 4*2 RHD 190hp diesel 10,000Liters milk tanker truck manufactured by Chengli Special Automobile Co., Ltd. as below.
main technical parameters of dongfeng tianjin RHD 10cbm milk tanker truck as below.
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Dongfeng tianjin RHD Milk tank truck(10,000L) |
| Drive Type |
4*2 RHD(Right Hand Drive) |
| Fact Loading Weight(kg) |
10,000 |
| Curb Weight (kg) |
7400 |
| Total mass |
15800kgs |
| Overall Dimensions L*W*H(mm) |
8400×2460×3100(mm) |
| Engine |
Engine Brand |
B190 33 |
| Fuel Type |
Diesel |
| Power |
140KW/190hp |
| Emission Standard |
Euro Ⅲ |
| Displacement(ml) |
5900 |
| Chassis |
Chassis Brand |
DONGFENG luxurious one row and a half driver cab |
| Tire No. |
6 |
| Tire Specification |
10.00-20 |
| Wheelbase (mm) |
4500 |
| Axle No. |
2 |
| Axle load (kgs) |
5600/10200 |
| Approach/departure angle(°) |
20/12 |
| Steering Wheel |
Left Hand Drive |
| Gear Box |
8 speed forward with 1 reverse, manual |
| Brake |
air brake |
| Power steering |
Power steering with clutch booster |
| |
Electronic heating |
Yes |
| |
Air conditioner |
Choose to install |
| |
Exhaust braking |
Yes |
| Tank |
Tank Volume(L) |
10,000 |
| Tank Material |
Food grade 4mm thickness 304-2B stainless steel material |
| Compartment No.(pcs) |
Standard with 2-3 compartments(More compartments are selective), every compartment is with one set of PIC cleaning device |
| Insulated Layer Material |
PU foam 80mm thickness |
| Remarks |
Tank volume: 10000L with 2-3compartments; Adopting high quality food grade stainless steel material. The outer layer is with insulation layer to avoid the fresh milk going bad. The inner tanker is polished by the special equipment, and making sure no milk hanging. The inner tanker is smooth, non sharp angle, etc. There is CIP (cleaning device) installed. |
| There are three layers of the milk tank, the inner tanker is manufactured by 4mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 80mm PU foam of the manhole part, the temperature will be changed less than 1 degree within 24 hours; the exterior of the tank is 1mm thick 201 stainless steel mirror panel. |
The milk tanker truck is also called fresh milk transporter, milk tanker, liquid food transporter, mobile liquid food transported vehicle. The tank body is made of food grade stainless steel plate. The outer part of the tank body needs to be used as insulation layer to prevent the deterioration of fresh milk. The inside of the tank body needs smooth and no acute angle. A CIP (cleaning device) is added to each milk tank.
Fresh milk transport vehicle modification configuration: the tank structure is divided into three layers: insulation layer, insulation layer and tank body.
One. The body of the frame can be made of food grade 304 material stainless steel plate, and the tank body can be made into 2-3 cabins. The tank body requires smooth and no acute angle. A cip (cleaning device) tank is provided in each milk tank with a washer.
Second, the middle of the tank is an insulation layer, which has a heat preservation effect to prevent deterioration of fresh milk. The temperature change does not exceed 1 degree for 24 hours at a temperature difference of 30 degrees. The insulation material is insulated with 80 (mm) thick polyurethane foam material.
Third, the outer layer of the tank (protective layer of the insulation layer) is made of 2mm thick 304L stainless steel. The outer skin and trunk of stainless steel are beautiful in appearance, the whole body is beautiful in appearance, scientific in structure, light in weight and good in strength.
4. Each single warehouse has a separate discharge port (self-flow port) and a feed port (can port).
5. Optional chiller, rock wool insulation, exhaust gas circulation heating, and stainless steel pump to make the vehicle have a suction function
