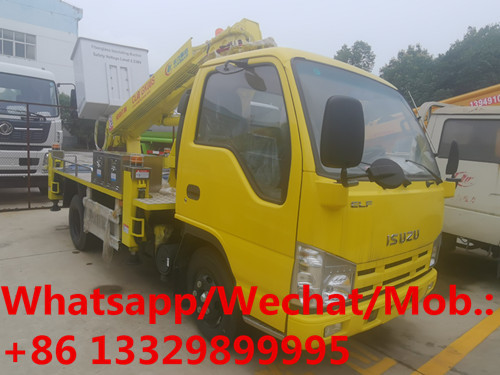

High quality ISUZU brand 4*2 single row 16m telescopic high altitude operation truck for sale, hydraulic aerial working truck for sale
Introduction and performance characteristics of aerial work trucks:
Function introduction of CLW brand telescopic type aerial working platform truck manufactured by Chengli Special Automobile Co.,Ltd. as below.
CLW straight boom aerial operating vehicle has operating heights of 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 21 meters, 28 meters, 29 meters, 45 meters, telescopic working boom, large outrigger span, stability Good, can be operated simultaneously or separately, safe and reliable, compact structure, convenient operation, fast lifting speed, high work efficiency. It is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
Isuzu 4*2 LHD 98hp Euro 5 diesel telescopic aerial working platform truck, adopts ISUZU 100P single row driver cab with air conditioner and power steering, Isuzu 4KH1CN5LS 98hp Euro 5 diesel engine, 3360mm wheelbase, ISUZU MSB 5 speed manual gearbox, 7.00R16 rail tires, double circuit oil brake , etc.
The working height is 16 meters, the color of the upper part is engineering yellow according to the announcement, with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 12 oil cylinders, the legs are front V and rear H type, emergency pump, bucket belt 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards.
If you're interested in ISUZU brand 16m telescopic aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
More pictures of ISUZU single row 16m telescopic aerial working platform truck as below.
Main technical parameters of ISUZU 16m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item |
Name |
Specification /model |
| 1 |
Truck name |
CLW brand telescopic aerial working platform truck for sale (single row) |
| 2 |
Truck model |
CLW |
| 3 |
Truck chassis |
ISUZU QL1040 |
| 4 |
Working height |
16m |
| 5 |
Main technical parameters |
Flatform ground height≥12.3m/14.3/15.3m
Flatform max working range: Open-ended
Flatform working height at the max working range: Open-ended
Platform max working range at the max working height: Open-ended
Plafrom max working Angle of Tilt: 80°
Rated mass of the working bucket: 200kg
|
| Outriggers |
Type: Front V + rear H type, Individually control
Outriggers nos.: 4
Control: Individually control or Linkage control
Transverse Span of front outriggers: 4170mm
Gradient: 120°
Transverse Span of rear outriggers: 3930mm
|
| Main operation |
Operation positio: revolving stage,Tele-operation.
Control type: ZYK Bus control system, electro-hydraulic proportional control system, realize stepless speed regulation
|
| 6 |
Coaming and platform |
Stainless steel fence and Non-slip platform |
| 7 |
Boom construction mode |
Three-section six-sided working arm,Synchronous scaling |
| 8 |
Rotator device |
Two-way 360° continuous rotation, 360° hanging basket |
| 9 |
Engine model |
|
| 10 |
Overall dimension(L*W*H) |
5950×1950×2750 |
| 11 |
Total mass |
4495kg |
| 12 |
Curb mass |
4365kg |
| 13 |
wheelbase |
3360mm |
