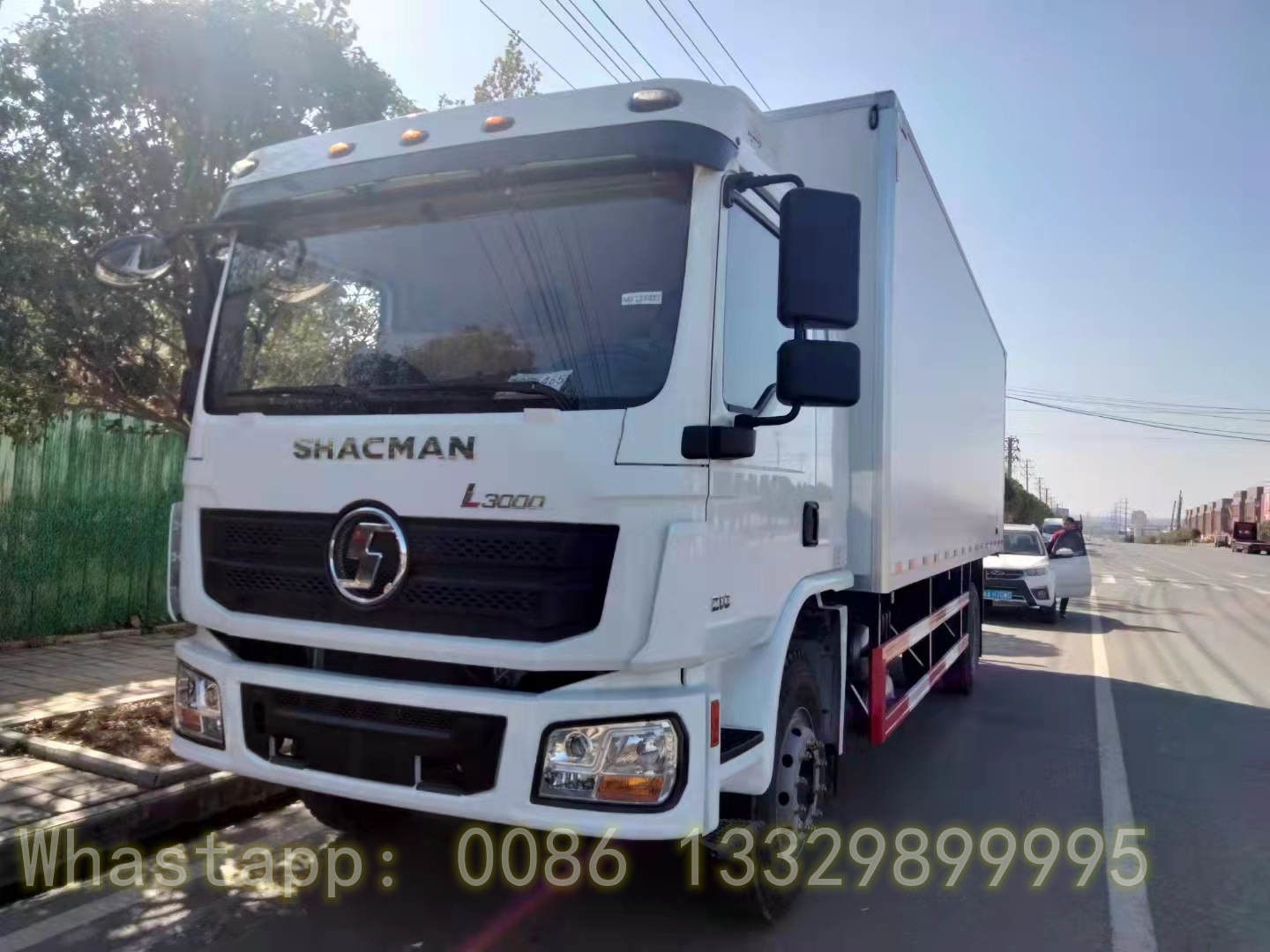

SHACMAN Brand 4*2 245hp diesel Euro 5 40cbm refrigerated truck for sale, good price SHACMAN 15T cold van box vehicle for sale
Customized Shacman Brand 4*2 LHD 245Hp diesel refrigerated truck, adopts SHACMAN brand L3000 one row and a half driver cab, 4700mm wheelbase, YC6J245-52 245hp diesel Euro 5 engine, 8JS95TM-C 8 speed manual gearbox, 4.8T front axle/10T rear axle, 200L steel oil tanker, 10.00R20 rail tires, air conditioner, etc.
The overall dimension of SHACMAN 4*2 L3000 refrigerated truck is 8450*2500,2550×3800,3850,3900,3950,3995(mm); while the reefer van box dimension(L*W*H): ,6200×2400,2450×2630,2670(mm). the real loading capacity of the SHACMAN brand 6.2m length refrigerated truck is about 15T. And real cubage of the SHACMAN brand refrigerated truck is 40cbm.
Exterior and interior of the SHACMAN brand cold van box vehicle are with FRP(Fiber Reinforced Plastic), and the middle with PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. double rear door opened. Choose high quality USA imported THERMO KING self-powered frozen refrigerating reefer , the lowest temperature is up to -15℃. And the reefer can be adjusted at the driver cab.
main technical parameters of SHACMAN Brand L3000 4*2 LHD 15T refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. is as below.
| Items |
Descriptions |
Specifications and Types |
General
|
Truck Name |
SHACMAN LHD Refrigerated truck for sale |
| Drive Type |
4*2 LHD (right hand drive is selective ) |
| Fact Loading capacity(kg) |
15T |
| Total mass(kgs) |
18000 |
| Curb Weight (kg) |
7105 |
| Approximate Overall Dimensions (mm) |
8450×2550×3850 |
| Cold van box body dimension(L*W*H) |
6200×2450×2630 |
Engine
|
Engine Model |
WP10.300E22 |
| Engine Brand |
WEICHAI |
| Fuel Type |
Diesel |
| Power |
220KW/300hp |
| Emission Standard |
Euro Ⅱ |
| Displacement(ml) |
9726ml |
| Cylinder nos. |
6 cylinders |
Chassis
|
Chassis Brand |
SHACMAN |
| Tire Specification |
6+1*10.00R20 |
| Wheelbase (mm) |
4700 |
| Axle No. |
2 |
| Axle |
4.8tons front axle/MAN 10tons rear axle |
| Steering Wheel |
Left hand drive |
| Gear Box |
8JS95TM-C 8 speed manual gearbox |
| Air-conditioner |
Original air conditioner |
| Driver cab |
SHACMAN L3000 One row and a half luxurious driver cab |
| Front/rear tread(mm) |
1900/1810 |
| Approach/departure angle(°) |
24/14 |
| Front/rear suspension(mm) |
1300/1950 |
| Max speed(km/h) |
89 |
Cold Room
|
Approximate Box inner dimension(mm) |
6200×2450×2630 |
| Box Side |
Exterior and interior with FRP(Fiber Reinforced Plastic), and the middle with 100mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
| Box Floor |
Baseboard adopts anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. |
| Doors |
Double rear doors open |
| Refrigerator Unit |
Reefer |
Choose high quality China or USA imported CARRIER vehicle-powered frozen refrigerated unit, the temperature can be up to -18℃. And the reefer can be adjusted at the driver cab. |
| Refrigerated temperature |
--15℃ to 0℃ |
If you're interested in our refrigerated truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
More pictures of Shacman brand 4*2 LHD 15T refrigerated truck is as below.
Hot sale! SHACMAN 15T refrigerated truck for sale
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
