High quality and best price FORLAND 4*2 LHD/RHD 2tons-3.2tons small truck with crane for sale, Factory sale good price FORLAND 2tons telescipuc boom moubnted on truck
Forland 2ton-3.2tons small truck mounted crane for sale
| forland 2ton-2.5tons small cargo truck with crane Main Technical Parameter |
| Product Model |
Forland Truck with crane for sale |
Gross Vehicle Weight (kg) |
4275 |
| Curb Weight (kg) |
2590 |
Overall Dimension(mm) |
5995×2165×2850 |
| Lifting Capacity(kg) |
2000-25ookgs |
Cargo body dimension(mm) |
3500×1900×400 |
| Axle No. |
2 |
Wheelbase (mm) |
3360 |
| Chassis Technical Parameter |
| Chassis Model |
BJ1073 |
Chassis Name |
Truck Chassis |
| Chassis Brand |
Forland |
Manufacturer |
forland Automobile Co., Ltd |
| Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6 with 1 spare tyre |
| App./ Dep. Angle(º) |
9/11+8 |
Tyre Spec. |
6.50-16 |
| Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1730 |
| Fuel Type |
Diesel |
Rear Track (mm) |
1655 |
| Drive Type |
4x2 |
Brake System |
Air brake or oil brake |
| Axles |
4tons rear axle |
Gear Box |
5 speed forward and 1 reverse |
| Driver cab |
Forland 4*2 LHD D1695 single row driver cab (RHD is selective) |
| Engine Technical Parameter |
| Engine Model |
4DW91 63NG2 |
Emission Standard |
Euro II |
| Displacement ( mL ) |
2545 |
Power (hp) |
98hp |
| Engine manufacturer |
Xichai diesel engine |
| |
|
|
|
|
If you're interested in our forland small truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Forland 4*2 LHD small truck with crane, adopts LHD 4*2 original chassis, xichai diesel 98hp, 3360mm wheelbase, 5 speed transmission, 4ton rear axles, etc.
The overall dimension of forland truck mounted crane is 5995×2165×2850(mm), and the cargo body dimension: 3500×1900×400(mm). forland brand truck crane choose CLW brand 2tons knuckle boom or 2.5tons telescopic boom. Or XCMG 2ton telescopic boom, ect.
And chosen Chengliwei 2.5ton straight arm/2ton folded arm or XCMG 2ton straight arm, etc.

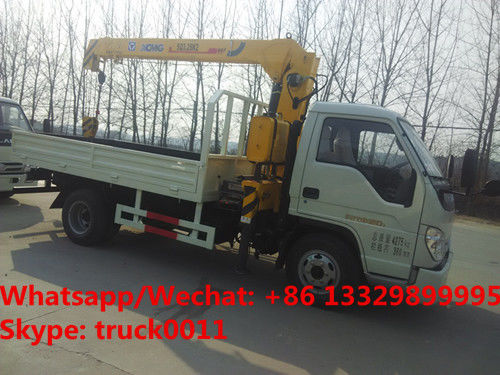

More pictures of forland brand truck with crane as below
high quality and competitive price forland 4*2 LHD diesel truck with crane for sale
Factory sale best price forland cargo truck with crane
Chengli Special Automobile Co., Ltd. can also design and produce small truck with crane, dump truck with crane, cargo truck with crane, etc.
| Crane model |
SQ2.5SA1 (2.5ton 2 section straight boom) |
| Max lift mass (kg) |
2500 |
| Max lift force moment (n.m) |
60000 |
| Profile |
Hexagon |
slewing |
Slewing speed(r/min) |
2.5 |
| Numbers of sections |
2(2 extended boom) |
Slewing range |
360(°) |
| Length (m) |
3.5-5.38 |
Outrigger |
Type |
Up-right supported outrigger |
| Max working radius(m) |
5.38 |
Outrigger dimension(m) |
1．85-3.1 |
| Extended speed(m/s) |
3/30 |
Hydraulic system |
Pressure (mpa) |
16 |
| Luffing range |
0-73° |
Oil tanker volume (L) |
40 |
| Elevation-up speed(°/s) |
73/14°/s |
Safety device |
Stop alarm |
| Max lift height(m) |
7.3 |
Curb mass(kg) |
950 |
| The single rope allowable load (N) |
6250 |
Suitable truck |
Above 1 ton load truck |
| Max single rope speed(m/min) |
36 |
Remark: this is the rated parameters for the system flow of 1500L/min. |
| rope diameter(mm) |
8 |
| Rope length (m) |
45 |
| Working radius(m) |
2.5 |
3.0 |
4.0 |
5.38 |
| Rated mass(kg) |
2500 |
1880 |
1080 |
700 |
The CLW 2ton folded crane main parameters
| Max lift mass(kg) |
2000kg |
Oil tanker volume |
30L |
| Max lift force moment |
4 T.m |
Slewing angle |
400 |
| Suggested power |
7KW |
Crane curb mass |
850kg |
| Hydraulic system flow |
20L/min |
Install room |
800mm |
| Hydraulic system rated pressure |
22MPa |
Sutiable chassis boom width |
600-900mm |
Chengli Special Automobile Co.,Ltd is a well-known manufacturer of landscaping, petrochemical, municipal sanitation, pressure vessels, special purpose vehicle, etc. More information, please contact Ms. Anita Deng.
