best beller-factory sale dongfeng tianjin 10CBM road sweeping vehicle for sale, street sweeper cleaning truck for sale,
|
1,.the standard device
The road sweeper trucks manufactured are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
|
|
Truck model
|
CLW5160TSL4 dongfeng Tianjin road sweeper truck for sale
|
Remark
|
|
Chassis model
|
DFL1160BX5; DFL1160BX4
|
|
|
Wheelbase
|
4700; 4500
|
|
|
Front suspension
|
1430/1960 mm
|
|
|
Rear suspension
|
1430/2070 mm
|
|
|
Engine model
|
Chassis engine model
|
ISDe210 40；ISDe180 40；ISDe185 40；EQH180‐40；ISB180 40；ISB210 40
|
|
|
ISDe210 40；ISDe180 40；ISDe185 40；EQH180‐40；ISB180 40
|
|
|
Auxiliary engine
|
B140
|
|
|
Engine power
|
Truck Chassis engine power
|
155；132；136；132；132；155 kW
|
|
|
155；132；136；132；132 kW
|
|
|
Auxiliary engine power
|
103 kW
|
|
|
Maximum climbing angle
|
30%
|
|
|
Displacement emission standard
|
Euro Ⅳ, Euro Ⅲ,
|
|
|
Outside-automobile noisy in the accelerating
|
≤84dB(A),meeting the noisy of Second stage requirements
|
|
|
Max speed
|
90 km/h
|
|
|
Approach angle
|
20°
|
|
|
20°
|
|
|
Departure angle
|
12°
|
|
|
15°
|
|
|
Weight mass
|
Curb weight
|
9750 kg
|
|
|
9805 kg
|
|
|
Max total weight
|
16000 kg
|
|
|
16000 kg
|
|
|
Dimension
|
Overall dimension(L*W*H)
|
8090×2470×3050 mm
|
|
|
8000×2470×3160 mm
|
|
|
Mini ground clearance
|
240 mm
|
|
|
Sweeping and sucking worki
|
Sweeping efficiency
|
≥95%
|
|
|
Max sucking granularity
|
120mm
|
|
|
Sucking-sweeping width
|
3.2-3.5m
|
|
|
Max sweeping ability
|
70000 m2/h
|
|
|
|
Extension dimension of dish brush
|
≥400 mm
|
|
|
Tank
|
Water tank volume
|
3.0 m³
|
|
|
Wastes van
|
Wastes van volume
|
7.2 m³
|
|
|
Wastes van loading capacity
|
≥45°
|
|
|
Hydraulic system
|
Type
|
Open-type, electronic-control
|
|
|
Main units
|
Gear pump, hydraulic motor, hydraulic cylinders, solenoid valve,
|
|
|
System pressure
|
16MPa
|
|
|
Hydraulic oil tank volume
|
60L
|
|
|
Oil temperature
|
60 ˚C
|
|
|
Electronic
|
Type
|
DC24V
|
|
|
voltage
|
24V
|
|
|
Storage battery
|
24V((2 sets of 12V in series))
|
|
|
Water sprinkling system
|
Main units
|
Electronic diaphragm pump, water filter, nozzles,
|
|
|
Sweeping disks device
|
Type
|
4 sets of sweeping disks middle-installed driving by hydraulic motor;
The right-front one can work separately, with the function of dodge and repeat working
|
|
|
Diameter
|
850mm
|
|
|
Angle
|
ante version:4-6 °; extroversion: 4-7°
|
|
|
Sucking disk
|
Type
|
Single sucking, hydraulic-control, springs
|
|
|
Sucking diameter
|
200mm
|
|
| |
|
|
|
|
2, spare parts
| Item |
Name |
Nos. |
Remark |
| 1 |
fire fighting hose |
1 |
For adding water |
| 2 |
fire fighting wrench |
1 |
For disassembling fire hydrant |
| 3 |
Manual rocker for hydraulic pump |
1 |
For manual starting the hydraulic pump |
| 4 |
Spare tyre(with the truck) |
1 |
|
3, spare parts
| Item |
Name |
Nos. |
|
| 1 |
Brushing |
80 |
|
| 2 |
weather-strip of fan |
1 |
|
| 3 |
weather-strip of rear door |
1 |
|
4,imported device
| Items |
Name |
Model |
Country |
| 1 |
Hydraulic motor |
BMR125 |
Item |
| 2 |
Hydraulic valve |
SWH-G02-C4-D2H |
Taiwan |
If you're interested in our road sweeping truck, please send email to truck0011@163.com or talk to Anita Whatsapp/Wechat/Mob.: +86 13329899995.

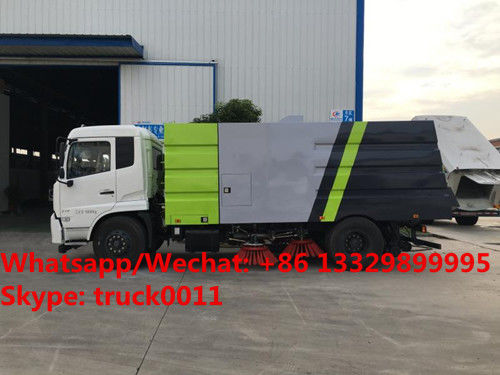

More pictures of Dongfeng tianjin road sweeping truck mnaufactured by Chengli Special Automobile Co., Ltd. as below.
customized dongfeng tianjin road sweeping vehicle for sale
high quality and competitive price dongfeng 190hp street sweeper truck for sale
The functional advantages of CLW brand road sweeping vehicles manufactured by Chengli Special Automobile Co., Ltd. as below
1, Collecting wastes by sucking and sweeping, wet dust removal, electro-hydraulic control, hydraulic dumping and unloading operation mode to clean the road surface.
2, The auxiliary engine is used to drive the fan and hydraulic system to ensure continuous operation during the driving process and to ensure the continuity of the cleaning process.
3, the CLW brand road sweeper truck adopts the structure arrangement of "medium four-disc brush + rear suction nozzle" , which is convenient for the adjustment and maintenance of the cleaning device and the suction nozzle, and the vehicle passing performance is good when the transition occurs.
4, The transmission between the auxiliary engine and the fan is equipped with an automatic clutch, which can ensure the automatic separation of the auxiliary engine from the fan during the no-load start and stop, reducing the impact on the auxiliary engine, and improving the working reliability and service life of the auxiliary engine.
5, According to different cleaning conditions, without increasing the throttle of the auxiliary machine, the three-speed speed control of the high, medium and low levels of the sweeping plate can be achieved, which can ensure good cleaning effect under various pollution conditions, and save fuel consumption and loss of bristles.
7,The fully floating nozzle can be automatically leveled with the road surface, which has good vacuuming effect and long service life.
8, Imported hydraulic valve block can ensure the stability and smoothness of the hydraulic operation of the whole vehicle.
9, High-quality hydraulic motor can ensure the working stability of the sweeping disc and long service life.
10, The ejected dust suction pipe made of imported raw materials can effectively prevent the dust suction pipe from being broken, cracked and increased, and the service life is increased. .
11, the precision seamless cold-bending hydraulic oil pipe has no oxidizing impurities on the inner wall to ensure the hydraulic oil circuit is clean and does not block the valve.
12, The high-performance engineering plastic spacer is used in the sweeping brush arm, which has good wear resistance, no butter and maintenance-free, saving manpower and material resources.
13, Stainless steel water tank and garbage bin can resist general corrosion and increase the service life of the cabinet.
14, The extra wide rear door and an opening angle greater than 85 degrees make it easier to dump the trash and clean the bin.
15, The dump bin tipping angle is greater than 46 degrees, making it easy to dump garbage.
16, Our CLW brand road sweeping truck can be equipped with front punch, back sprinkler, spray, self-cleaning reel, operation monitoring system, auxiliary suction device, snow shovel, etc.
