Customized dongfeng 4*2 LHD dump truck with 2tons telescopic boom for Philippines, HOT SALE! 2tons telescopic boom mounted onm dump tipper truck
dongfeng brand 4*2 LHD dump truck with 2tons telescopic boom, adopts dongfeng original truck chassis, 3300mm wheelbase, chaochai 95hp diesel Euro 3 diesel engine, 5 speed gearbox, 7.00-16 nylon tires, 2tons front axle/4tons rear axle, etc.
The telescopic boom choose China made high quality 2tons telescopic boom (2 sections), the dump box body dimension(L*W*H): 2950*1880*400(mm), middle installed double hydraulic cylinders lifting, rear door opened type.
Approximate Overall dimension(L*W*H): 5650*2000*2950(mm).
If you're interested in our dump truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

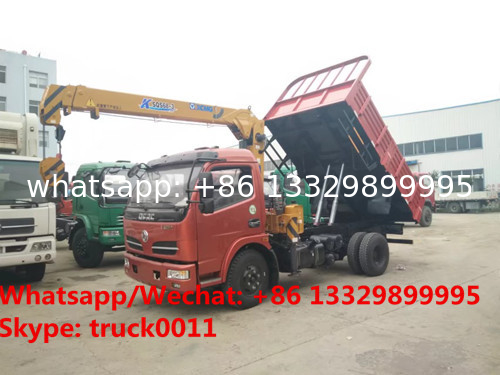

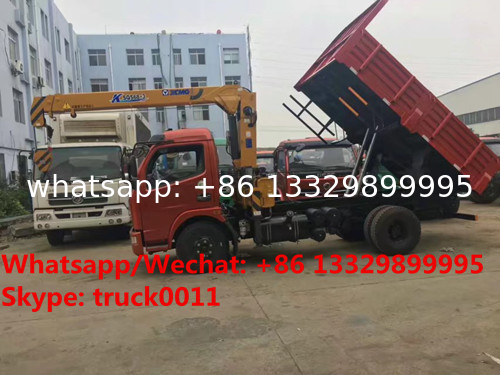

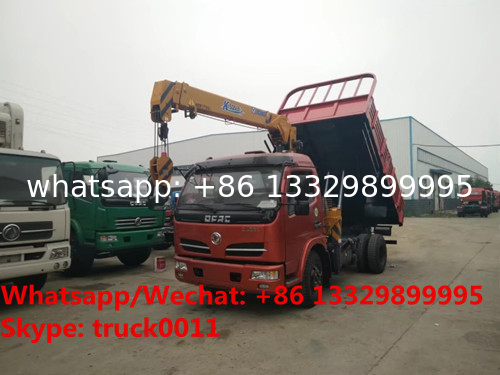

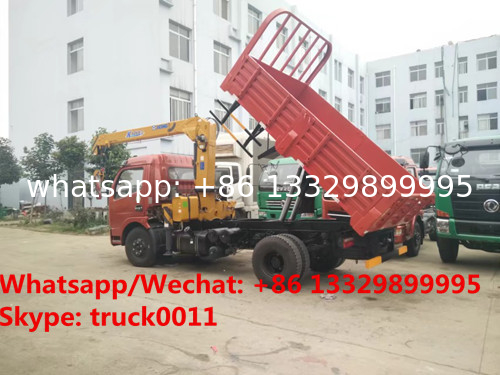

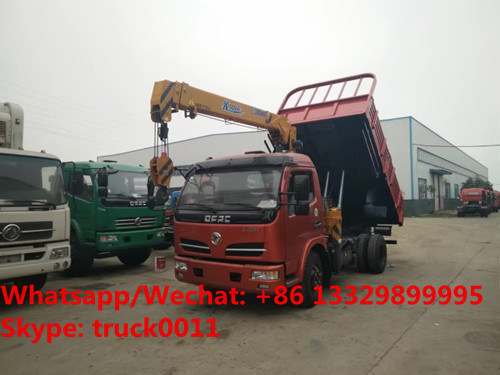

More pictures of dongfeng 2tons dump truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below
main technical parameters of dongfeng 2tons dump truck with crane manufactured by Chengli Special Automobile Co., Ltd. as below.
| Dongfeng 2tons-2.5ton small dump truck with crane Main Technical Parameter |
| Product Model |
2-2.5tons telescopic truck with crane |
Gross Vehicle Weight (kg) |
6495 |
| Curb Weight (kg) |
3865 |
Overall Dimension(mm) |
5995x1980x2950 |
| Lifting Capacity(kg) |
2000-2500 |
Dump body dimension(mm) |
2950*1880*400 |
| Axle No. |
2 |
Wheelbase (mm) |
3300 |
| Chassis Technical Parameter |
| Chassis Model |
EQ1060 |
Chassis Name |
Truck Chassis |
| Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co., Ltd |
| Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6+1 |
| App./ Dep. Angle(º) |
19/15 |
Tyre Spec. |
7.00-16 |
| Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1506 |
| Fuel Type |
Diesel |
Rear Track (mm) |
1466 |
| Drive Type |
4x2 |
Brake System |
Air brake |
| Steering Type |
Circulate ball |
Gear Box |
5 speed forward and 1 reverse |
| Engine Technical Parameter |
| Engine Model |
CY4102-C3F |
Emission Standard |
Euro III |
| Displacement ( mL ) |
3856 |
Power (hp/kw) |
95hp/70kw |
| Cylinder No. |
4 cylinders in line |
Engine Type |
Water cooling, four stroke, inter-cooling charged, |
| Dump box body parameters |
| Dump box body dimension(L*W*H)(mm) |
2950*1880*400 |
Open type |
Rear door opened |
| Side thickness |
3mm thickness |
Bottom thickness |
4mm thickness |
| Lifting way |
Middle installed double cylinders lifting |
| Crane boom technical parameters |
| Crane boom model |
2tons-2.5tons telescopic boom with 2 sections |
| Lifting mass |
2,000kgs-2,500kgs |
| Working height |
7.5m working height |
| Working radius |
5.5m |
| crane boom mass |
900kgs |
| Crane boom function |
Full hydraulic, 360°swing. |
| |
|
|
|
|
dongfeng brand 4*2 LHD dump truck with 2tons telescopic boom, adopts dongfeng original truck chassis, 3300mm wheelbase, chaochai 95hp diesel Euro 3 diesel engine, 5 speed gearbox, 7.00-16 nylon tires, 2tons front axle/4tons rear axle, etc.
The telescopic boom choose China made high quality 2tons telescopic boom (2 sections), the dump box body dimension(L*W*H): 2950*1880*400(mm), middle installed double hydraulic cylinders lifting, rear door opened type.
Approximate Overall dimension(L*W*H): 5650*2000*2950(mm).
More information, please feel free to contact with Ms. Anita.
Whatsapp/Wechat/Mob.: +86 13329899995
SKype: truck0011
Email: truck0011@163.com
