Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck with crane in China. With many years’development, Chengli Special Automobile Co., Ltd. could manufacture and export 4*2 truck with crane, 4*4 cargo truck with crane, 6*4 dump truck with crane, 8*4 truck mounted crane, etc. And our CLW brand truck mounted crane are from 1tons to 20tons and heavy duty.
The truck mounted concrete pump is also called concrete pump, concrete pump truck, concrete mixer with pump, portable concrete mixer and pump, etc.
The truck mounted concrete pump we produce are with good quality, best price. We have one small mixer truck with pump. It is one multifunctional truck, which can be used as concrete mixer truck and concrete pump truck. The mixing volume is 0.5 cubic meters and the vertical pump height is 30 meter.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of truck mounted crane in China. With many years'experience in supplying, Chengli Special Automobile Co., Ltd. can supply Dongfeng truck mounted crane, Foton crane truck, HOWO truck with crane, ISUZU cargo truck with crane, FAW truck with crane, etc. More information, please feel free to contact with us.
100tons/150tons/200tons crane truck, etc. More information, please feel free to contact with Ms. Anita. If you're interested in our truck mounted crane, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.

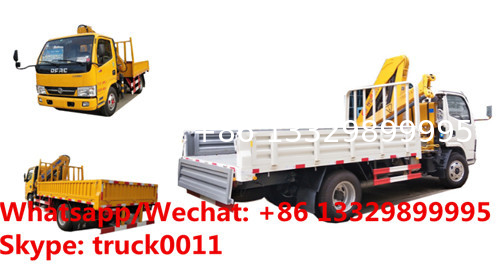

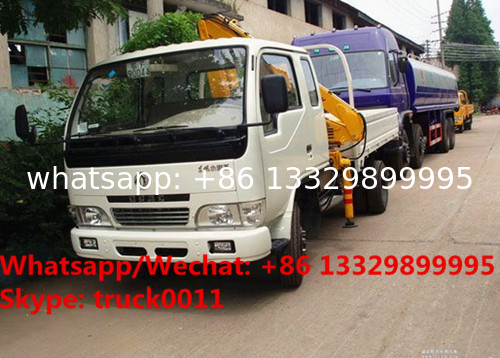

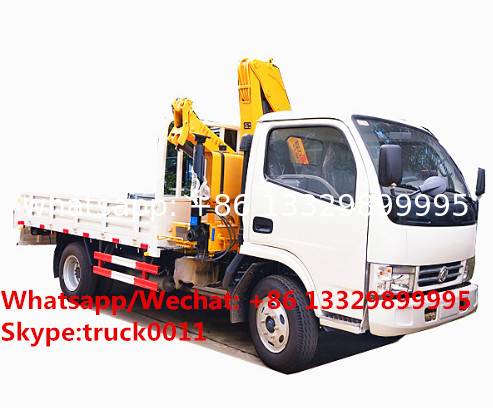

More pictures of dongfeng 2tons folded crane boom mounted on truck manufactured by Chengli Special Automobile Co., Ltd. as below.
high quality and competitive price dongfeng 2tons folded crane boom mounted on truck for sale
HOT SALE! best price Dongfeng 4*2 LHD 2T folded truck with crane for sale
main technical parameters of dongfeng brand 2tons folded truck with crane as below.
| Product name |
Dongfeng 4*2 LHD/RHD 2tons folded crane boom mounted on truck for sale (CLW5060JSQ3) |
| Chassis type |
EQ1110T9ADJ3AC |
| Parameters |
Overall dimension length/width/height (mm) |
5995×1980×2950 |
| Cargo body dimension (L*W*H)(mm) |
3500×1880×400 |
| GVW(kg) |
3865 (Kg) |
| Kerb Mass(kg) |
2500 (Kg) |
| Rated mass(kg) |
5970(Kg) |
| Approach angle/ Departure angle(mm) |
19/15 (°) |
| Front suspension/rear suspension(mm) |
1032/1663 |
| Fuel Type |
diesel |
| Max Speed |
90 |
| Engine |
Type |
CY4100Q |
| Displacement/Power(kw) |
3856ml/70KW/95hp |
| Manufacturer |
Dongfeng chaochai diesel Co.,Ltd |
| Type |
4-in-line inter-cooling; intercooling |
| Chassis |
Drive Type |
4×2 |
| Wheelbase(mm) |
3300 |
| Tread(front/rear) |
1506/1466 (mm) |
| Transmission |
5 forward gear,1 reverse gear, mechanical transmission |
| Braking system |
Air braking |
| Cab |
Dongfeng single row driver cab |
| Number of spring axle(front/rear) |
1506 |
| Tire Type |
7.00-16 |
| Air-condition |
Choose to fix |
| Upper part(cargo van and crane boom) main parameters |
| Upper body |
Cargo body dimension |
3500×1880×400 |
| Material |
Carbon steel |
| Side sheet thickness |
2mm thickness |
| Bottom sheet thickness |
2mm thickness |
| Painting |
Upon request |
| Crane boom main parameters |
| Crane boom |
Choose to install CLW brand 2T 2 sections folded crane boom |
| The color of the whole truck is upon request. |
