HOT SALE! DONGFENG TIANJIN 190hp diesel 5.8m length day old chick van transported truck for day old chick truck, livestock poultry baby chick truck for sale
Livestock and poultry transport van truck, also called day old chicken livestock transport truck, day old chicken loading transportation truck, day old chicken transportation truck chicken transport truck, chicks transport truck, is specially designed and produced for transporting living livestocks or poultries, such as piggy, chick, baby sheep, baby cow, etc. With its insulation van box, refrigeration unit,cooling system, ventilation system, water supply, safety measures, reasonable structures to guarantee a high survival rate during transportation.
It is mainly for professional transporting day old chicks, day old ducks, baby goose, flowers, seedlings, etc. a good tools to improve efficiency and reduce transporting cost.
There are ventilation and heating system inside the farm poultry transported truck. There are several electronic ventilator fans (according to the length of the insulation van) on the top for ventilating, assuring offering enough oxygen for the baby young chicks/ducks/ gooses in the van. There are several windows (according to the length of the chick box body) for ventilating, heating, oxygen-offering.
The advantages of the day old ducks truck are rainproof, dustproof, theft-proof, environmental protection, high efficiency, ventilating, insulation, large loading capacity, etc.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of van truck in China. With many years’ development, Chengli Special Automobile Co., Ltd. could supply refrigerated truck, insualtion body van box, cargo van truck, baby chick transported truck, etc. And our CLW brand van truck have been exported to many countries all over the world. More information, please feel free to contact with Ms. Anita.
If you're interested in our day old chick transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Today, we will introduce dongfeng tianjin 5.8m length livestock poultry van truck for day old chick transported manufactured by Chengli Special Automobile Co., Ltd. as below.
Overall dimension (L*W*H)(mm): 8500*2490*3850
Chick van box dimension(L*W*H)mm: 5800*2280*2360 (mm).

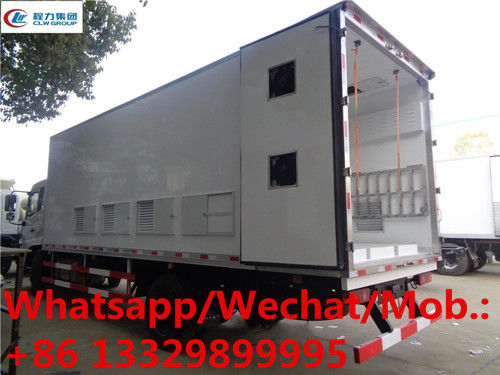

More pictures of dongfeng tianjin 5.8m length baby chick refrigerated truck as below.
main technical parameters of Dongfeng tianjin LHD 4*2 day old chick transported truck as below.
| Product name |
Dongfeng tianjin LHD 4*2 day old chick transported truck |
| Overall dimension(L*W*H)(mm) |
8500×2490×3850 |
Chick van box dimension(L*W*H)mm |
5800*2280*2360 (mm).
|
| Drive type |
4*2 LHD, RHD is selective |
Total mass |
15800 |
| Gearbox |
8 speed gear box |
Tyre specification |
10.00R20 tyres *6+1 |
| Power steering |
Yes |
Exhaust braking |
Yes |
| Air-cut braking |
Yes |
Driver cab |
Dongfeng TIANJIN 4*2 luxurious one and a half driver cab |
| Engine |
Cummins 190hp B190 33 |
Emission standard |
Euro 3 |
| Wheelbase(mm) |
4500 |
F/R axle loading |
5tons/10tons |
Main parameters for the chick van box as below.
| Performance and consumption |
| Heating system |
Watering system |
No |
| Cooling system |
One refrigerated reefer |
China-made or USA CARRIER high quality vehicle-powered refrigerated reefer( the lowest temperature inside the cold room box up to -10℃, adjusted at the driver cab) |
| Ventilation system |
Cold air ducts on the two sides of the van body |
Two cold air ducts for the refrigerated reefer |
| Blind windows |
5 sets of blind windows with openable doors for the left and right van sides (as the pictures show), 2 sets of blind windows for the front plate.
Blind Windows: 5*2+2=12
|
| electronic ventilator fans |
1, 4 sets of electronic ventilator fans with sliding doors for the rear plate door; 4*2 sets of electronic ventilator fans for the van top
Electronic fans: 4+4*2=12
|
| |
Sky-window |
Top mounted sky windows*2 Sky-windows: 2 |
| Dimension |
| Chick van box body |
Length |
5800mm |
| Width |
2280mm |
| Height |
2360m |
| Refrigerated van box |
Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices;
Aluminum-patterned baseplate;
|
