HOT SALE! IVECO HONGYAN 22m hydraulic aerial working platform truck, high altitude operation vehicle for sale
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng.
Aerial work platform truck, also called high altitude operation truck, is specially designed and produced for aerial work or operation, such as repairing road lights, maintain high buildings, windows, hanging ad boards, power grid maintenance, etc.
The technical advantages of CLW brand aerial platform vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1. Aerial platform vehicles is also named high-altitude operation truck, refers to the special vehicles for aerial operation with the delivery of staff and the equipment to the scene.
2. We are professional factory, supply Dongfeng aerial vehicles, JMC aerial working vehicles, JAC aerial platform vehicles, Qingling high-altitude working truck, Foton aerial platform operating vehicles, etc., working height of 8-24 meters for choose.
3. Produced by the high-altitude operation vehicles, using double lift hydraulic cylinder, up and down a total of four hydraulic cylinders, the conventional aerial vehicles only two lifting cylinders, double lift hydraulic cylinder in the lift, rotation process does not tremble, do not shake, stability Sex, safety is better.
4. High-altitude operation vehicles using domestic or imported reversing valve and hydraulic cylinder, for the balance, flexible and convenient operation, outrigger and work arm interlocking, outrigger and work arm interlock to prevent misuse over.
5. Installed four hydraulic legs, to ensure vehicle stability and safety in operation.
6. Optional aerial crane hook, hook hanging 1 ton and the electronic control system.
7. Aerial platform vehicles can be up and down operation, 360-degree rotation, install the hand throttle.
8. If you have any special requirements for the aerial vehicles, please let us know, we can design for you.
If you're interested in our aerial working platform truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.:+86 13329899995.

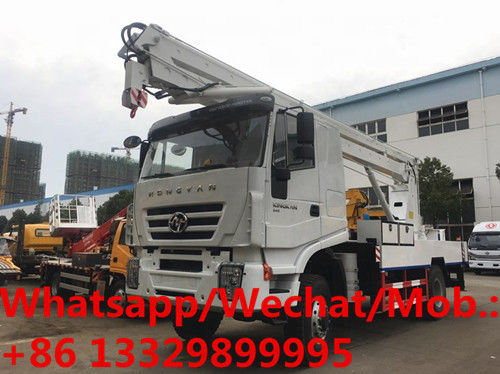

More pictures of IVECO-HONGYAN brand 22m hydraulic bucket truck as below.
main technical parameters of IVECO-HONGYAN brand 22m aerial working platform truck as below.
| Detailed Specification |
| 1 |
Working height |
22M |
| 2 |
Main technical parameters of operation |
Maximum working radius: 9.5m
Working height at maximum working radius:12.2m
Rotation way: ±360° continuous
Rated load of working bucket: 200kg
|
| 3 |
Outrigger |
Outrigger: H type
Quantity: 4
Control: The legs can be controlled separately, interlocking with each other
|
| 4 |
Main operation |
Mode of operation:twist switch
|
| 5 |
Boom structure |
Two-position operation of turntable and gondola |
| 6 |
Slewing device |
Two-way 360-degree continuous rotation |
| 7 |
Upper body main configuration |
Rear leg strobe light:2 PCS
The maximum lifting range :10.2M
Leg span: longitudinal X transverse (mm):
|
