Place of Origin: | China |
Brand Name: | CLW |
Certification: | CCC, ISO 9001 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | negotiable |
Packaging Details: | in bulk package, waxed |
Delivery Time: | 20 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 20units/month |
Color: | Different Color Upon Request, Free To Paint Company Logo | Price: | High Quality Factory Direct Sale Price |
---|---|---|---|
Truck Chassis: | Chinamade ISUZU LHD Diesel Truck Chassis | LED SCREEN: | High Quality Outdoor Shakeproof And Waterproof Colorful P4/p5/p6 LED Screen |
Generator Unit: | Gasoline/ Diesel Generator Unit |
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of Outdoor mobile LED advertising display truck, LED truck, digital advertising truck, LED screen truck, outdoor full color LED advertising truck, LED box truck, etc. With many years' experience in supplying, Chengli Special Automobile Co., Ltd. could design and produce ISUZU led truck, Dongfeng Outdoor mobile LED advertising display truck, forland digital advertising truck, Karry billboard advertising LED display truck, Chang'an LED display truck, JAC mobile advertising truck, HOWO scrolling advertising truck, trailer-type mobile outdoor LED truck, etc. More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
main technical advantages of customized 3 sides P5 LED billboard LED mounted on truck chassis as below.
1. Our LED display vehicles can be customizable. We provide LED display trucks, LED display trailer, LED display semi-trailer, etc.
2. One side waterproof P4/P5/P6/P8 full color led screen. The other side advertising light box with subtitle. The rear side monochrome screen to display text.
3. Optional1-side, 2-sides or 3 sides full-color led screens. Brightness can be adjusted automatically according to different surroundings.
4. Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck advertising, sports stadium advertising etc.
5. The pixel's pitch for the LED screen could be P6, P5, P4 etc.
6. The area of the left or right screen mainly ranges from 3.22 m3 to 12.2 m3.
The basic equipment includes silent generator, aluminum checkered plate wall, waterproof leather or wooden floors, safe and intelligent switch power distribution system, integrated electromechanical control, lighting, circulating ventilation fans, shockproof computers, and gigabit media control system, stereos, one amplifier, four waterproof column loud speakers, and other tiny accessory facilities within the body.
If you're interested in our mobile LED advertising truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.:0086 13329899995.

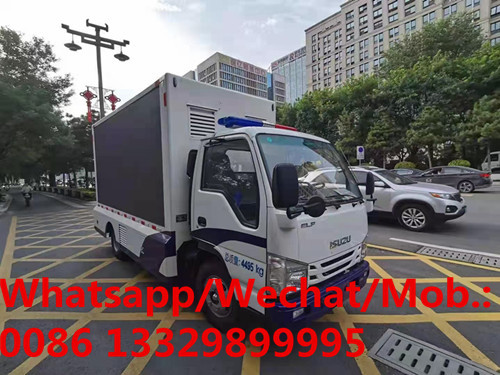

Today, we will introduce hot sale ISUZU brand diesel mobile led screen vehicle as below.
More pictures of ISUZU brand 4*2 LHD diesel mobile LED advertising truck as below.
main technical parameters of ISUZU mobile LED screen vehicle as below.
ISUZU 4*2 LHD mobile LED vehicle for sale(with one side/two sides P5 LED screen) main parameters | |||
Product name | New ISUZU brand 4*2 LHD mobile LED screen truck with one side /two sides P5 LED screens for sale | ||
Overall dimension(L*W*H) | 5995×2040×2990(mm) | Truck chassis model | QL1040A6HAY |
Total mass(kgs) | 4495kgs | curb mass(kgs) | 4365kg |
Axle nos. | 2 | Wheelbase(mm) | 3360mm |
Front/rear suspension(mm) | 1015/1620 | Front/rear tread(mm) | 1377/1425 |
Rated person | 2 (driver included) | Tyre specification | 7.00R16 rail tires*6 |
Max speed(km/h) | 98 | Approach/departure angle | 24/12(°) |
Axle load(kgs) | 1865/2690 | Steel spring | 3/3+2 |
Gearbox | ISUZU MSB 5 speed gearbox, manual | Power steering | Yes |
brake | Oil cut brake with vacuum booster | Driver cab | ISUZU 100P single row luxurious driver cab with original air conditioner and engine brake |
Engine model |
4KH1CN5LS
|
Emission standard | Euro Ⅴ |
Displacement(ml) | 2999ml | Rated power | 72KW/98hp |
Fuel type | Diesel | ||
Truck mounted LED screen | |||
1
|
two sides of the driver cab are with high quality HD waterproof and shake-proof full color outdoor P5 LED screens ( One side P5 screen area: 3840*1760=6.75㎡) | ||
2 | The rear back face is also with single color word LED screen(rear door single color word LED screen area: 1280*1440=1.84㎡) | ||
3 | One side(left or right side) P5 LED screen can be hydraulic sliding up-down(1.5m); 10㎡ platform stage with double outriggers. | ||
4 | Truck mounted silence diesel generator adopts high quality OUMA 15KW diesel generator unit. | ||
5 |
1* high quality industrial computer, 1* amplifier 4 *waterproof Audios mains electricity interface, 30m power line 2*top-mounted sky-windows Top roof with high quality glass fiber-reinforced plastics( FRP), aluminum checkered plate floor |
||
Remark: the computer is with English words, English operation system and Software playback system HS code: 8705909990 |
