HOT SALE! ISUZU double cabs 14m working height hydraulic aerial working platfrom truck, good price 14m truck mounted aerial platform for sale
Main technical parameters of ISUZU Brand 600P 4*2 LHD diesel 14m telescopic aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
| Item |
Name |
Specification /model |
| 1 |
Truck name |
CLW brand telescopic aerial working platform truck for sale |
| 2 |
Truck model |
CLW |
| 3 |
Truck chassis |
ISUZU |
| 4 |
Working height |
14m/16m/17.5m |
| 5 |
Main technical parameters |
Flatform ground height≥12.3m/14.3m/15.3m
Flatform max working range: Open-ended
Flatform working height at the max working range: Open-ended
Platform max working range at the max working height: Open-ended
Plafrom max working Angle of Tilt: 80°
Rated mass of the working bucket: 200kg
|
| Outriggers |
Type: Front V + rear H type, Individually control
Outriggers nos. : 4
Control: Individually control or Linkage control
Transverse Span of front outriggers: 4170mm
Gradient: 120°
Transverse Span of rear outriggers: 3930mm
|
| Main operation |
Operation positio: revolving stage,Teleportation
Control type: ZYK Bus control system,electro-hydraulic proportional control system, realize stepless speed regulation
|
| 6 |
Coaming and platform |
Stainless steel fence and Non-slip platform |
| 7 |
Boom construction mode |
Three-section six-sided working arm,Synchronous scaling |
| 8 |
Rotator device |
Two-way 360° continuous rotation, 360° hanging basket |
| 9 |
Engine model |
4KH1CN5HS 96KW/130hp diesel engine |
| 10 |
Overall dimension(L*W*H) |
7930×2000×2960 |
| 11 |
Total mass |
6265kg |
| 12 |
Curb mass |
6040kg |
| 13 |
wheelbase |
3360mm |
If you're interested in our truck mounted aerial working platform, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

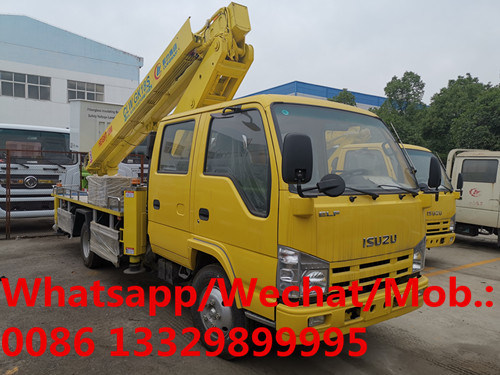

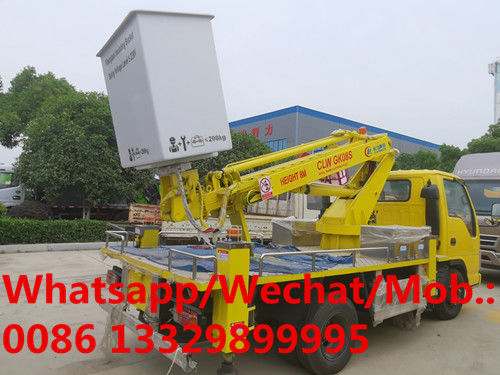

More pictures of ISUZU double cabs 14m telescopic aerial working platform truck is as below.
HOT SALE! ISUZU double cabs 14m telescopic type aerial working platform truck for sale
high quality and best price ISUZU double cabs telescopic aerial working platform truck
ISUZU 14m telescopic aerial working platform truck adopts ISUZU 600P double-row driver cab with air conditioner and power steering, 3360mm wheelbase, ISUZU 4KH1CN5HS 130hp diesel Euro 5 engine, Isuzu MSB 5 speed gearbox, 4.8tons rear axle, 7.00R16 rail tires, Double circuit oil brake, etc.
The working height is 14 meters, with four hydraulic telescopic legs (up and down extension and horizontal extension), a total of 12 oil cylinders, the legs are front V and rear H type, emergency pump, bucket belt 360 degrees Rotation, wireless remote control, and others are prepared according to factory standards.
The technical features and advantages of GK14S 14m telescopic aerial working platform truck is as below.
A. The whole vehicle has compact structure, short outline size, convenient driving and flexible steering.
B. The whole vehicle adopts a fully electronic control system with multiple safety protection functions.
1. Each outrigger has a soft leg support ground protection function (optional).
2. The outriggers are locked. When the boom is working, the outriggers are not allowed to operate (restricted movement).
3. The body is equipped with a large-screen display, which can display arm length, working height, working range, and tilt angle.
4, Equipped with a wireless remote control, the operating arm frame is protected when getting on and off the car.
Chengliwei straight boom aerial operating vehicle has operating heights of 12 meters, 14 meters, 16 meters, 18 meters, 20 meters, 21 meters, 28 meters, 29 meters, 45 meters, telescopic working boom, large outrigger span, stability Good, can be operated simultaneously or separately, safe and reliable, compact structure, convenient operation, fast lifting speed, high work efficiency. It is flexible and can work flexibly in tight high-rise buildings. It is the leader of aerial work vehicles and leads the new trend of the industry. It is widely used in installation, maintenance and climbing operations in such industries as municipal administration, electric power, street lights, advertising, communications, photography, gardening, shipbuilding, transportation, docks, airports and ports, emergency rescue, and large industrial and mining enterprises.
