HOT SALE! new price Dongfeng 18.5m folded truck mounted aerial working platform, High quality aerial working platform truck for sale
The main technical advantages of CLW brand folded truck mounted aerial working platform is as below.
a,The boom and outriggers are made of low-alloy high-strength profiles, no welds, beautiful appearance, and strong resistance to deformation.
b, The working bucket adopts an external mechanical self-balancing design, so that the working bucket is always in a balanced state when working.
c, The working bucket is equipped with night operation lights to make night operation safer.
d, Four hydraulic outriggers, with H-shaped structure, larger bearing surface and higher stability. Each hydraulic outrigger is individually adjustable and can be adjusted according to the working ground environment. Even if the ground is uneven, the whole vehicle can be stabilized by adjusting the outriggers.
e, The rear outriggers of the vehicle are equipped with warning outline lights to improve the safety of warnings during vehicle operation.
f, The working arm is a three-section folding type, with two upper and lower operating systems, and has a double working position of a working bucket and a turntable. Various operations can be completed on the working bucket and on the turntable. The getting on and off are interlocked, and the operation is safe and reliable. The throttle valve is used to achieve stepless speed regulation during the boarding operation. The throttle valve is equipped with a waterproof cover to prevent the valve from getting stuck in rust.
g, The turntable can rotate 360°, using a vertical/horizontal reducer, the torque is larger and safer than the worm gear.
h, The turntable and working bucket are equipped with remote start and stop switches to control the start and stop of the host. When the operating vehicle is parked at the operating point for a long time, the flameout switch can be turned on at this time to reduce fuel consumption, save energy and reduce emissions, and be more environmentally friendly and economical.
i, The hydraulic system is equipped with a hydraulic locking system, whose function is to lock the cylinder in place after reaching the required position to prevent accidents.
j, Use manual and electric integrated dual-purpose electromagnetic electric control multi-way valve to ensure that even if the circuit fails, the
Manual operation can be used to ensure the safety of personnel working at heights.
k, Steel toolbox and pattern anti-skid platform, stainless steel fence, beautiful layout, stable operation and maintenance convenient.

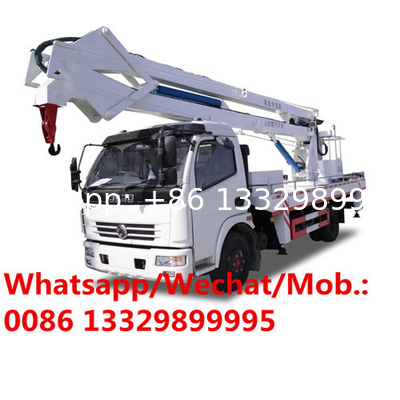

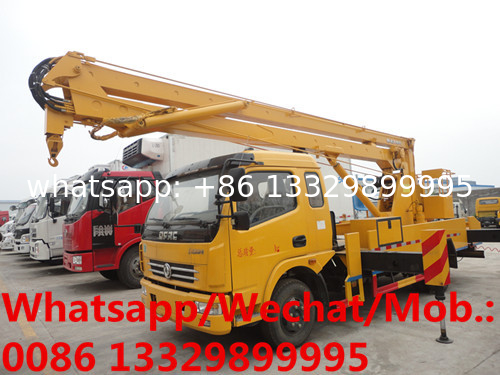

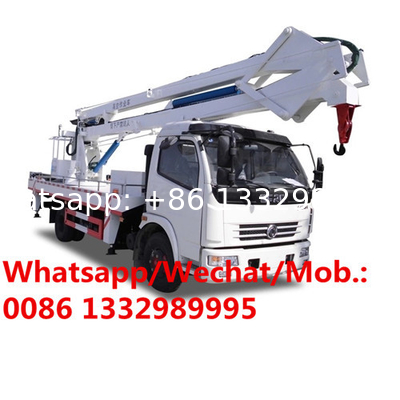

More pictures of Dongfeng duolika 18.5m truck mounted aerial working platform manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! dongfeng 18.5m truck mounted aerial working platform for sale
main technical parameters of Dongfeng duolika 18.5m truck mounted aerial working platform as below.
| Truck model |
CLW5070JGKZ3 |
| Main parameters of the whole vehicle |
Driver cab |
Single row, Reversible |
| Truck chassis model |
EQ1090 |
| Engine |
model |
Rated power(KW/hp) |
| CY4102C3C |
88/120 |
| Overall dimension(L*W*H)(mm) |
8600×2200,2320×3200,3350 |
| Total mass(kg) |
7400 |
Curb mass(kg) |
7205 |
| wheelbase(mm) |
3800 |
| Front/rear suspension(mm) |
1130/2470,1130/2360 |
|
Structure
and
special
parameters for the upper body
|
max working height(m) |
18.5m |
| Working range at the max working height(m) |
2.3m |
| Max working range(m) |
8.2m |
| Working height at the max working range(m) |
10.1m |
| Outriggers type |
H type |
| Outriggers Longitudinal span(mm) |
4650mm |
| Outriggers Horizontal span (mm) |
4220mm,4100mm |
| Max lifting height(hook centre)(m) |
8.4m |
| Max lifting mass (kg) |
1000kg |
| Working platform bucket dimension(L*W*H (mm) |
1200mm×610mm×1100mm |
| |
|
|
|
|
|
The truck mounted aerial working platform vehicle is a folding arm aerial operating vehicle according to the extension structure. Through the folding, luffing, and rotation of the working arm, the personnel, tools and materials are safely sent to the designated location for aerial work.
Working conditions
——The ground should be solid and level, the supporting force should meet the manufacturer's requirements, and the ground should not sink during the operation;
——The ambient temperature is -25℃～+40℃;
——Wind speed ≤12.5m/s (wind power level 6);
¬——Altitude ≤1000m;
——The relative humidity of non-insulated operating vehicle environment is ≤90% (ambient temperature is +25℃);
——The relative humidity of the insulating operating vehicle environment is ≤80% (ambient temperature is +25℃);
Note: If this requirement is exceeded, the customer needs to propose to the manufacturer, and the manufacturer will make special customization.
Chengli Special Automobile Co., Ltd. is the leading mnaufacturer and supplier of aerial working platform trucks in China since 2004s. We can design and produce 12m overhead working truck, 14m-16m aerial working platform truck, 18m-20m high altitude operation truck, 20m-22m aerial working truck, etc.More information, please feel free to contact with Ms. Anita Deng. The hot sale line is 0086 13329899995.
