Customized SHACMAN brand 6*4 LHD 14T telescopic crane boom mounted on cargo truck for sale, Good price SHACMAN brand cargo truck with crane boom for sale
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
Truck mounted crane is also called truck with crane, cargo truck with crane, flatbed truck with crane, lorry truck mounted crane, telescopic boom truck, telescopic truck mounted crane, crane truck, etc.
1. Optional crane truck brands: Dongfeng, SINOTRUK, HOWO, JAC, JMC, Foton, Forland, Hino, Iveco, YUEJIN, Isu zu, FAW, Shacman, Beiben, etc.
2. Driving type: 4x2, 4x4, 6x4, 6x6, 8x4 truck with crane, left hand drive or right hand drive.
3. Crane type: Straight / folding arm telescopic crane, 360-degree full rotation.
4. Optional crane capacity: 1 ton, 2 ton, 3.2 ton, 4 ton, 5 ton, 6.3 ton, 8 ton, 10 ton, 12 ton, 14 ton, 16 ton, 25 ton.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
HOT SALE! SHACMAN brand 6*4 LHD 14T cargo truck with crane boom adopts SHACMAN brand one row and a half driver cab, 6*4 LHD( left hand driving), WP10.340E22 340hp Euro 2 diesel engine, 5775+1400mm wheelbase, RTD-11509C 9 speed manualgearbox, MAN 7.5T front axle/16T MAN dual-grade rear axles, 400L oil tanker, 12.00R20 rail tires, etc.
Client choose to install CLW brand BALONG 14T telescopic crane boom, The loading capacity of 14T telescopic crane boom is 14,000kgs.The working height of the 14T telescopic crane boom is 17.4m; the working radius of the boom is 16.4m.
More pictures of SHACMAN brand 6*4 LHD 340hp diesel 14T telescopic crane boom mounted on cargo truck is as below

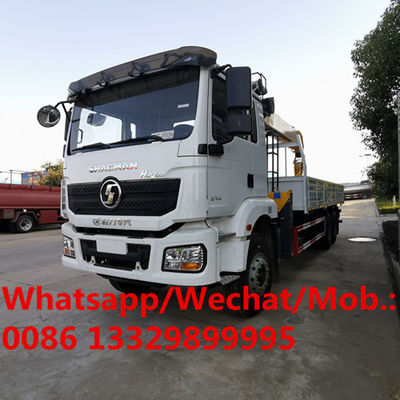

HOT SALE! 14T SHACMAN brand cargo truck with crane
high quality and best price SHACMAN 6*4 LHD 340hp diesel 14T cargo truck with crane for sale
The specification of SHACMAN brand 6*4 LHD 14tons telescopic crane boom mounted on truck as below
| Product name |
SHACMAN brand 6*4 LHD 14tons telescopic crane boom mounted on truck for sale |
| Chassis type |
SX1310 |
| Parameters |
Overall dimension length/width/height (mm) |
12000×2550×3920 |
| Cargo body dimension (L*W*H)(mm) |
8500×2450×600 |
| GVW(kg) |
25000 (Kg) |
| Kerb Mass(kg) |
14990 (Kg) |
| Rated mass(kg) |
9880,9815 (Kg) |
| Approach angle/ Departure angle(mm) |
16/9 (°) |
| Front suspension/rear suspension(mm) |
1525/3300 |
| Fuel Type |
diesel |
| Max Speed |
89 |
| Engine |
Type |
WP10.340E22 |
| Displacement/Power(kw) |
9726ml/250KW/340hp |
| Manufacturer |
WEICHAI |
| Chassis |
Drive Type |
6*4 |
| Wheelbase(mm) |
5775+1400 |
| Tread(front/rear) |
2011; 1860/1860 (mm) |
| Transmission |
RTD-11509C 9 speed manual gearbox |
| Braking system |
Air braking |
| Cab |
SHACMAN M3000 luxurious driver cab |
| Number of spring axle(front/rear) |
10/12 |
| Tire Type |
12.00R20 |
| Upper part(cargo van and crane boom) main parameters |
| Upper body |
Cargo body dimension |
8500×2450×600 |
| Material |
Carbon steel |
| Painting |
Upon request |
| Crane boom main parameters |
| Crane boom |
Choose to install CLW BALONG 14tons telescopic 5 sections knuckle crane boom |
| Max lifting height |
17.4m |
| Max Working radius |
16.4m |
| Installation space |
1.4m |
| Crane mass |
4800kgs |
| The color of the whole truck is upon request. Choose to install double rear ladders. |
