The bulk feed truck body consists of horizontal auger, vertical screw conveyor, lifting screw conveyor, hydraulic push rod, electric control part and box.
- Top-loading brand motor, complete high quality Electric control system; electronic phase interlock protection such as under-phase, under-voltage and anti-reverse.
-
- The tank can be divided into 2-5 boxes, so that it can be unloaded separately, that is, one car can transport a variety of feeds, and it can be controlled at will. The binning mechanism adjusts the control, and can control the opening degree at will, and accurately control the unloading speed.
-
- The size and tonnage of the tank can be used as the chassis of the car according to the existing idle vehicles of the customer or the local agricultural vehicle. The special conditions such as the discharge level of the feed mill and the height of the tower can be customized according to the actual situation.
-
- The loading capacity is based on the volume of the tank. The actual loading will vary depending on the type of feed.
If you're interested in our bulk feed transported truck, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.
Main technical parameters of SHACMAN L3000 22cbm livestock poultry feed pellet truck as below.
| Item |
Unit |
Parameters |
| Product name |
|
Shacman Brand Livestock poultry feed pellet truck for sale |
| Truck model |
|
CLW5188ZSLS3 |
| Chassis model |
|
SX1181 |
| Engine model |
|
WP6.210E32 210hp diesel engine |
| Rated power |
KW |
155KW/210hp |
| Emission standard |
|
Euro 2 |
| Driver cab seated person |
人 |
3 |
| Mass |
Total mass |
kg |
18000 |
| Rated mass |
9385 |
| Curb mass |
8420 |
| Overall dimension(L*W*H) |
mm |
9000×2500×3800 |
| Feed container dimension(L*W*H) |
6100×2490×2000 |
| Wheelbase |
5000 |
| Approach/departure angle |
° |
23/16 |
| Max speed |
km/h |
95 |
| Tire specification |
10.00R20 |
| Volume |
M3 |
20 |
SHACMAN brand 4*2 LHD diesel 10T-12T chicken feed transported truck, adopts SHACMAN brand L3000 one row and a half luxurious driver cab, 5000mm wheelbase, WP6.210E32 210HP EURO 2 diesel engine, 8JS85T 8 speed gearbox, 4.8T front axle/10T rear axle, 10.00R20 rail tires, 200L steel oil tanker, etc.
The Volume of SHACMAN L3000 4*2 LHD 210hp diesel Euro Ⅴ bulk feed truck is 22cbm, adopts high quality 4mm thickness. There are 4 sets of augers, 3 sets 5.5KW electronic motors to driving. The top auger hydraulically controls the up-down, left-right rotation. There are two compartments for two different feed pellets, separately controlled the discharging sequence and discharging speed. The sloping angle of the sloping pipe is 60°. Vertical discharging height is 8.5m. And the full discharging time is 20minutes.

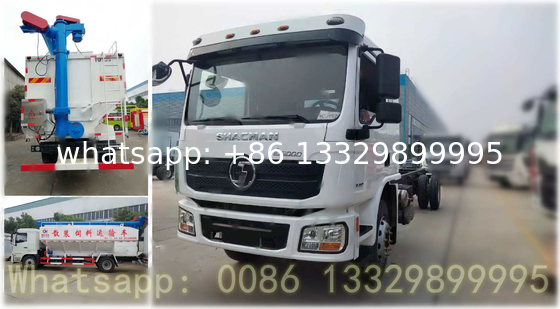

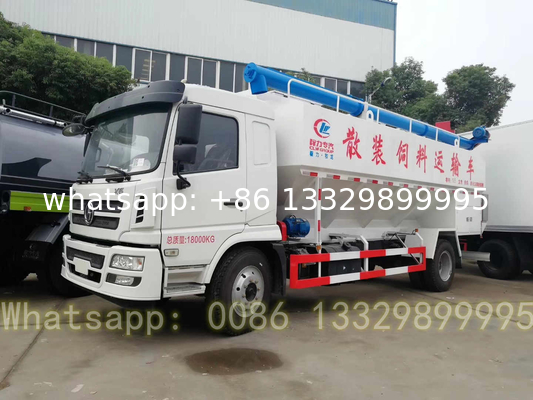

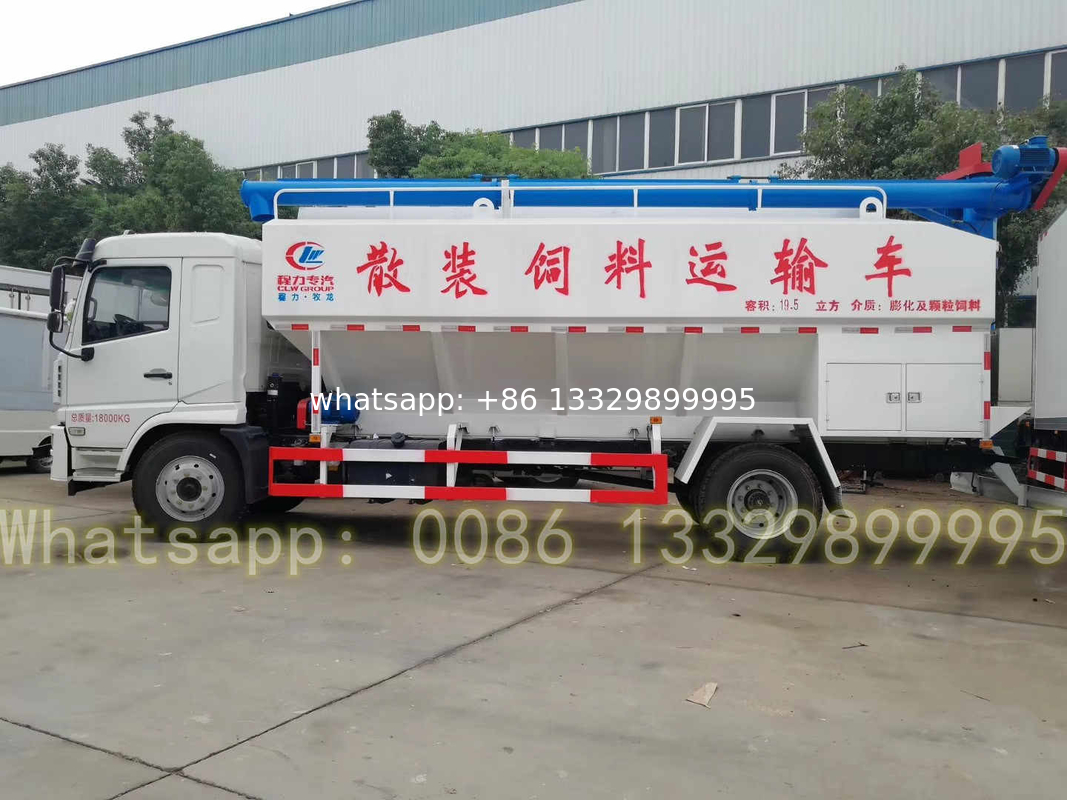

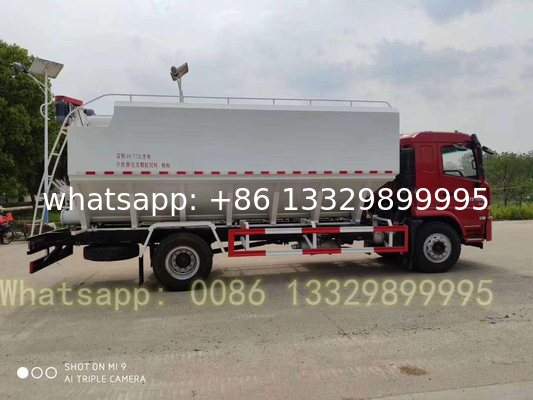

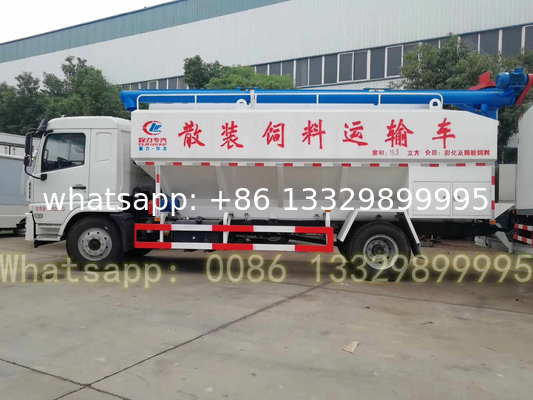

More pictures of SHACMAN brand 4*2 LHD 210hp diesel Euro 2 chicken feed container vehicle manufactured by Chengli Special Automobile Co., Ltd. is as below.
HOT SALE! SHACMAN brand 22cbm BULK FEED TRUCK for sale
The bulk feed truck body consists of horizontal auger, vertical screw conveyor, lifting screw conveyor, hydraulic push rod, electric control part and box.
- top-loading brand motor, complete high quality Electric control system; electronic phase interlock protection such as under-phase, under-voltage and anti-reverse.
- The tank can be divided into 2-5 boxes, so that it can be unloaded separately, that is, one car can transport a variety of feeds, and it can be controlled at will. The binning mechanism adjusts the control, and can control the opening degree at will, and accurately control the unloading speed.
- The size and tonnage of the tank can be used as the chassis of the car according to the existing idle vehicles of the customer or the local agricultural vehicle. The special conditions such as the discharge level of the feed mill and the height of the tower can be customized according to the actual situation.
- The loading capacity is based on the volume of the tank. The actual loading will vary depending on the type of feed.
