HOT SALE!sinotruck howo 3.2T straight arm truck crane 3.2Ton HOWO smaller telescopic crane boom on cargo truck for sale
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
| [Main specifications] |
| Product model,name |
sinotruck howo 3.2T straight arm truck crane 3.2Ton telescopic arm mini howo crane truck for sale |
| Gross vehicle weight(kg) |
11495 |
Drive type |
4 x 2 |
| Payload(kg) |
5970 |
cab seats (man) |
3 |
| Curb weight(Kg) |
5330 |
Overall dimension (mm) |
7050*2420*3150 |
| Number of axles |
2 |
Box internal dimension(mm) |
4000*2050*500 |
| Axle load(Kg) |
4050/7445 |
Wheelbase(mm) |
3360 |
| [Chassis specifications] |
| Chassis model |
ZZ1047D |
Brand name |
SINOTRUCK HOWO |
| Fuel type |
Diesel |
Tyres No. |
6 |
| Emission standard |
Euro III |
Tyre specification |
7.50R16 |
| Transmission |
5 forward gears, 1 reverse gear |
Front track(mm) |
1831 |
| |
|
Rear track(mm) |
1640 |
| Cabin |
Flat single cab, tiltable luxurious interior trim, seat,with power steering.
Air condition can be equiped if customer requires.
|
| Engine model |
Engine manufacturer |
Displacement(ml) |
Power(hp) |
| YN4102QBZL |
YunNei Engine |
3856 |
116hp |
| [Crane specification] |
| Crane model |
SQS68 |
Crane brand |
XCMG/BaLong |
| Type of Crane |
Telescopic boom |
Crane weight (kg) |
1250 |
| Max lifting weight(Ton) |
3.2 |
Max lift height(m) |
9.5m |
| Working radius(m) |
7.5 |
Operation method |
floor operation |
| Number of arms |
3 |
Outrigger (pcs) |
2 |
| [Functions] |
| The truck consists of chassis, box, power take-off and crane, achieving cargo lifting and moving through hydraulic lifting and telescopic system. In general, H-type outrigger is equipped to realize its stability. To be further strengthened stability of the truck, rear outrigger also can be equipped if the customer require. The truck can 360 ° continuously rotate. |
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp: 0086 13329899995.

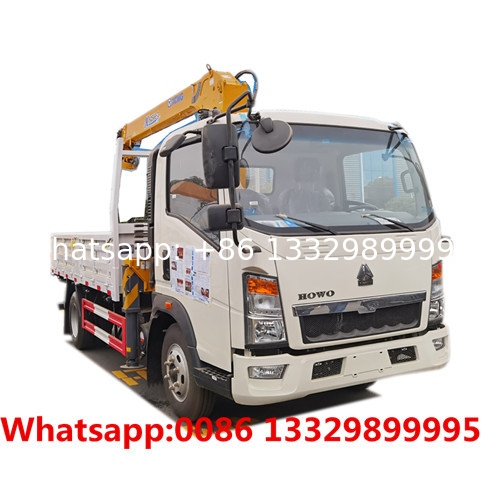

More pictures of SINO TRUK HOWO 3.2T mobile truck with crane is as below.
