Euro 2 howo 6*4 dump truck, HOWO 6*4 336hp 25ton tipper truck, tipper truck for sale
HOWO 336hp dump truck, adopts HOWO original truck chassis, 3425+1350(mm) wheelbase, 9ton front axle/10ton rear wheel reduce axle, HOWO 10 speed transmission, Euro 2 336hp diesel engine, etc.
The overall dimension of HOWO dump truck is 7835×2496×3170(mm) , and the tipper van dimension is 5200×2300×1200(mm) , middle lifting cylinder tipping, etc.
If you're interested in our FOTON dump tipper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Detailed information of HOWO Euro 2 dump truck as below.
|
Main parameters
|
|
HOWO 6*4 Euro 2 25ton tipper truck
|
|
Overall dimension
|
7835×2496×3170(mm)
|
Cargo body dimension
|
5200×2300×1200(mm)
|
|
Total mass
|
25000(Kg)
|
Rated mass
|
12650,12480(Kg)
|
|
Curb mass
|
12220,12390(Kg)
|
Seating person
|
2
|
|
Driver cab
|
HOWO driver cab
|
Front/rear suspens
|
1500/1560(mm)
|
|
Approach/departure angle
|
19/30(°)
|
Wheelbase(mm)
|
3425+1350(mm)
|
|
Axle load(kg)
|
7000/18000(double axles)
|
Max speed(km/h)
|
75(km/h)
|
|
Axle nos.
|
3
|
Steel spring
|
10/12
|
|
Tyre nos.
|
10
|
Tyre
|
12.00R20
|
|
Front tread
|
2022,2041
|
Rear tread:
|
1830/1830
|
|
Steering
|
Power steering
|
Gearbox
|
HOWO 10 speed transmission
|
|
Front Axle
|
9ton
|
Rear axle
|
10ton wheel reducer rear axles
|
|
Engine
|
|
Engine model
|
Manufacturer
|
Displacement (ml)
|
Power (kw)
|
|
WD615.69
|
SINO TRUK
|
9726
|
247
|
|
Engine type
|
4 strokes in line, 6 cylinders, inter-cooling, direct injection
|
|
Fuel type
|
Diesel
|
Emission standard
|
Euro 2
|
|
Cargo body van main parameters
|
|
Cargo body dimension(L*W*H)(mm)
|
5200×2300×1200(mm)
|
|
Material
|
High quality carbon steel
|
|
Thickness (mm)
|
6mm thickness for side sheet and 8mm thickness for bottom sheet
|
|
Cylinders
|
High quality Double middle cylinders for middle lifting
|
|
Door
|
Rear door tipping
|

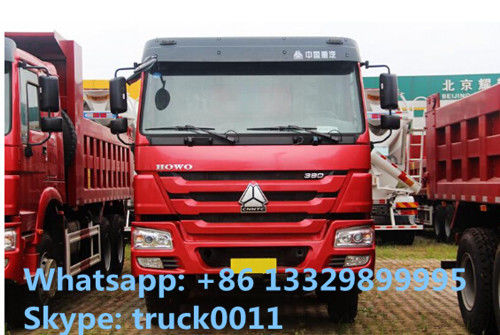

More pictures of HOWO 336hp dump tipper truck as below.
best price HOWO dump truck for sale
SINO TRUK HOWO RHD 40tons dump tipper truck for sale
Dump truck is also called as tipper truck or engineering truck, which consist of chassis, hydraulic lifting mechanism, cargo. It can be divided into light duty series, medium duty series, heavy duty series. And it’s widely used in engineering, road construction, sanitation, mines, lime kilns, stones factory, cement stash factory, phosphate fertilizer plant, etc. it can save manpower and reduce labor intensity.
Equipment: the truck is adopted with optimized design hydraulic system and lifting mechanism. It’s lifting is smooth and powerful. The tipper dumping mechanism is using push to enlarge the structure by the former, former top cylinder and middle double cylinder.
1. dump truck adopt with the original maturity chassis to refit.
2. the cargo is made of high quality carbon steel. The cargo thickness can be 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc. it’s made in accordance with international standards of manufacturing.
3. the shape can be square bucket, U-shape bucket.
