ASME standard 3 Axle lpg gas tank trailer for sale, BPW/FUWA 3 axles 56m3 bulk road transported lpg gas tank trailer for sale
- Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China, is a big manufactureeer producingall kinds of special trucks and semi-trailer.
- Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW,SINOTRUK, JAC, SHEMAN, FOTONand etc. We can produce more than 300 kinds of special trucks and semi-trailer.
- Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell toAfrica, South-east Aisa, Australia, Middle-eastand other place.
- We serve the best service for each client
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Technique Parameters of 25tons bulk lpg gas trailer manufactured by Chengli Special Automobile Co., Ltd. as below
|
Dimension
|
|
Tare Weight
|
15000KGS
|
|
Pay Load
|
25000KGS
|
|
Overall Length
|
13000mm
|
|
Overall Width
|
2500mm
|
|
Photo for reference, finial product can be made according to exact requirements
|
|
Tank
|
|
Transporting Media
|
Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
|
|
Shape
|
Round Shape
|
|
Total Volume(m3)
|
59.52CBM
|
|
Tanker Body Steel Sheet
|
Q235A/14mm
|
|
End plate
|
Q235A14mm, by punching
|
|
Parts for Tank
|
|
Manhole cover
|
3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
|
|
Unloading valve
|
2-3 sets of DN80 fixed at button of Tank
|
|
Pipeline at button of tank
|
4”seamless steel tube/Q235
|
|
Labeling system
|
Oil Type Indication
|
|
Anti-static electricity system
|
pulling, wire carrier, sheet copper (6 sheet-standard layout)
|
|
Other Parts
|
|
Ladder
|
1 unit at front of Tank
|
|
Guard on top of Tank
|
Zinc galvanized –guard-net
|
|
Oil hose box
|
Circular single hole tube, 1 unit on each side
|
|
Oil hose
|
2 unit, 3” x 6m size in black rubber
|
|
Side guard
|
cross bar-structure
|
|
Rear button guard
|
Fixed type
|
|
Work tank deck
|
Box type
|
|
Fire extinguisher box
|
2 unit at the back of each side
|
|
Mud guard
|
Steel structure in trapezoid form
|
|
Lights and wire
|
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
|
|
Chassis
|
|
Main Beams
|
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
|
|
Axle
|
3 axle
|
|
BPW brand FUWA brand
|
|
Landing Gear
|
JOST Two-speed, manual operating, heavy duty landing gear
|
|
King Pin
|
JOST 2”standard bolt-in king pin
|
|
Suspension
|
German design mechanical suspension
|
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
|
|
Wheel rim
|
8.25R22.5 wheel rim
|
|
Tire
|
11R22.5 tubeless tire with one spare tire
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
More information, please feel free to contact with us.
Mob.: +86 13886878855
skype: truck0011
QQ: 504873236
Whatsapp: +86 13329899995

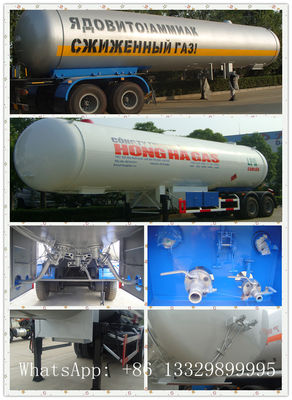

More pictures of hot sale CLW brand 25tons bulk lpg gas trailer manufactured by Chengli Special Automobile Co., Ltd. as below
25tons bulk lpg gas trailer for sale
factory direct sale 25metric tons propane gas tank trailer
lpg gas trailer with sunshield for sale
