factory direct sale 2 axles 17ton lpg gas tank semitrailer, 17MT ASME standard cooking gas tank semitrailer for sale
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
The data above is for your reference, we reserve the right of technical alteration/change for better improvement without prior notice. The detail is line with the contract.
The LPG tanker semi-trailer manufactured by Chengli Special Automobile Co., Ltd. is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>. We can also manufacture ASME standard lpg gas trailer, lpg gas tank, lpg gas truck, skid lpg gas filling plant, etc. And we can design and produce lpg gas pressure vessels customized.
More information, please feel free to contact Ms. Anita. Email: truck0011@163.com; whatsapp/wechat: +86 13329899995.
The main technical parameters of 17metric tons bulk lpg gas tank semitrailer as below
|
Dimension
|
|
Tare Weight
|
13415KGS
|
|
Pay Load
|
17010KGS
|
|
Overall Length
|
11324mm
|
|
Overall Width
|
2500mm
|
|

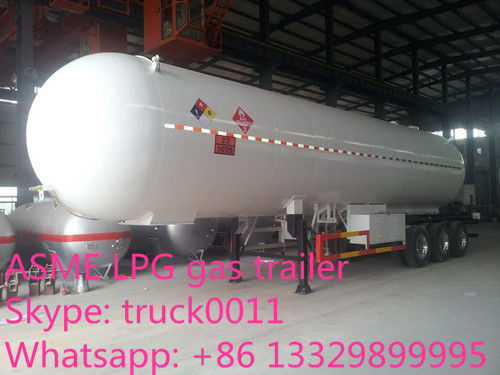

Photo for reference, finial product can be made according to exact requirements
|
|
Tank
|
|
Transporting Media
|
Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
|
|
Shape
|
Round Shape
|
|
Total Volume(m3)
|
40.5CBM
|
|
Tanker Body Steel Sheet
|
Q235A/14mm
|
|
End plate
|
Q235A14mm, by punching
|
|
Parts for Tank
|
|
Manhole cover
|
3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
|
|
Unloading valve
|
2-3 sets of DN80 fixed at button of Tank
|
|
Pipeline at button of tank
|
4”seamless steel tube/Q235
|
|
Labeling system
|
Oil Type Indication
|
|
Anti-static electricity system
|
pulling, wire carrier, sheet copper (6 sheet-standard layout)
|
|
Other Parts
|
|
Ladder
|
1 unit at front of Tank
|
|
Guard on top of Tank
|
Zinc galvanized –guard-net
|
|
Oil hose box
|
Circular single hole tube, 1 unit on each side
|
|
Oil hose
|
2 unit, 3” x 6m size in black rubber
|
|
Side guard
|
cross bar-structure
|
|
Rear button guard
|
Fixed type
|
|
Work tank deck
|
Box type
|
|
Fire extinguisher box
|
2 unit at the back of each side
|
|
Mud guard
|
Steel structure in trapezoid form
|
|
Lights and wire
|
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
|
|
Chassis
|
|
Main Beams
|
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
|
|
Axle
|
3 axle
|
|
BPW brand FUWA brand
|
|
Landing Gear
|
JOST Two-speed, manual operating, heavy duty landing gear
|
|
King Pin
|
JOST 2”standard bolt-in king pin
|
|
Suspension
|
German design mechanical suspension
|
|
Pneumatic Braking System
|
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
|
|
Wheel rim
|
8.25R22.5 wheel rim
|
|
Tire
|
11R22.5 tubeless tire with one spare tire
|
|
Painting
|
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
|
More pictures of hot sale 2 axles 17tons bulk propane gas tank trailer as below .
best price 17tons bulk propane gas tank trailer for sale
CLW brand 2 axles BPW 40500L lpg gas tank trailer for sale
