factory price new brand 59.52m3 lpg gas propane tanker trailer for sale, hot sale 59520L bulk cooking gas transported tank trailer
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years' development, Chengli Special Automobile Co., Ltd. could design and manufacture surface lpg gas storage tank, underground lpg gas storage tank, lpg gas trailer, lpg gas delivery truck, lpg gas dispensing truck, skid lpg gas filling plant, etc. And CLW lpg gas pressure vessels have been exported to many countries all over the world, such as Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in our CLW brand lpg gas tank trailer, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
The main parameters of hot sale 59.52m3 3 axles lpg gas tank semitrailer manufactured Chengli Speical Automobile Co., Ltd. as below
|
59.52cbm 3 axle LPG tanker semi-trailer for propane main parameters
|
|
More information, please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
|
|
59.52cbm 3 axle LPG tanker semi-trailer for propane main parameters
|
|
Total mass(kg)
|
40000
|
Curb mass(kg)
|
15000
|
|
Rated mass(kg)
|
25000
|
Chassis model
|
|
|
Driver cab
|
|
The bearing mass of semitrailer saddle (kg)
|
16000
|
|
Approach/departure angle(°)
|
-/20
|
Front/rear suspension
|
-/1540
|
|
Overall dimension(mm)
|
13000X2500X3990
|
Cargo body dimension(mm)
|
XX
|
|
Axles
|
3
|
Axle load
|
-/24000(three axles)
|
|
Wheelbase(mm)
|
7230+1310+1310
|
Springs
|
-/7/7/7
|
|
Others
|
The tank volume is 59.52cbm. The tanker material adopts Q370R. The propane design pressure is 1.61Mpa, the test pressure is 2.1Mpa, designed temperature is 50 degree, filling volume is 0.42ton/cbm, and corrosion allowance is 1mm. The tanker thickness is 11.5mm, two ellipse heads (12mm thick). The loading medium is LPG (Propane), the medium density is 442kg/m3. And the tanker will be with the Flammable and explosive identification.
The standard devices of the 59.52cbm LPG tank semitrailer for propane are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges (FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
|
|
Function introduction
|
“CLW” brand LPG storage tanker semitrailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc.
All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998<steel pressure vessel>, <Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car>.
|
|
More information of the LPG tanker semi-trailer, please contact Anita Deng.
|

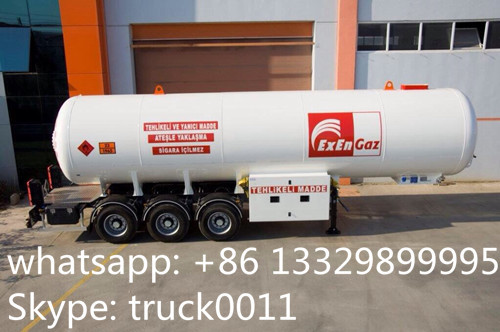

More pictures of hot sale 25tons bulk propane gas trailer manufactured by Chengli Special Automobile Co., Ltd. as below
hot sale 25tons bulk lpg gas trailer
best price 25tons cooking gas tank trailer for sale
More information, please feel free to contact with Ms. Anita Deng.
