|Place of Origin:||China|
|Brand Name:||CLW brand|
|Certification:||US ASME standard or ISO 9001|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||in bulk package|
|Delivery Time:||35 days|
|Supply Ability:||20 units/month|
|Color:||Different Clor Upon Request||Material:||High Q345R Material For Lpg Gas Pressure Vessels|
|Price:||Factory Direct Sale, Best Price With High Quality||Manufacturing Standard:||We Can Customize Lpg Gas Pressure Vessels In Line With US ASME Standard Or ISO9001 Standard|
hot sale ASME standard 49600L 3 axles lpg gas trailer for sale, 49.6cbm lpg gas propane tank semitrailer for sale
We, Chengli Special Automobile Co.,Ltd is a professional special vehicle manufacturer in China. We are a real lpg gas tanker semi trailer, lpg tank truck, lpg storage tank factory.
The lpg storage tank we produce is from 25m3 to 100m3
Our lpg tank is 100% x-ray test and export over all the world. The semi-trailer axles can be fuwa axle, BPW axle,etc. The tyres can be steel wire tyre, tubeless tire, Nylon tyre. The landing leg of our semi-trailer can be Jost landing legs, fuwa langing leg,etc. The kingpin diameter of our semi-trailer can be 90mm or 50mm.
We also customize the semi-trailer lift axle air suspension, trailer suspension leaf springs.More information, please feel free to send email to firstname.lastname@example.org or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Main parameters of 49.6m3 bulk lpg gas tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below
|Loading medium||LPG gas||Medium characteristic||flammable and combustible||Safety valve||2*DN80|
|Curb mass (kg)||15,300||Tanker||Designed pressure(Mpa)||1.61MPa||
GB/T19905-2005 <<Liquefied Gas Tank Car>>
|Loading mass(kg)||20,832||Filling ratio(kg/cbm)||420|
|Max total mass (kg)||36,132||Tanker material||Q345R|
|Wheelbase(mm)||6800+1310+1310||Tanker designed thickness(mm)||11.05|
|Front/rear suspension(mm)||-/1650||Head designed thickness(mm)||11.03|
|Overall dimension(L*W*H)(mm)||12740×2480×3800||Tanker body dimension(L*W*H)(mm)||2300*12*12,372||Chengli Special Automobile Co., Ltd.|
49.6cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.

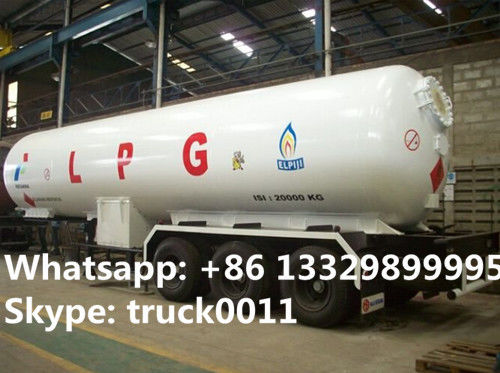

Pictures of 3 axles lpg tanker semi trailer for sale
we have the biggest LPG tank trailer and LPG truck in the world:
1. we have the biggest LPG tank trailer in the world, the valid volume is 59.6cbm; low transport costs, more profit.
2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 10cbm to 100cbm. both on the floor ones and in the ground ones.
bulk lpg gas tank semitrailer with sunshield cover for sale
Advantages of lpg tanker trailers for sale
1. Anti-corrosion coating surface treatment are used sand-blasting, painting, sweeping and other advanced technology.
2. High-quality domestic and imported the security annex to be selected, comprehensive
3. Strictly to science and advanced construction technology, to ensure the lowest in the low temperature contraction rate, the high
4. Rigorous quality testing: A, B Class 100% weld ray detection, II level qualified. C, D Class weld 100% magnetic particle testing, I-level qualified
5. We also can produce according to customer needs for a variety of chassis converted to ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, butane, iso-butane, butene, isobutylene, butadiene , ethylene oxide, and most gas vehicle
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wehcat: +86 13329899995
