CLW brand 24.5tons bulk lpg gas tank trailer for sale, factory sale ASME standard lpg gas propane tanker trailer
1)Designing pressure: 1.95MPa Designing temperature: -20C-50C
2)The various typespropenetanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating ofpropenetanker adopt the following process, sandblast, spray painting, purging and so on.
More information,please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
Detaield information of 24.5ton lpg gas trailer, factory sale 24,500kg liquefied petroleum gas trailer for sale,
|
Loading medium
|
LPG gas
|
Medium characteristic
|
flammable and combustible
|
Safety valve
|
1*DN100
|
|
Curb mass (kg)
|
15430
|
Tanker
|
Designed pressure(Mpa)
|
1.61MPa
|
Designed standard
GB150-2011<<pressure vessels>>
GB/T19905-2005 <<Liquefied Gas Tank Car>>
|
|
Loading mass(kg)
|
24570
|
Filling ratio(kg/cbm)
|
420
|
|
Max total mass (kg)
|
40000
|
Tanker material
|
Q345R
|
|
Wheelbase(mm)
|
7092+1310+1310
|
Tanker designed thickness(mm)
|
11.80
|
|
Front/rear suspension(mm)
|
-/1500
|
Head designed thickness(mm)
|
11.76/6.39
|
|
Overall dimension(L*W*H)(mm)
|
13000×2500×3977
|
Tanker body dimension(L*W*H)(mm)
|
2475*12*12840
|
Chengli Special Automobile Co., Ltd.
|
58.5cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.

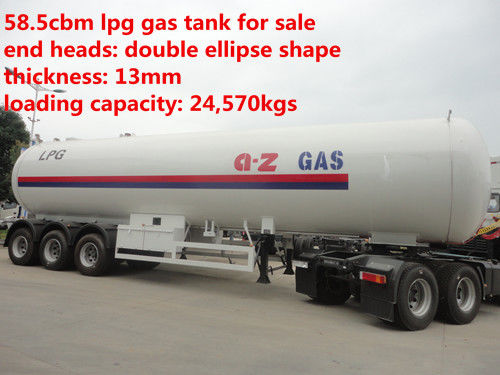

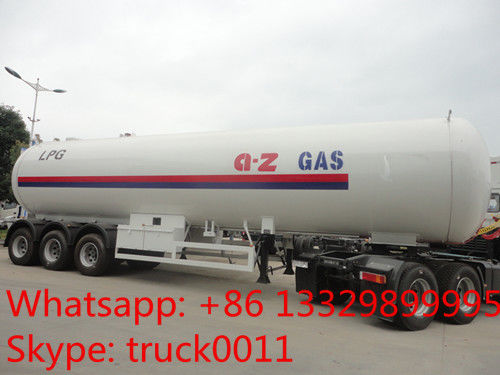

More pictures of 24.5ton lpg gas propane gas trailer as below.
CLW brand 24.5metric tons bulk lpg gas trailer for sale
HOT SALE! China best price road transported lpg gas trailer
More information, please feel free to contact with Ms. Anita Deng.
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas pressure vessels, such as lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, lpg gas tank, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita.
