dongfeng 4*2 LHD 120hp Euro 4 street sweeper truck for sale,best price factory sale road vacuum sweeping vehicle
road sweeper trucks manufactured are with 4 sets of sweeping brushes, Cummins auxiliary engine, Italian imported motor, Schneider Electric switches, Taiwan Solenoid valves, maintenance-free and self-disconnect type clutch, maintenance-free fan, stainless steel water tank, stainless steel wastes van, rear part LED arrow lamp, manual portable pump Emergency system, seamless cold-rolled steel hydraulic oil tubes for precision applications, etc.
The rotation mechanism of the front sweeper arm adopts high-tech rear-resistant work spacer sleeve, without buttering, precise cold-bending seamless hydraulic oil pipes, etc.
If you're interested in our sweeper truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale dongfeng road vacuum sweeping vehicle as below
|
Truck Specification
|
|
Chassis model
|
CLW5080TSLD4/DFA1080SJ12D3
|
|
Cab
|
Dongfeng single row cab, with power steering. Electronic flameout,without a/c
|
|
Driving Type
|
4*2 Left hand driving
|
|
Max Speed (km/h)
|
99
|
|
Maximum climbing angle
|
30%
|
|
Overall dimension(mm)
|
6700*2290*2500
|
|
GVW( kg)
|
8275
|
|
Mass in working order ( kg)
|
5700
|
|
Wheelbase(mm)
|
3800
|
|
F/R track base (mm)
|
1770/1586
|
|
F/R overhang (mm)
|
12105/1690
|
|
Approach/Departure Angel
|
24/16
|
|
Tire
|
7.50-16 (6+1)
|
|
Clutch
|
Single-plate dry diaphragm spring clutch
|
|
Steering
|
Hydraulic steering with power assistance
|
|
Gear box
|
5-speed
|
|
Bridge
|
Front axle
|
2.4T
|
|
Rear axle
|
4.2T
|
|
Enging
|
Model
|
YC4E140-42
|
|
Fuel Type
|
Diesel fuel
|
|
Type
|
Water-cooled four-stroke,, direct injection, turbocharged
|
|
Exhaust(ml)
|
4260
|
|
Max output power/rotate speed (hp /rpm )
|
140/2600
|
|
Max torque/rotate speed(N.m/rpm)
|
430/1300-1600
|
|
Braking system
|
Service Brake
|
Compressed air brake
|
|
Park Brake
|
Spring energy
|
|
Auxiliary brake
|
engine exhaust brake
|
|
Eletric system
|
24v
|
|
Upper-Body specification
|
|
Vice generator
|
|
Model
|
JX493-G3
|
|
Rated power (kw)
|
57
|
|
Suction sweep operation
|
|
Cleaning efficiency
|
≥95%
|
|
The maximum diameter of the suction body(mm)
|
120
|
|
Suction sweep width(mm)
|
2.8-3.2
|
|
Maximum cleaning power (m2/h)
|
60000
|
|
Butterfly dish brush overhang dimension(mm)
|
≥400
|
|
Working speed (km/h)
|
3-20
|
|
Water tank body
|
|
Rated capacity (m3)
|
1.0-2.0
|
|
Garbage tank body
|
|
|
Rated capacity(m3)
|
4.5-5
|
|
Discharge door opening angle
|
≥45º
|
|
Hydraulic system
|
|
Model
|
Open, electrical control
|
|
The main element
|
Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valve
|
|
Pressure (mpa)
|
16
|
|
Hydraulic oil tank capacity (l)
|
60
|
|
Hydraulic oil temperature (ºC)
|
60
|
|
Electrical system
|
|
Model
|
DC24V
|
|
voltage
|
24V
|
|
Battery
|
24V(2 set 12 v battery series connection )
|
|
Sprinkle system
|
|
The main elements
|
Electric diaphragm pump, water filters, nozzles, etc.
|
|
Sweeper disk device
|
|
Model
|
Center four sweeper disk, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function
|
|
Diameter (mm)
|
850
|
|
Angel
|
Forward 4-6º roll 4-7º
|
|
Sucker device
|
|
Model
|
Single suction port, hydraulically controlled, spring suspension.
|
|
Diameter (mm)
|
200
|

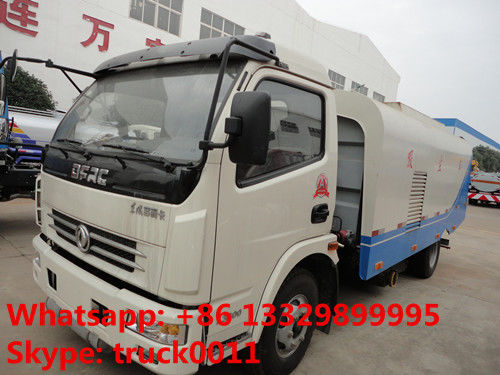

2,PICTURE FOR REFERENCE
