10,000L skid steel gas cylinder refilling plant for sale, skid lpg gas filling station for lpg gas cylinders bottles
The skid mobile lpg gas propane station is mainly included bulk lpg gas tank, lpg gas pump, cut-off valve, motor, lpg gas disperser machine, filling scale, safety valve, etc.
This kind of integrative skid lpg gas filling station finishing discharging and filling by the pressure inside the tanker, and the working principles similar to the big size lpg gas filling station at home. The layouts of pipelines, such as inlet, outlet and gas phrase, etc. are reasonable, Practical, and artistic, etc.
If you're interested in our skid lpg gas station, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The main parameters of hot sale 10m3 skid lpg gas plant as below
|
10 CBM LPG SKID STATION DIMENSIONS
|
|
Volume of Tank
|
10 CBM
|
|
Filling Weight
|
4000 kg
|
|
Tank Weight
|
2950 kg
|
|
Thickness of Shell (mm)
|
10 mm
|
|
Thickness of Endplate (mm)
|
10 mm
|
|
Tank Diameter (mm)
|
1600 mm
|
|
External Dimensions (mm) (length x width x height)
|
6000x 1620 x 2910 mm
|
|
Material of Tank and Main Pressure Parts
|
Carbon Steel Q345R
|
|
Filling Medium
|
Liquefied Petroleum Gas ( Propane)
|
|
Design Pressure
|
1.77 MPa
|
|
Corrosion Allowance
|
1 mm
|
|
Medium Density
|
420 kg/ cbm
|
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China.
|
|
Main parts of LPG Tank
|
|
Item
|
Specification
|
Quantity
|
|
Discharge Pipe
|
DN50
|
1
|
|
Inflow Pipe
|
DN50
|
1
|
|
Outlet
|
DN50
|
1
|
|
Gas phase balance pipes
|
DN50
|
2
|
|
Manhole
|
DN450
|
1
|
|
Drain Hole
|
DN50
|
1
|
|
Electronic LPG Filling Machine
|
Can fill 0.5kg to 150kg gas cylinder
with receipt printing
|
1
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter,
Pressure gauge, Temperature Gauge.
Skid Parts List will be show in separated page below.
|
| |
|
|
|
more pictures of hot sale skid lpg gas plant as below

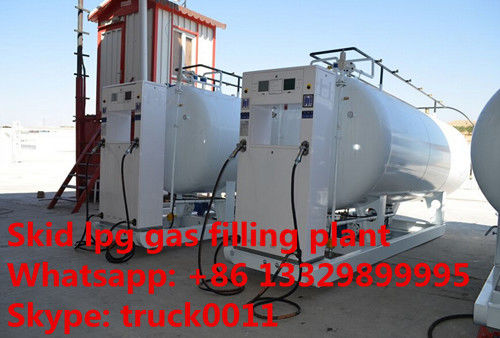

skid lpg gas refilling station for sale

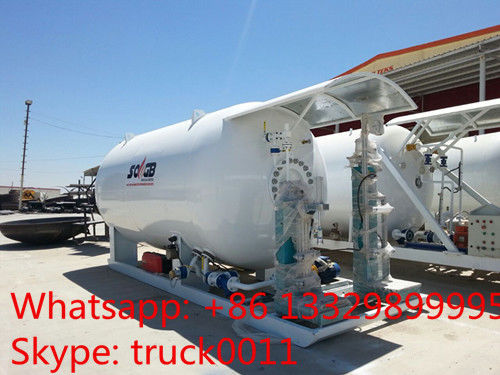

Best price high quality skid lpg gas plant for sale
10,000L skid lpg gas filling station for gas cylinders bottles
