dongfeng tianjin 4*2 LHD Cummins 170hp/190hp diesel refrigerated truck for sale, hot sale competitive price and high quality dongfeng tianjin LHD 10tons cold room truck
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated truck, refrigerator truck, insulation body truck, reefer van truck, freezer van truck, etc. in China. With many years'experience in developing, Chengli Special Automobile Co., Ltd. could produce and supply high quality and competitive ISUZU refrigerated truck, dongfeng refrigerator truck, FAW freezer van truck, Foton reefer van truck, JAC insulation body truck, JMC refrigerated truck, refrigerated van semitrailer, etc. And the cooling units of the refrigerated truck manufactured by Chengli Special Automobile Co., Ltd. can choose China faous brand or exported ones, and the temperature in the insulation body can be adjusted from -5 degree to -18 degree.
The interior and exterior of the insulation body can be chosen the popular glass steel material, or stainless steel, aluminum alloy material, and the insulation van with strengthen, etc. the middle is PU slices with vacuum negative pressure one-formed casting, and the thickness is 80mm, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. The refrigerated van has the advantages of high strength; strong anti-corrosion and aging resistance, low heat-conducting property, non-pollution, non-easy destroy, etc. And the baseboard is aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. There are aluminum alloy ventilation slots on the baseboard. The frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. The door edgings frames are sealed with the imported high quality epdm rubber, making sure the van insulation stability. Door edgings, door locks and accessories use stainless steel materials.
If you're interested in our refrigerated truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
The main technical parameters of dongfeng tianjin refrigerated truck as below
| Specification |
| Truck |
Drive mode |
4×2 |
| Chassis |
dongfeng tianjin 4*2 LHD |
| Engine |
Model |
B170 33/B190 33 |
| Type |
4-cylinder in line, turbocharging, electrical control common-rail engine |
| Max. power(Kw/rpm) |
136/2500 |
| Max. torque(Kw/rpm) |
650/1200-1700 |
| Bore /Stroke(mm) |
107×124 |
| Displacement(ml) |
4500 |
| Type of fuel |
Diesel |
| Compression ratio |
17.3:1 |
| Dimensions |
Overall dimension (mm) |
8700*2490*3850 |
| Wheel base (mm) |
5600 |
| Front/Rear tread(mm) |
1880/1800 |
| App./Dep. angel (°) |
20/9 |
| Performance |
Max. speed(Km/h) |
110 |
| Mass |
Payload (Kg) |
7650 |
| Curb weight(Kg) |
4850 |
| G.V.W (Kg) |
12500 |
| Special functions |
Specifications |
insulation body dimension (mm) |
6100×2280×2300 |
| Refrigerant |
404A |
| Min. temperature(°C) |
-15 |
| Inside and outside of van's material |
FRP(Fiber Reinforced Plastics) |
| Middle of van's material |
Polyurethane |
| Insulation layer |
Under 120kPa high pressure,overall foam |
| Rear doorpost |
stainless steel |
| ventilation opening |
yes |
| Special configuration |
adopt to Korea's HT-500 non-independent unit |
More pictures of hot sale dongfeng tianjin 10tons cold room truck as below.

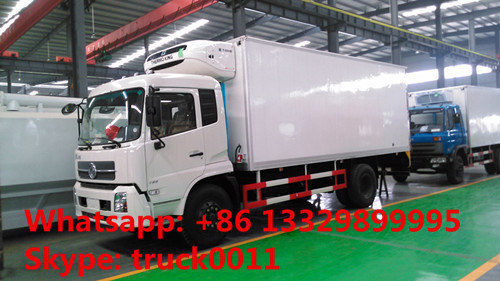

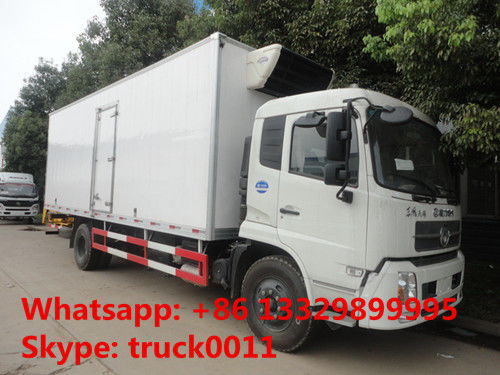

dongfeng tianjin brand 4*2 refrigerated truck for sale

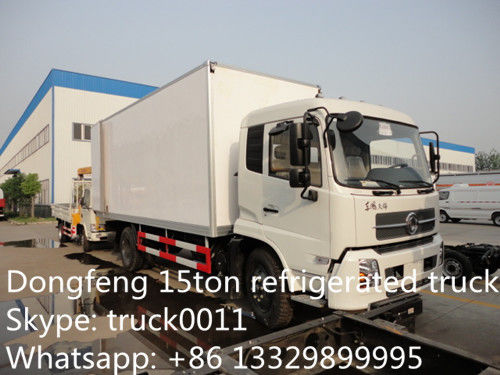

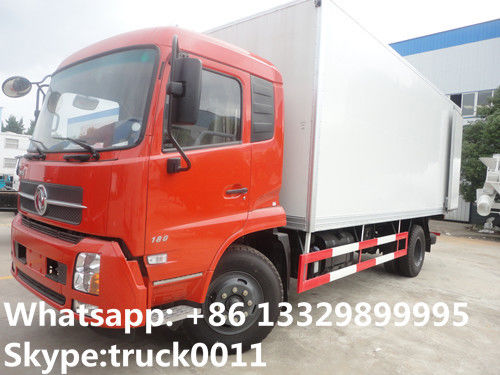

dongfeng 10tons cold room truck for sale

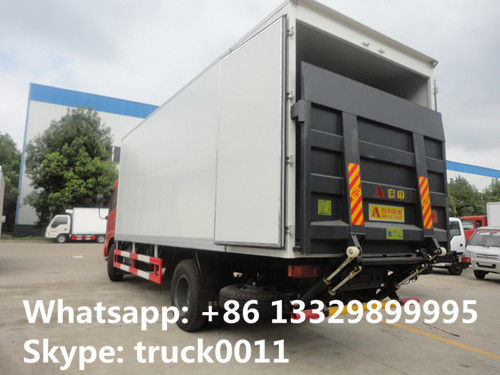

dongfeng refrigerator truck with hydraulic tail plate for sale
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc.More information, please feel free to contact with Ms. Anita.
